Specifications
china cheap radlader zl16fCE certificate
With new luxurious cabin,luxurious seat
Adjustable

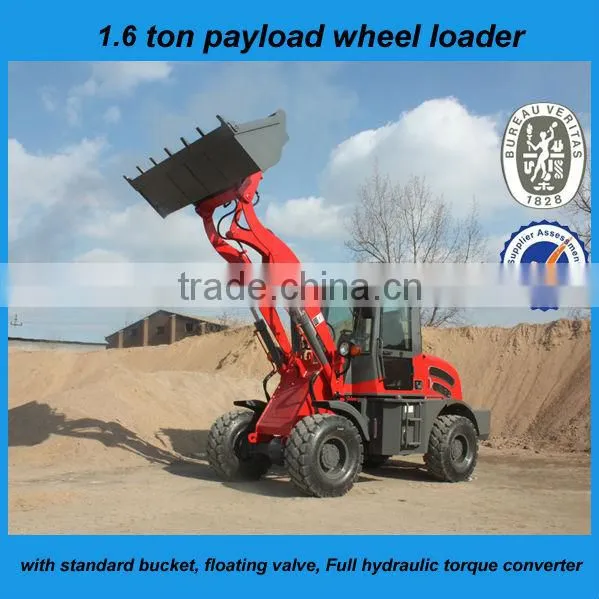

hot sale CE approved 1.6 ton wheel loader for Polish market
THE TECHNICAL PARAMETERS OF ZL16F CE CERTIFICATE MINI WHEEL LOADER | |||
Item |
Specifications |
Item |
Specifications |
Rated loading weight |
1600kg |
Overall dimensions(LxWxH) |
5300x1800x2750mm |
Rated bucket capacity |
0.8m3 |
Engine model |
XINCHAI 498BT(EURO III) |
Bucket width |
1750mm |
Engine type |
In-line arrangement, water cooled, four-cycle diesel engine |
Track base |
1500mm |
Engine starting mode |
Electric |
Wheel base |
2100mm |
Rated power/Rated speed |
36.8KW/2500rpm |
Min. turning radius(outside of rear wheels) |
4500mm |
Brake mode |
Four-wheel hydraulic spread-shoed brake |
Min. Ground clearance |
260mm |
Warranty |
12 months after received the goods |
Dump height fully raised |
2700mm |
Color |
According to the requirements of customers |
Max. Tilt angle |
300 |
Tyre type |
20.5/70-16 |
|
Max. Bucket breakout, lift cylinder |
36.8KN |
Shipping port |
Qingdao port, China |
Maximum Speed |
21km/h |
Packing details |
Nude package, 1Unit/20's GP with disassembled cabin, 2Units/40's HQ |
Driving mode |
Four-wheel full hydraulic drive |
Delivery time |
20 days after confirm the order |
Transmission gear box form |
2 gear hydraulic variable speed changes |
Supply ability |
100 units per month |
Operating weight |
4150kg |
||
Major features:
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2.Using special drive axle, with strong ability to overcome obstacle

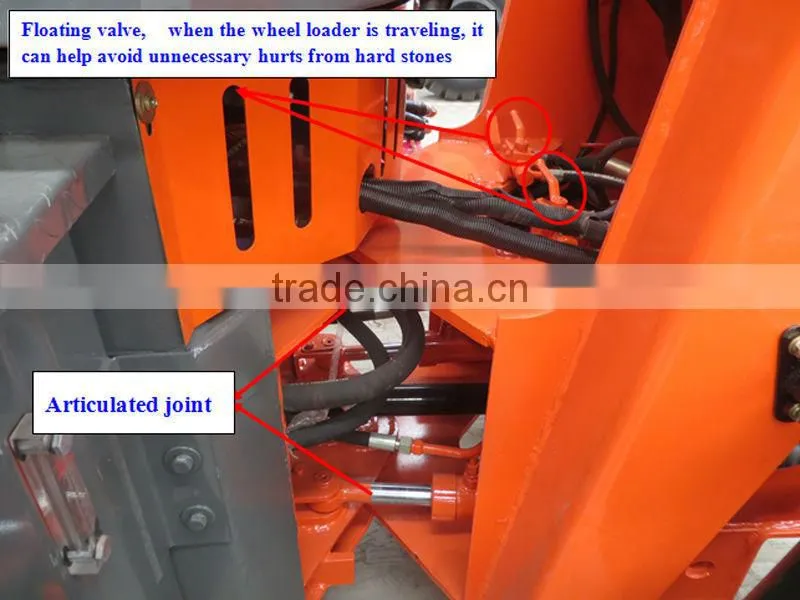

3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space

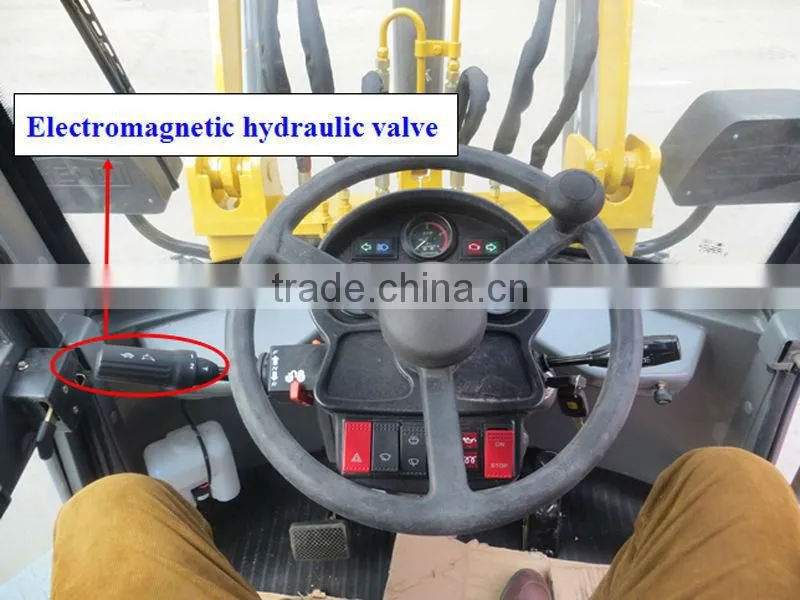

4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
6.Hydraulic mechanical transmission, can make full use of engine power
7.Using four wheel drive, low wide-based off-road tires
8.A single pipeline hydraulic brake system up for wheel brake shoe
Tools
Loading container process
