Radlader Zl18f,zl18f Radlader Wth EPA in Canada

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Model Number:

zl18f

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name FM

Model Number zl18f

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5800x1900x2700mm

Rated Load 1800KG

Certification CE,EPA

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

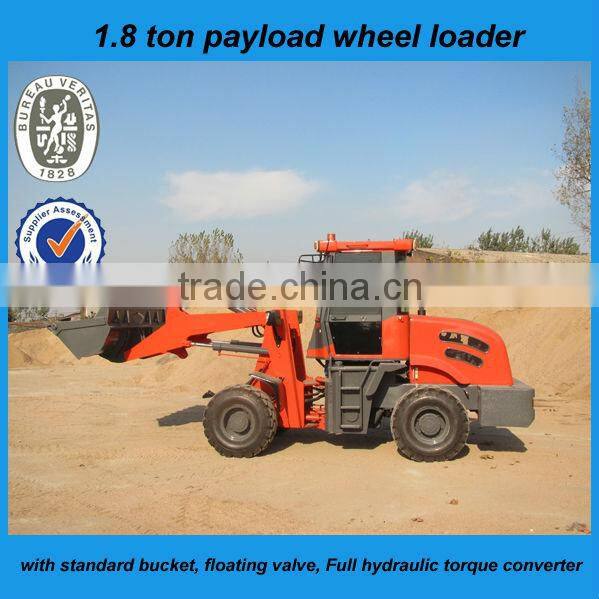

china radlader zl18f
rated weight:1800kg rated capacity: 0.9 cubic meters chinese famous weichai engine or cummins engine

wheel loader zl18f

1. All parts are made of high quality materials.

2. Streamlined design, elegant appearance.

3. Optimized by CAD, the bucket can be leveled automatically at high position;

the bucket cylinder can only be tipped in one direction; “Z” type connecting rod,

tremendous shoveling and digging force.

4. Split type engine and gearbox, with reliable performance.

5. The dynamic system can be equipped with famous engine from home or abroad, can meet the actual requirements of customers.

6. Fully hydraulic steering system, reliable and durable, easy and convenient operation

and maintenance.

7. Deluxe cab with wide field of vision, adjustable seat comfort and relieve the driver.

8. There are various of options for customers’ selection

specification of zl18f wheel loader

1.Specification	1.1.overall weight(kg)	4400
	1.2.L×W×H(mm)	5800x1900x2700
	1.3.rated bucket capacity(m³)	0.9
	1.4.Rated load(kg)	1800
	1.5.Maximum dump height (mm)	3200/3700
	1.6.Bucket indicator	Yes
	1.7.Max. breakout force(KN)	43
2.Engine	2.1.Model	weichai4100 turbo
	2.2.Type	In line,direct injection,four-stroke,liquid cooled
	2.3.Rated power(kw)	56kw
	2.4.Rated speed(r/min)	2400
3.Transmission system	3.1.Model of torque converter	YJ265
	3.2.Type	Single-stage,3 elements
	3.3.Gearbox type	Axial full power shift transmission
	3.4.Gear shift	2 gears ahead,2 gear astern
4.Hydraulic system	4.1.Distribution of work valve	DF15.2C
4.Hydraulic system	4.2.Working pump	CBG2040
5.Steering system	5.1.Type	Articulated hydraulic steering
	5.2.Max. turning angle	lift and right 35±1°
	5.3.Min turning radius(mm)	4200
6.Brake system	6.1.Brake type	Air assist oil disc on four wheel
7.Tyres	7.1.Standard tyres	23.5/70-16
7.Tyres
