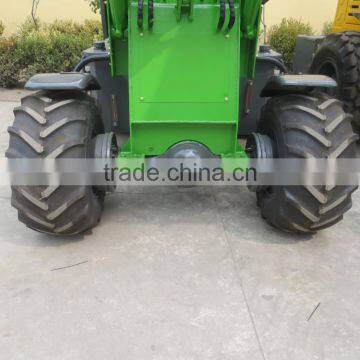

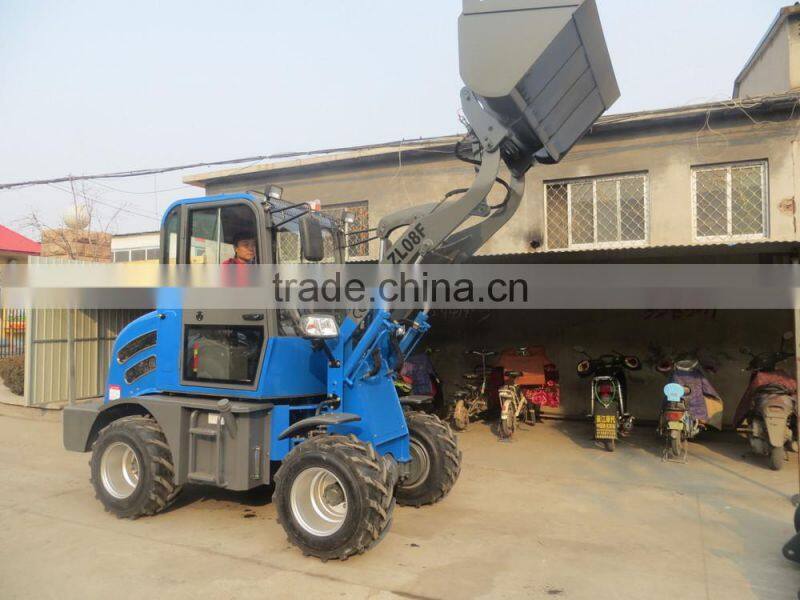

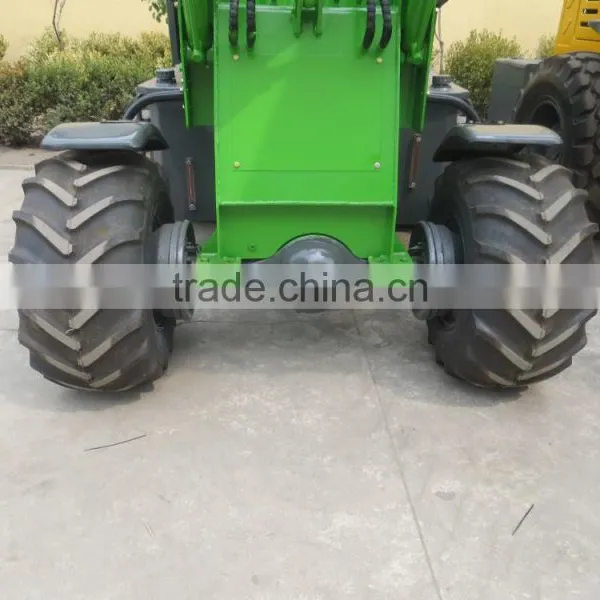

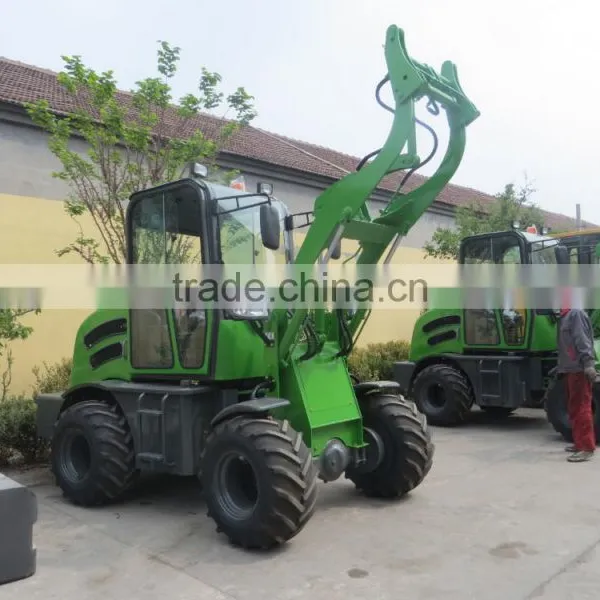

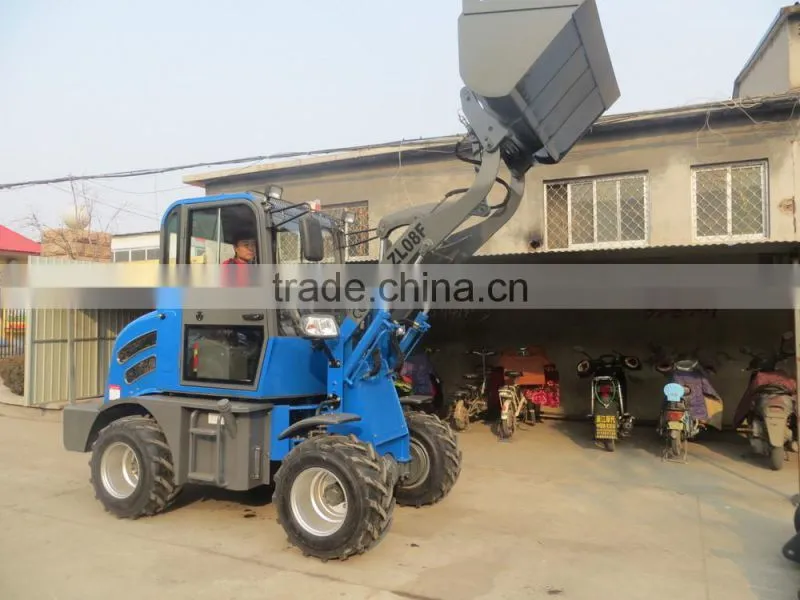

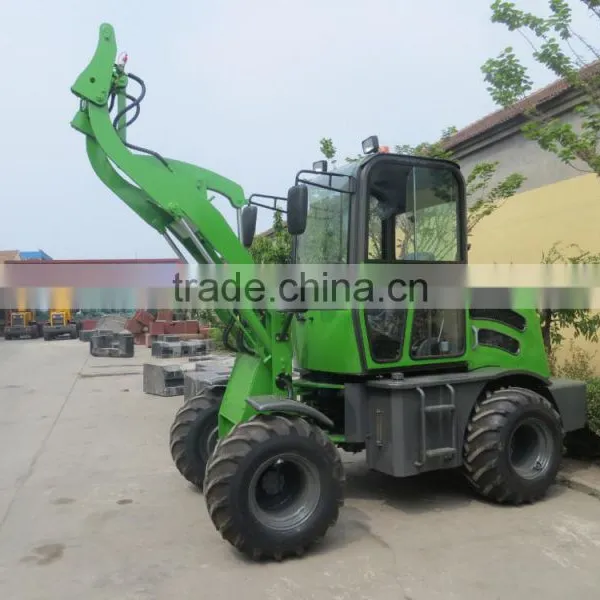

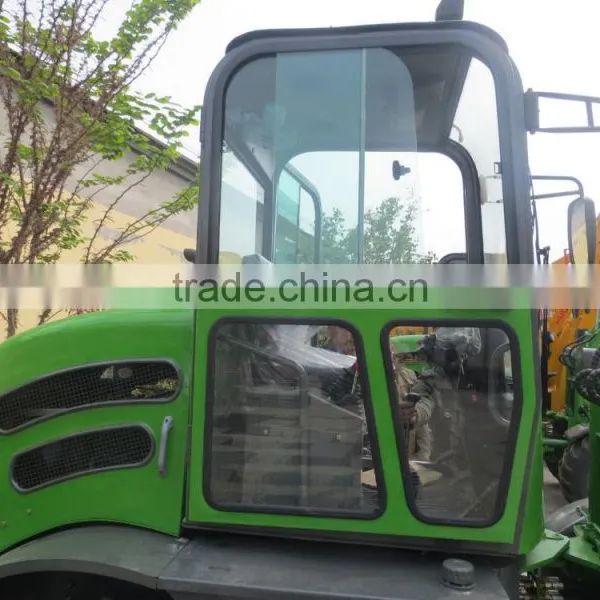

Zl08 Wheel Loader for Sale

US$ 6,500 - 7,350 MOQ: 1 Unit

Key Specifications

Condition:

New

Brand Name:

Model Number:

ZL08F

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name FM

Model Number ZL08F

Place of Origin Shandong, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4700x1200x2280 mm

Rated Load 800kg

Certification CE, EPA, ISO

Warranty 13 months

After-sales Service Provided Engineers available to service machinery overseas

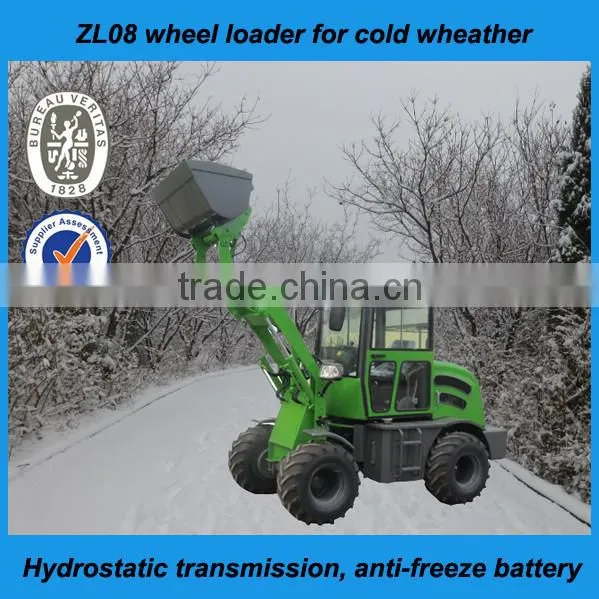

800kg wheel loader with snow bucket for sale in Malaysia

Specification
Rated loading weight (KG)	800 KG
Rated bucket capacity (cbm)	0.4 M3
Bucket width	1400 mm
Track base	1285 mm
Thread	1400/1405 mm
Total time	11 s
Wheel base	2100 mm
Min.swerve diameter	4600 mm
Min.ground clearance	240 mm
Dump height fully raised	2350 mm
Reach fully raised	700 mm
Lifting time	4s
Hydraulic cycle time	9s
Max.tilt angle	30°
Max.bucket breakout force,lift cylinder	28KN
Dricing mode	Four-wheel drive
Operating weight	2400kg
Dimension(L×W×H)	*470012002280mm*
Engine
Engine model	CHANGCHAI CZ2102
Engine type	in-line arrangement,water cooled ,one-cycle diesel Engine
Engine starting mode	Electric
Rated speed (r/min)	2400rpm
Rated power (HP)	34HP
Brake mode	Four-wheel hydraulic spread-shoed brake
Working system
Distribution of work valve	DF15.2C
Working pump	CBF32
Steering system type	Articulated hydraulic steering
Max turning angle	35 degree ±1
Max turning radius(mm)	3400
Steering system pressure	10Mpa
Work system pressure	16Mpa
Standard tyre	650-16
Loading and shippment
Color	According to the requirements of customers
Minimum order quantity	1Unit
Port	Qingdao
Packaging details	Nude package , 2units in 20'fcl
Delivery time	15 days after confirm the order
Supply ability	100units per month
