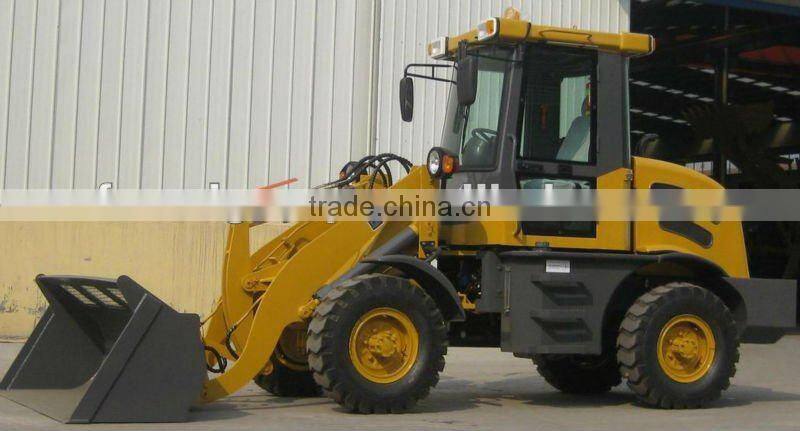

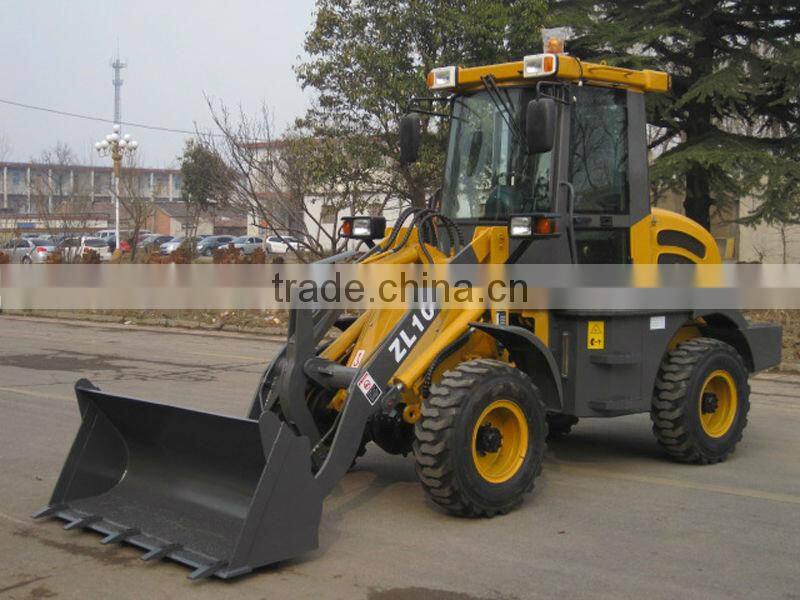

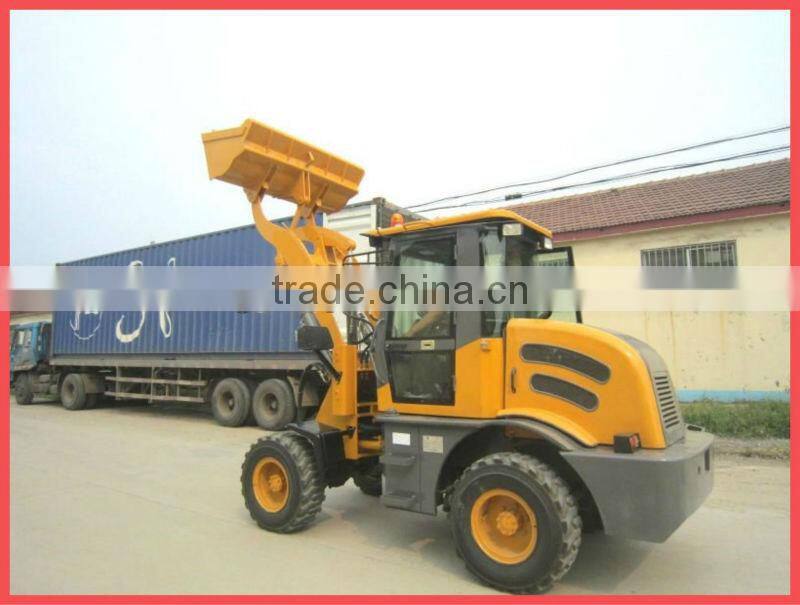

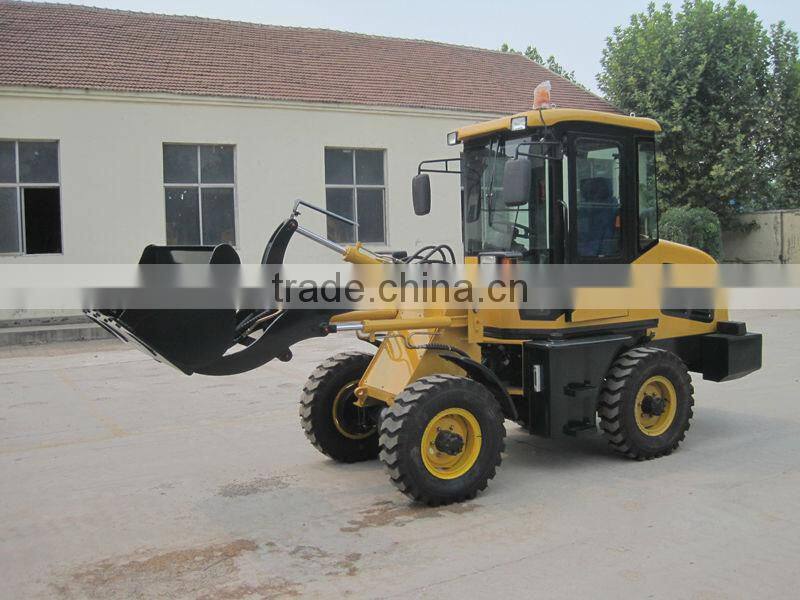

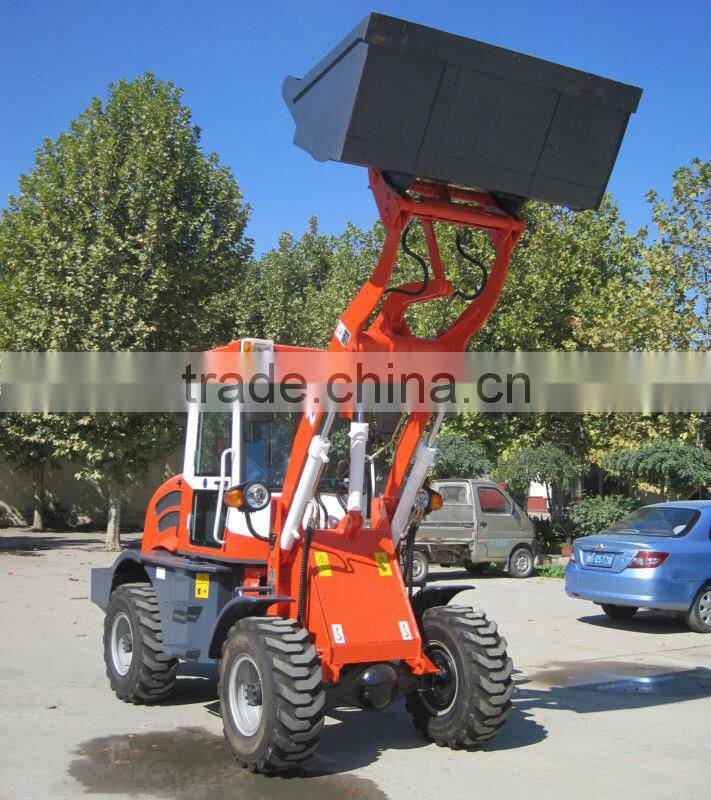

Mini Radloader Zl10f,payloader Zl10f,front Loader Zl10f

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Model Number:

ZL10f

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name FM

Model Number ZL10f

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4800x1730x2530mm

Rated Load 1000KG

Certification CE,EPA

Warranty 12 months

After-sales Service Provided Overseas third-party support available

mini radlader zl10f , mini loader,4x4 WD,hydraulic torque converter,CE approved

Model	ZL10A with clutch	ZL10B with clutch	ZL10F with hydraulic transmission
Rated loading weight	1000KG	1000KG	1000KG
Rated bucket capacity	0.5CBM	0.5CBM	0.5CBM
Bucket width	1400mm	1600mm	1600mm
Track base	1215mm	1320mm	1400mm
Wheel base	1985mm	2020mm	1580mm
Min.swerve diameter	4200mm	4200mm	3890mm
Min.ground clearance	250mm	220mm	230mm
Dump height fully raised	2300mm	2450mm	2200mm
Reach fully raised	850mm	1050mm	850mm
Lifting time	4s	4s	4s
Hydraulic cycle time	8s	9s	9s
Max.tilt angle	30°	30°	30°
Max.bucket breakout force, lift cylinder	20KN	24KN	26KN
Dricing mode	Four-wheel drive	Four-wheel drive	Four-wheel drive
Operating weight	2850kg	2950kg	3300kg
Dimension(L×W×H)	475015002530mm	493016002570mm	475016502720mm
Engine model	CHANGCHAI 385	CHANGCHAI 485	CHANGCHAI 490
Engine type	in-line arrangement,water cooled , THREE-cycle diesel Engine	in-line arrangement,water cooled , four-cycle diesel Engine
Engine starting mode	Electric	Electric	Electric
Rated speeds	2200rpm	2200rpm	2200rpm
Rated power	20kw	24kw	29kw
Brake mode	Four-wheel hydraulic spread-shoed brake
Color	According to the requirements of customers
Port	Qingdao	Qingdao	Qingdao
Packaging details	Nude package ,3Units/40's HQ
Delivery time	20days after confirm the order
Supply ability	150units per month	100units per month	100units per month
