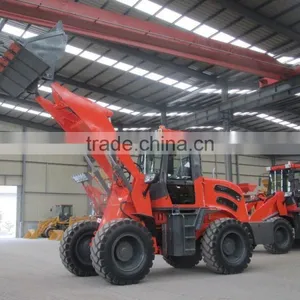

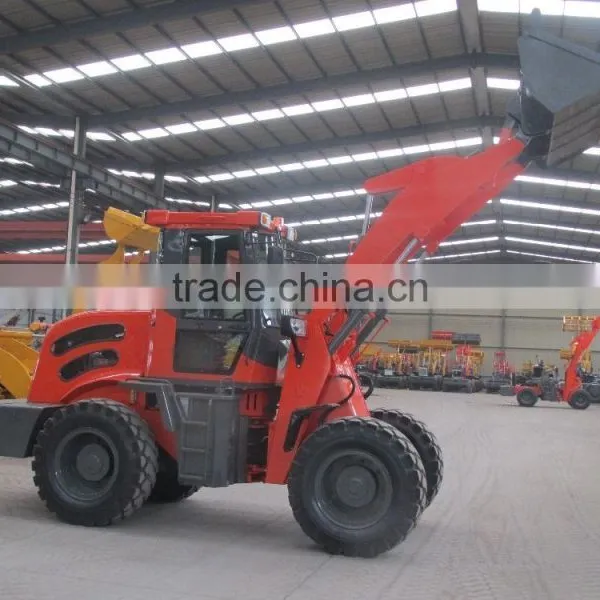

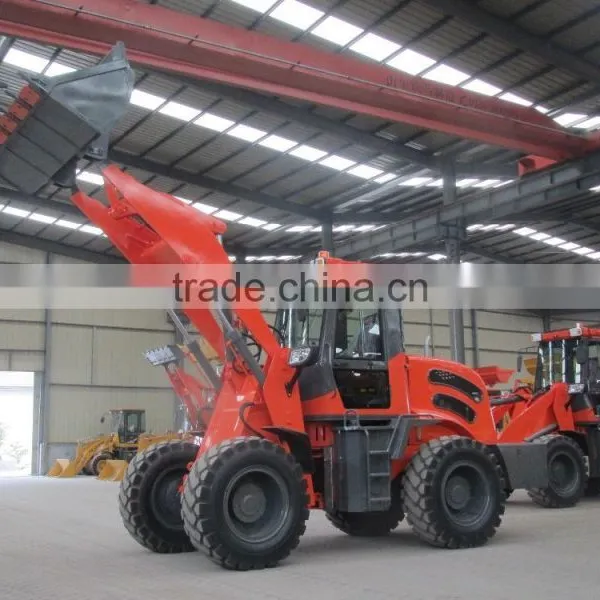

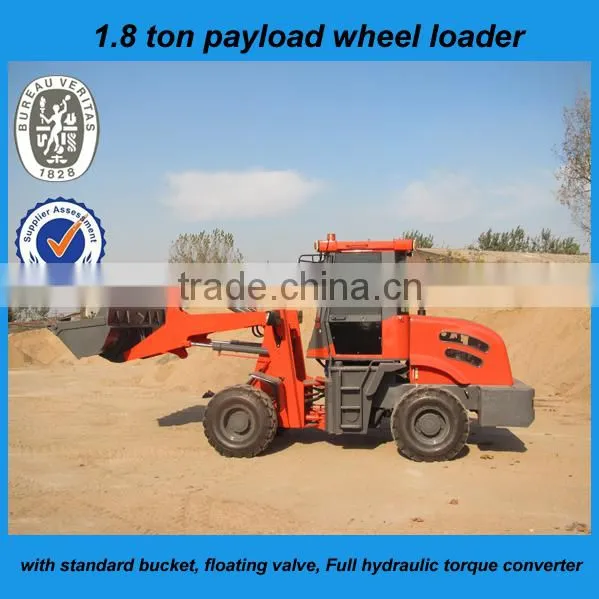

Mini Loader Zl18f, Zl18f Wheel Loader

US$ 10,000 - 23,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Brand Name:

Model Number:

ZL18F

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name FM

Model Number ZL18F

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5760x1800x2730 mm

Rated Load 1800kg

Certification CE, EPA, ISO

Warranty 13 months

After-sales Service Provided Engineers available to service machinery overseas

CE and EPA approved ZL18F wheel loader for Europe market and Canada market

Engine
Model	Cummins B2.8– 45KW
Engine Type	Vertical,in line,water cooling,four stroke diesel engine
Rated power	45 KW
Rated speed	2400r/min
Fuel Consumption ratio in standard working condition	230g/kw.h
Transmission System
Model of torque converter	YJ265
Gear boxType	Fixed-spindle Power shift
Gear shift	2 gears ahead, 2 gears astern
Specification
Overall weight (kg)	4350 kgs
Dimension: L x W x H (mm)	5800x1860x2730mm
Rated bucket capacity	1.0 -1.2 cbm
Rated bucket type:	Heavy-duty bolt on teeth
Rated load weight (kg)	2600 kg
Max.dump height (mm)	3200 mm
Bucket indicator	yes
Overall Dimensions
Overall Length (Bucket on ground position)	5800mm
Overall Height	2730mm
Overall Width	1860mm
Steering systerm
Steering System	Articulated Frame with hydraulic power steering
Min Turning Radius	3500mm
Driving System	Hydraulic converter
hydraulic system working pressure	16 mps
Boom lifting time	4.8s
fuel tank capacity	60L
Brake System
Service Brake	Four Wheel Hydraulic spread-shoed brake
Parking Brake	Hand operated
Tyre
Model	23.5-16

Shipment	2 units in 40’HQ
