Specifications
Timber Wood Trailer with Crane(grapple)Attachments Easy-Exchange
Hydraulic system to use tractor PTO
8 Years Updated
It’s used in loading,transporting,stacking and unstacking of wood,grass and reed,bamboo,etc.
Hydraulic transmission is used,featured whit compact structure,flexibility,convenient operation and quick mouning and dismounting.
Q345 Steel- good mechanical properties and good low temperature performance, good ductility and weldability,
used in low pressure containers,tanks, vehicles, cranes, mining machinery, power plants, bridges and other structures to withstand
dynamic load, machine parts, building structures and general metal structure which is used in the hot-rolled or normalized state, it
can also be used as various structures in the cold regions below -40 °C.(In China, there is no other factory can make it)
Grapple trailer Model |
FM-8-600 |
Matching tractor |
≥70HP |
Trailer capacity |
8000kg |
Lifting capacity |
6m/500KG. 4.3m/900KG 2.3m/1400KG. |
Swing angle |
360° |
Max. reach |
6m |
Weight |
2000kg |
tire size |
400/60-15.5 |
Carriage |
3250×1980×1800 |
Motive Power |
PTO |
FEATURE
1. Matching Tractors, ATV or truck
2. PTO, Gas/Diesel engine
3. Air Brake
4. Hydraulic Transmission in Compact structure
5. Flexibility and convenient operation
6. Quick mounting and dismounting
7.Tire size:400/60-15.5
8.Good lifting capacity: 6m/500KG; 4.3m/900KG; 2.3m/1400KG.

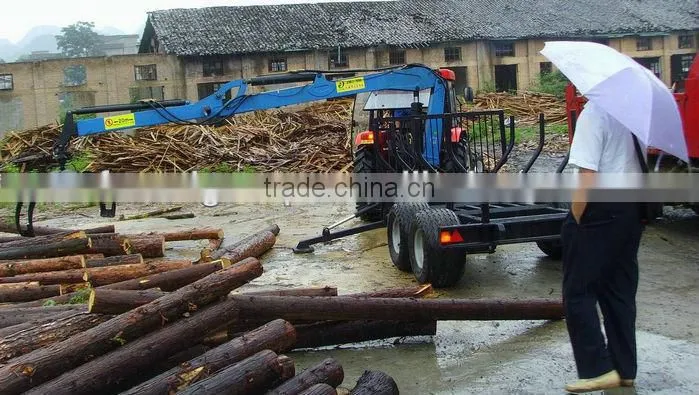

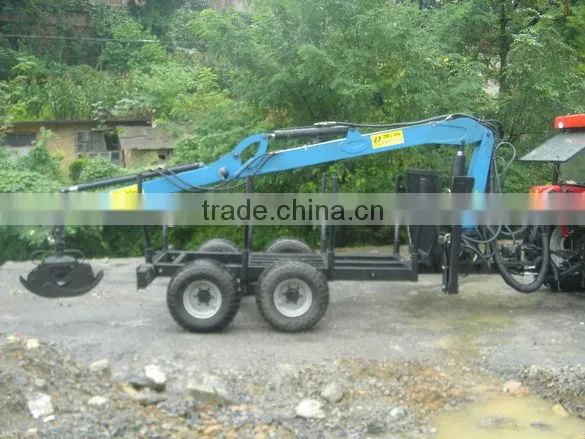

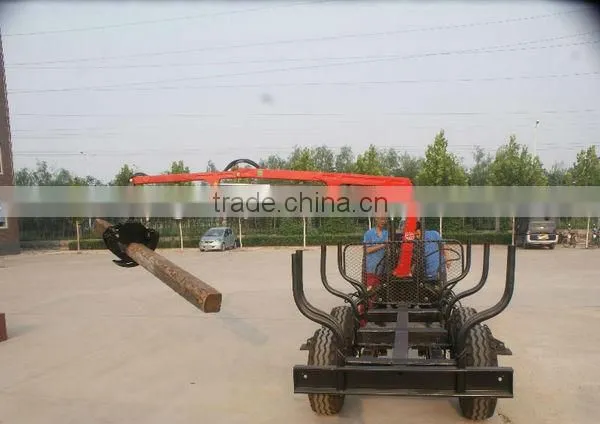

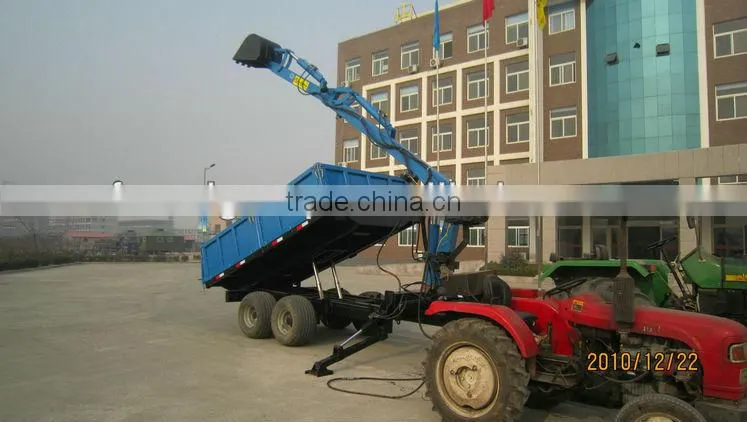

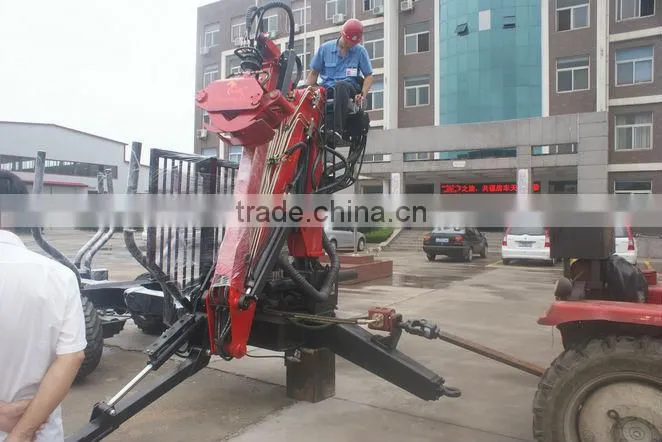

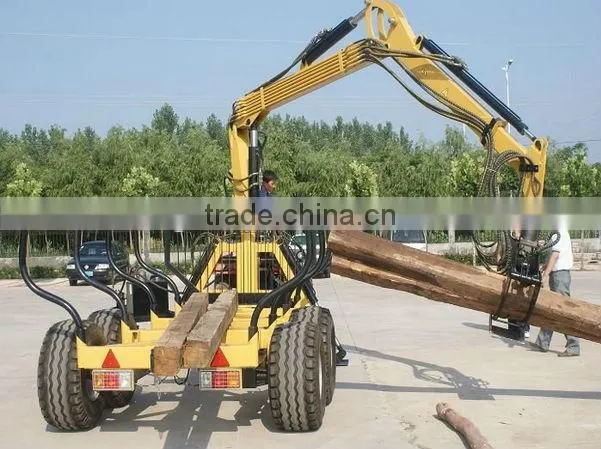

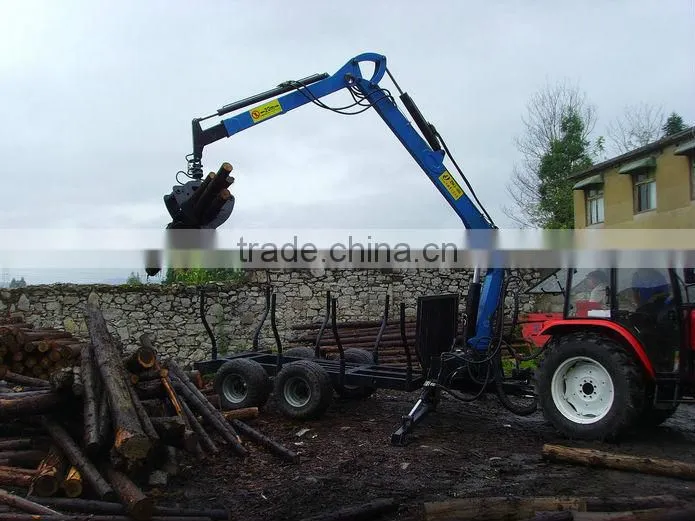

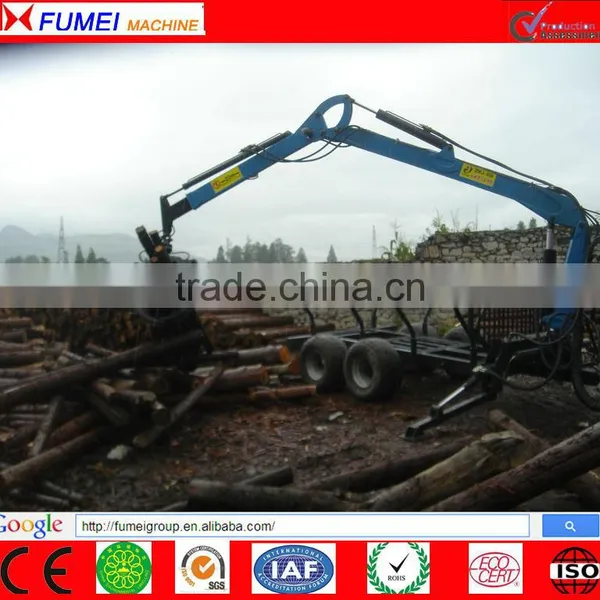

THE MACHINE DISPLAY
DETAILS DISPLAY
