Hot Sale CE Certificated Log Loader With Trailer

Name: Hot Sale CE Certificated Log Loader With Trailer
Brand: FM or OEM as required
SKU: 138951423
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Agro-Forestry Monitoring System

Use:

load, unload, transporate, grap

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Agro-Forestry Monitoring System

Use load, unload, transporate, grap

Power Type Diesel

Place of Origin Shandong, China

Brand Name FM or OEM as required

Model Number ZM1002, ZM3004, ZM5004, ZM8006

Dimension(L*W*H) 3700x1400x550

Certification CE

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

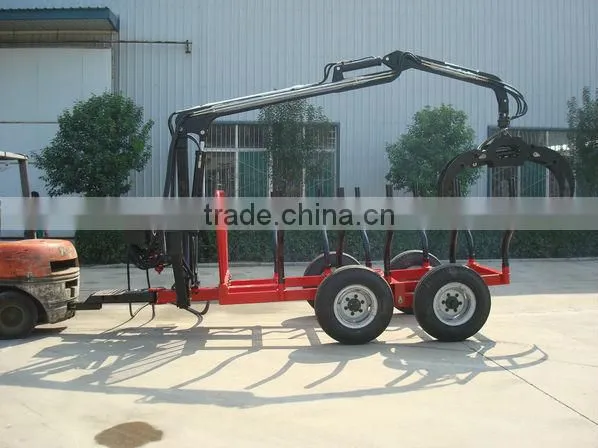

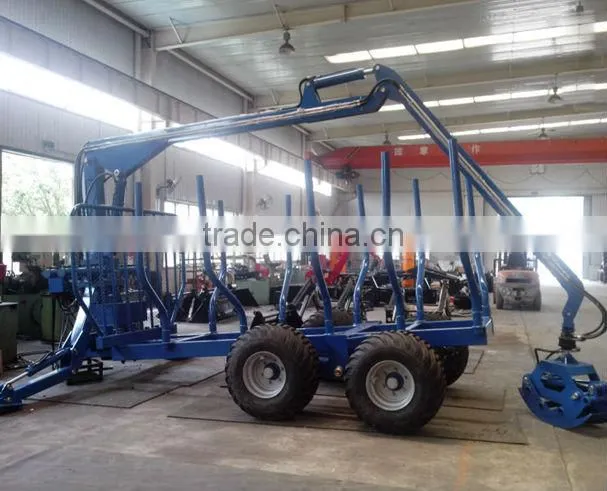

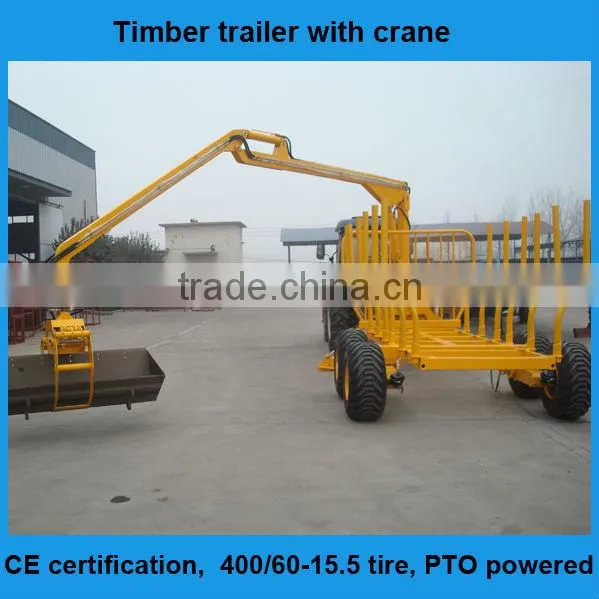

Hot sale CE certificated Log loader with trailer
Attachments Easy-Exchange
Hydraulic system to use tractor PTO

Hot sale CE certificated Log loader with trailer

Log Trailer with Crane	1T	3T	5T	8T	10T	12T
Model	ZM1002	ZM3004	ZM5004	ZM8006	ZM10006	ZM12006
Matching Tractor	10-20 hp	20-40 hp	50-60 hp	70-80 hp	80-90 hp	90-100 hp
Net Weight	800kg	1500kg	2000kg	2500kg	2700kg	2900kg
Trailer Model	TR10	TR30	TR50	TR80	TR100	TR120
Loading Capacity	1000kg	3000kg	5000kg	8000kg	10000kg	12000kg
Loading Area	0.85m2	1m2	1.6m2	2.2m2	2.5m2	2.8m2
Total Length	3.6m	5.1m	5.1m	5.9m	6.3m	6.3m
Trailer Loading Length	2.0m	3.1 m	3.1 m	3.7 m	4.3 m	4.3 m
Total Width	1.4	1.6 m	1.8 m	2.2 m	2.3 m	2.5 m
Frame tube dimensions	80x80x6 mm	140x140x6 mm	140x140x6 mm	160x160x6 mm	160x160x6 mm	160x160x6 mm
Shaft Journals	33 mm	38 mm	38 mm	38 mm	38 mm	38 mm
OP: Brakes System:	Standard: Without brake; Option: Hydraulic brakes in front hubs/in 4 hubs
Crane Model	CR02	CR04	CR04	CR06	CR06	CR06
Grapping area	0.20 m2	0.28 m2	0.28 m2	0.28 m2	0.28 m2	0.28 m2
Reach Max.	3.5m	4.3 m	4.3 m	6 m	6 m	6 m
Lift capacity,kg/outreach, m ( without Grapple and Rotator)	400/2, 300/3, 200/3.5	1280/2,760/3, 500/4,450/4.3	1280/2,760/3, 500/4,450/4.3	1280/2,760/3,500/4,340/5,240/6	1280/2,760/3,500/4,340/5,240/6	1280/2,760/3,500/4,340/5,240/6
Slewing Angle	400°	400°	400°	400°	400°	400°
OP:Hydraulic Center	O	O	O	O	O	O
Remarks	S=STANDARD O=OPTION
