QLN Farm Chinese 4 Wheel Agricultural Machinery Multifunction Mini Tractor

QLN Farm Chinese 4 Wheel Agricultural Machinery Multifunction Mini Tractor thumbnail-1
QLN Farm Chinese 4 Wheel Agricultural Machinery Multifunction Mini Tractor photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Fumei Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 44.1KW
Certificate CE
Brand Name FM
Model Number 554
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

QLN farm Chinese 4 wheel agricultural machinery multifunction mini tractor
rated power:44.1 kw

QLN farm Chinese 4 wheel agricultural machinery multifunction mini tractor

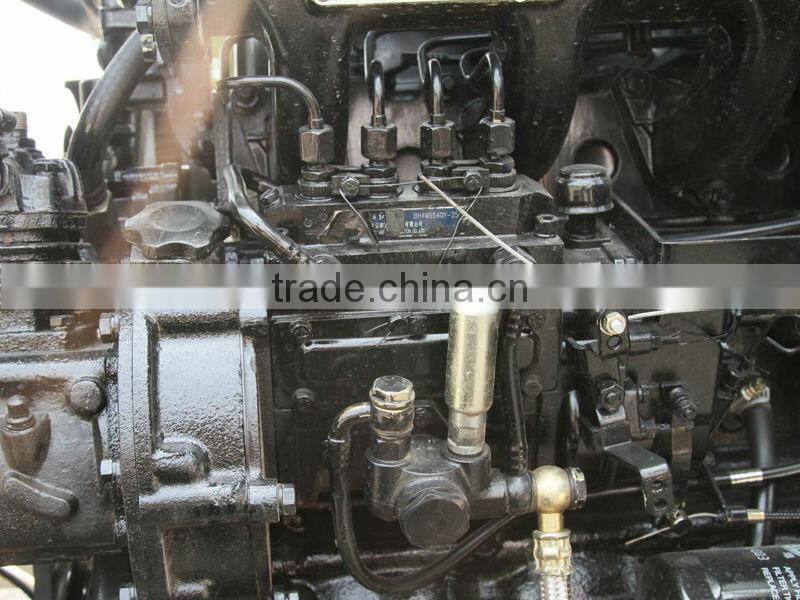

Engine

  MODEL

YTR4105T93X

Rated speed(r/min)

2350

Rated power(KW)

44.1 KW

Bore X Stroke(mm)

80X100

Rated  traction(KN)

12.5

Dimension

Overall Dimensions

LXWXH(mm)

3750X1739X2494

Wheel base(mm)

2236

Tread (mm)

Front wheel

1450



Rear wheel

1530

Min. Ground Clearence (mm)

290

Constructional  weight

(Kg) Wihtout cab

2795

Design speed (km/h)

Forward

0.54~34.51



Rear

0.76~12.4

  Clutch

double stage clutch, ingle disc, dry-type

  Gearbox

12+12 Spindle type shift

 Central Drive

spiral bevel gear pair

Differential

Closed

Steering Type

  The all hydraulic power steering

Wheel Tyre

 Front Wheel

8.3-20



 Rear Wheel

14.9-28

 Type

 snmi-independence

 Speed of P.T.O. (r/min)

540 /760 or 540/1000

 Spine shaft pattern



Max lifts capacity at the point of 610mm from suspending shaft backward (KN)

≥11

Main devices

l F12+R12  gear BOX

l Power steering

l Differential lock

l Dual stage clutch

l Draft & positional consolidated adjustable lifter



604

FOB Qingdao  Price(USD)



20” GP

1 UNIT

40” GP

3 UNITS

QLN farm Chinese 4 wheel agricultural machinery multifunction mini tractorQLN farm Chinese 4 wheel agricultural machinery multifunction mini tractorQLN farm Chinese 4 wheel agricultural machinery multifunction mini tractorQLN farm Chinese 4 wheel agricultural machinery multifunction mini tractor

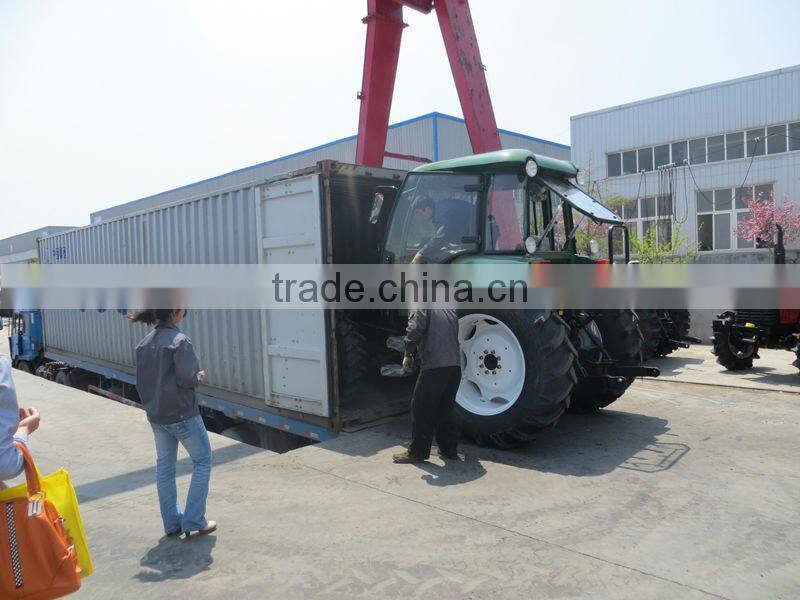

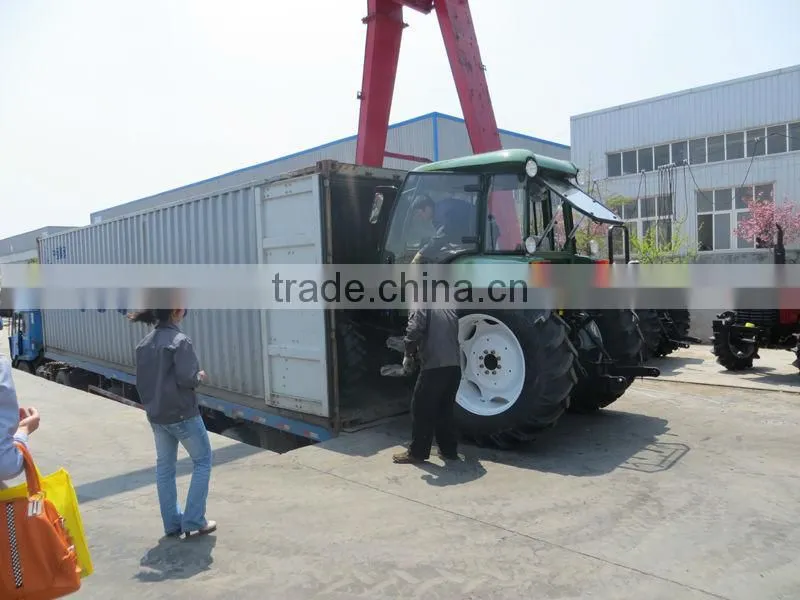

Loading container process

QLN farm Chinese 4 wheel agricultural machinery multifunction mini tractor
