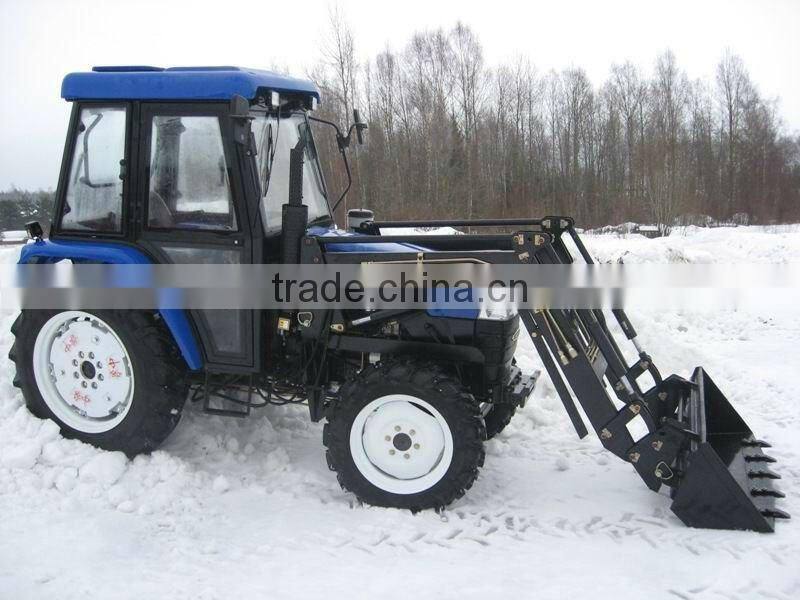

50hp 4wd Farm Tractor With Front Loader

Negotiable MOQ: 2 Units (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Other, tractor, farm machine

Power Type:

Diesel

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, tractor, farm machine

Power Type Diesel

Power(W) 36.7

Certification CE

Warranty 12months

Use farm working

Place of Origin Shandong, China

Brand Name FM

Model Number LZ504

Dimension(L*W*H) 3835X1620X2135mm

After-sales Service Provided Overseas third-party support available

Specifications

1)50HP tractor,4x4WD
2)CHANGCHAI 498
3)could attach front end loader,backhoe,mower,plough,rotary tiller,disc harrow

Tractor Model			TY 504
Type			4WD Wheeled Type
(mm)Dimensions of Tractor	Length (to front ballast)		3835
	Width		1620
	Height (to the exhaust vent)		2135
	Tread	Front Wheel	1280
		Rear Wheel	1300 Fixed or 1200~1500 Adjusted
	Axle Base		2030
	Min.Ground Clearance		325
Structure weight (kg)			1734
Ballast weight (kg)	Front ballast		168
	Rear ballast		300
Rated traction force (kg)			1150
Engine	Model		498/4100
	Type		Vertical,4-Cylinder,Water Cooled and 4-stroke
	Rated Power(kw)		36.7
	Rated speed (r/min)		2400
	Fuel		Diesel
Tyre	Front Wheel		8.3-20
	Rear Wheel		12.4-28
Clutch			Dual-stage clutch
Steering			power steering
Transmission Type			8+4 or 8+8 with shuttle gearshift or (8+4)×2 with creeper shift
Suspension Type			3-point links
PTO	Type and Rev		Semi-independent Type 540/1000
	Spline Size		F35 Rectangle Spline with 6 teeth
