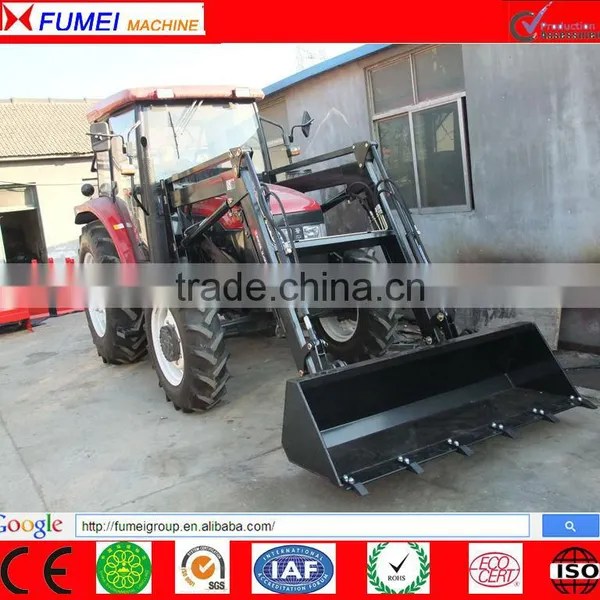

Famous Brand SD SUNCO TZ16D Front End Loader for Tractor with CE Certificate

Specifications

CE Certificate
Compact Structure
Stable Hydraulic System
Easy Operation and High efficiency
Quick Mounting and Dismounting.

Famous Brand SD SUNCO Front End Loader for Tractor with CE Certificate

 Description:



TZ Series Front End Loader for tractor is used in shoveling, stacking or short-distance transporting of loose material like mud, sand and stone, garbage etc.

Different work devices are optional, such as combined buckets, grating cover bucket, timber grab and bale fork etc, so as to accomplish different kinds of work

 successfully.



Features:



tractor front end loader
Stable Hydraulic System
Easy Operation and High efficiency

Quick mounting and dismounting.

High quality control with CE Certufucate



Application:



TZ Series Front End Loader for tractor is widely used in farm, grazing land, construction etc, mainly in shoveling, stacking or short-distance transporting of loose

 material like mud, sand and stone, garbage



Specifications:



Main Specifications of Front End Loader
Model		TZ03D	TZ04D	TZ05D	TZ06D
Matching Tractor	kw(hp)	14.7~22.1(20~30)	22.1~29.4(30~40)	29.4~36.8(40~50)	36.8~44.1(50~60)
Rated Lift Capacity	kg	300	400	500	600
Max. Dump Height	mm	1800	2000	2100	2200
Digging Depth	mm	100	120	140	140
Bucket Capacity	m3	0.18	0.3	0.35	0.4
Dump Angle	(° )	42~45	42~45	42~45	42~45
Weight	kg	470~650	500~680	530~720	660~800
Main Specifications of Front End Loader
Model		TZ08D	TZ10D	TZ12D	TZ16D
Matching Tractor	kw(hp)	44.1~58.8(60~80)	58.8~66.2(80~90)	88.2~102.9(120~140)	140-180
Rated Lift Capacity	kg	800	1000	1200	1600
Max. Dump Height	mm	2350	2350	2500	2500
Digging Depth	mm	180	180	200	200
Bucket Capacity	m3	0.48	0.6	1	1
Dump Angle	(° )	42~45	42~45	42~45	42~45
Weight	kg	680~830	800~980	960~1150	960~1150



Our Advantages:



1. Strong Technical Support:



More than 80 professional and technical personnels;

Top universities and institutes cooperator;

A subordinate to Shandong Agricultural Machinery Research Institute



2. Top Quality Assurance:



Strict control and selection of materials;

Completely self manufactured and installed;

Advanced equipments and first-class production technology;

Sound management system and solid economic strength



3. Advanced Testing Measures:



Exclusive R&D, testing center;

Capable of undertaking national research projects;

Exclusive professional platform





4. Sound after-sale system, sincere and all-aspect service



5. OEM service is acceptable, every products can be customized



6.Agents wanted abroad





Packing picture
