Home > Manufacturing & Processing Machinery > Agricultural Machinery > Tiller > 36 Row 2BFY-36 Seed Fertilizer Drill

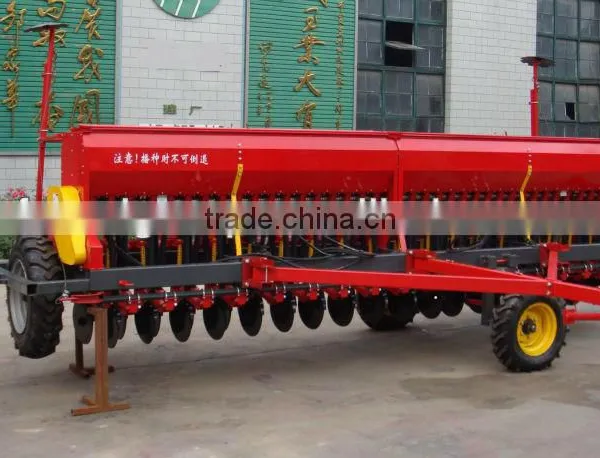

36 Row 2BFY-36 Seed Fertilizer Drill

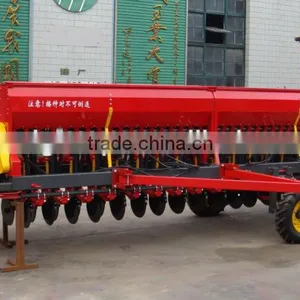

36 Row 2BFY-36 Seed Fertilizer Drill thumbnail-1
36 Row 2BFY-36 Seed Fertilizer Drill photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Farm Cultivator
Power Type:
Other, tractor
Contact Supplier Request Quote Chat Now
Weifang Fumei Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Farm Cultivator
Power Type Other, tractor
Power(W) match 65-100hp
Certification ISO9001:2000
Warranty 12 months
Use Agriculture working
Place of Origin Shandong, China
Brand Name FM
Model Number 2BFY-36
Weight 1900KG
Dimension(L*W*H) 6170x4030x1650mm
After-sales Service Provided Overseas third-party support available

Specifications

1.Seed fertilizer drill is suitable for wheat, millet, sorghum, etc.
2.ISO9001 manufacturer
3.Spareparts supplied

Hydraulic seed fertilizer drill

2BFY-36  seed fertilizer drill is the updated version on basis of traditional draft type seeders, which is suitable for drilling small sizes of seeds such as wheat, millet, sorghum, etc. in large and middle sized fields..

2BFF-24 is equipped with big angle openers, which makes it possible to drill wheat in wider strip zone in Spring.

The press device can also be equipped at option for the above machine.

Model

2BFY-24

2BFF-24

2BFY-36

Overall Dimensions(mm)

4380×3680×1650

4380×3770×1650

6170×4030×1650

Net Weight(kg)

1320

1430

1900

Working Width(mm)

3600

3600

5400

Working Depth(mm)

300-800

Driving Power(hp)

50-80

50-80

65-100

Type of transmission

Chain Transmission

Volume of Fertilizer Box(L)

430

430

320×2

Volume of Seeds Box(L)

410

410

305×2

Type of Seeds Discharger

Cast Iron Flute Wheel

working efficiency(Ha/h)

2-2.86

2-2.86

3-4.3

Spaces between Rows(mm)

150(adjustable)

Working Speed(km/h)

7-10

Type of Openers

Double-disc

Double-Disc with Wider Spacing

Double-disc

Distance between front and back Openers(mm)

260

490

260

Type of Clutch

  jaw(teeth) positive-contact type


36 row 2BFY-36 seed fertilizer drill36 row 2BFY-36 seed fertilizer drill36 row 2BFY-36 seed fertilizer drill36 row 2BFY-36 seed fertilizer drill36 row 2BFY-36 seed fertilizer drill
