Home > Manufacturing & Processing Machinery > Agricultural Machinery > Tiller > Disc Plough 1LY(T)-230

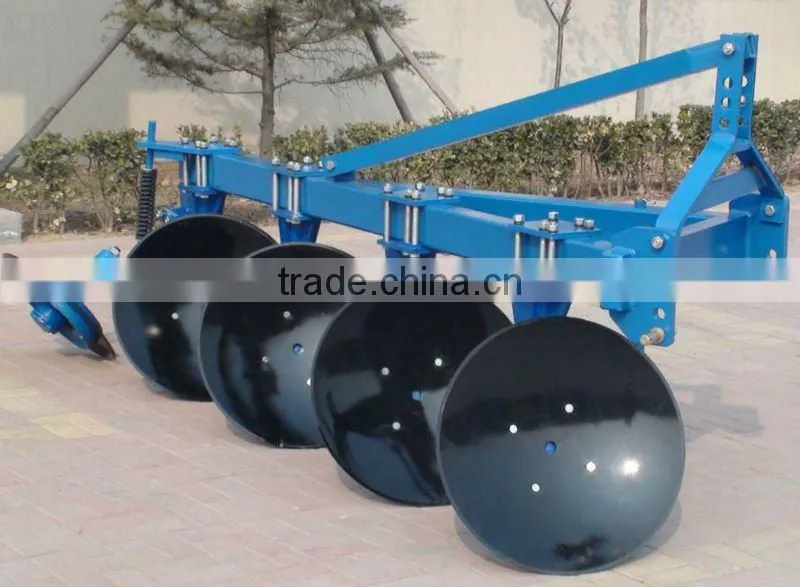

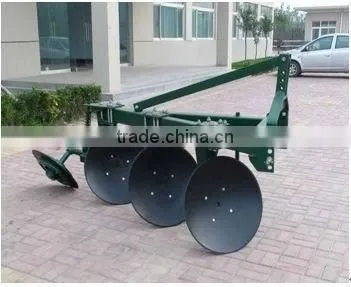

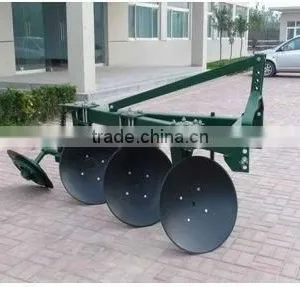

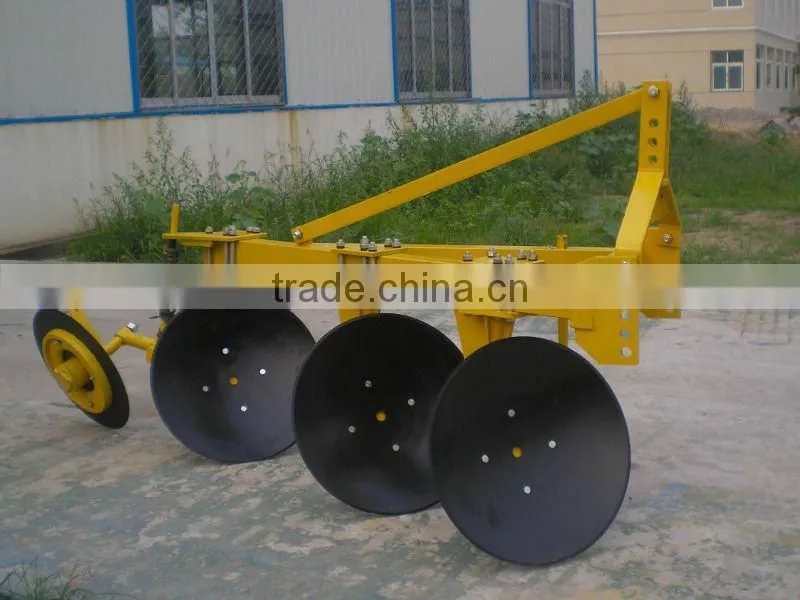

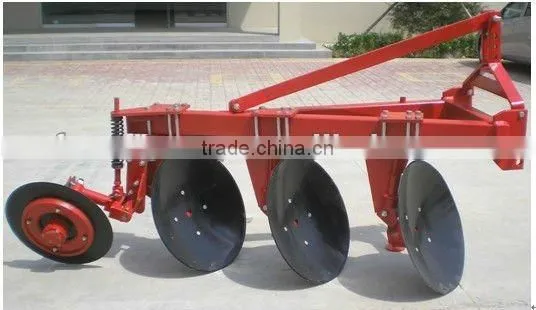

Disc Plough 1LY(T)-230
Negotiable
MOQ: 2 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Farm Cultivator
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Farm Cultivator
Power Type
Diesel
Certification
ISO9001:2000
Use
Agriculture working
Brand Name
TS
Model Number
1LY(T)230
Specifications
1)Matched power:45hp-65hp2)Linkage: Standard three point mounted
3)Agriculture working
This series of disc plough is completely mounted with tractor, during operation, the discs by its rotating to turn the soil, particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and brickbat, etc. in the field. It is good at cutting the grasses and straw, free from being stopped by the grasses, soil or stones, etc. According to the structure can be divided into different forms of 1LY(T) series; 1LY series; 1LYX series; 1LY(SX) series.
| Model | Unit | 1LY(T)-230 | 1LY(T)-330 | 1LY(T)-430 |
| Overall dimensions | cm | 200*105*150 | 265*120*155 | 330*140*150 |
| Working width | mm | 0.6 | 0.90 | 1.2 |
| Working depth | mm | 300 | 300 | 300 |
| Dia.of disc | mm | 710 | 710 | 710 |
| No. of disc | pcs | 2 | 3 | 4 |
| Overall weight | kg | 400 | 460 | 540 |
| Ground clearance | mm | ≥200 | ≥200 | ≥200 |
| work efficiency | ha/h | 0.3 | 0.45 | 0.6 |
| Matched power | hp | 45 | 55 | 65 |
| Linkage | Standard three point mounted | |||
