Specifications
Hydraulic steer Tractor Front blade1.2-2.1m working width
Match 20-110HP tractor
Hydraulic steering

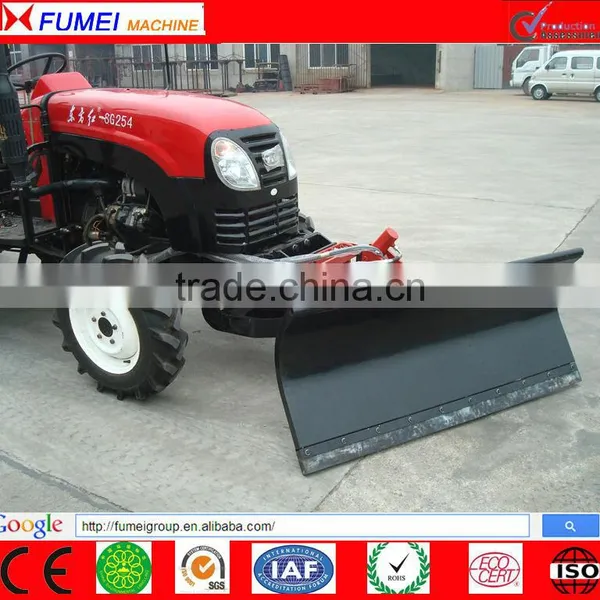

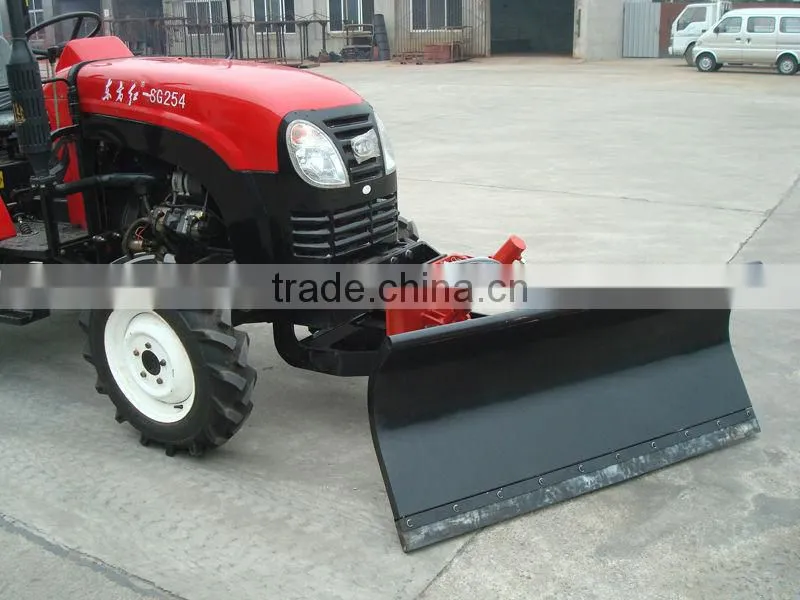

Hydraulic steer Tractor Front blade
1.Features:
1).Reinforced integral assembling structure through front to back, the rear supports add effective strength and protection to the tractor chassis.
2).Powered by tractor, multifunction, low cost.
3).Adopt advanced design ideas, excellent performance,simple structure, easy to install and dismantle.
4).Structure with integral installation and high strength, tractor with reasonable force.
5).High strength steels and advance production technology, light weight, reinforced structure, reliability and durability.
6).It can be widely used for leveling lands, clearing debris and fold piles, it also can be matched with backhoe loader.
2.Main Specification and Technical Parameters:
Model of Dozer Blade |
|
TT150 |
TT165 |
TT185 |
TT210 |
TT230 |
TT260 |
Matching Tractor |
kw(hp) |
25-35 |
40-60 |
60-80 |
80-110 |
100-130 |
125-150 |
Working Width |
mm |
1500 |
1650 |
1850 |
2100 |
2300 |
2600 |
Max. Digging Depth |
mm |
100 |
110 |
120 |
130 |
130 |
130 |
Max. Lifting Height |
mm |
250 |
300 |
350 |
350 |
400 |
400 |
Weight |
kg |
280 |
330 |
370 |
420 |
550 |
620 |
Our Advantages:
1. Strong Technical Support:
More than 80 professional and technical personnels;
Top universities and institutes cooperator;
A subordinate to Shandong Agricultural Machinery Research Institute
2. Top Quality Assurance:
Strict control and selection of materials;
Completely self manufactured and installed;
Advanced equipments and first-class production technology;
Sound management system and solid economic strength
3. Advanced Testing Measures:
Exclusive R&D, testing center;
Capable of undertaking national research projects;
Exclusive professional platform
4. Sound after-sale system, sincere and all-aspect service
5. OEM service is acceptable, every products can be customized
