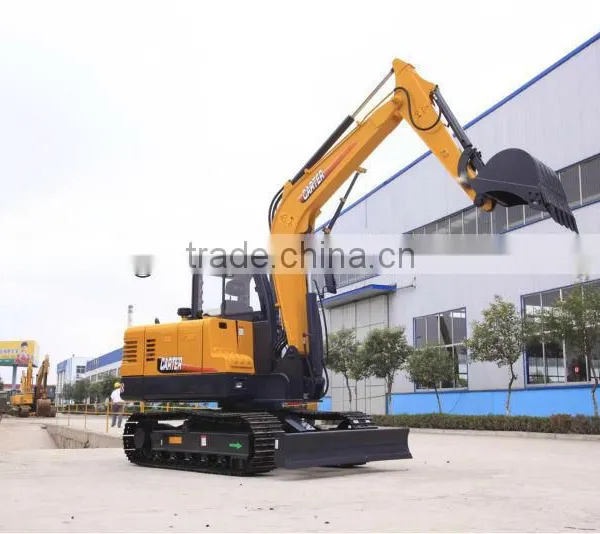

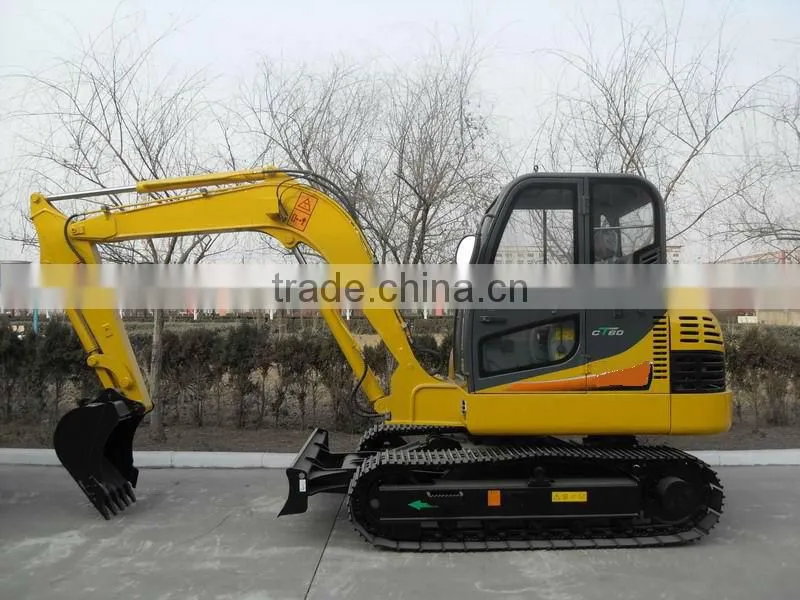

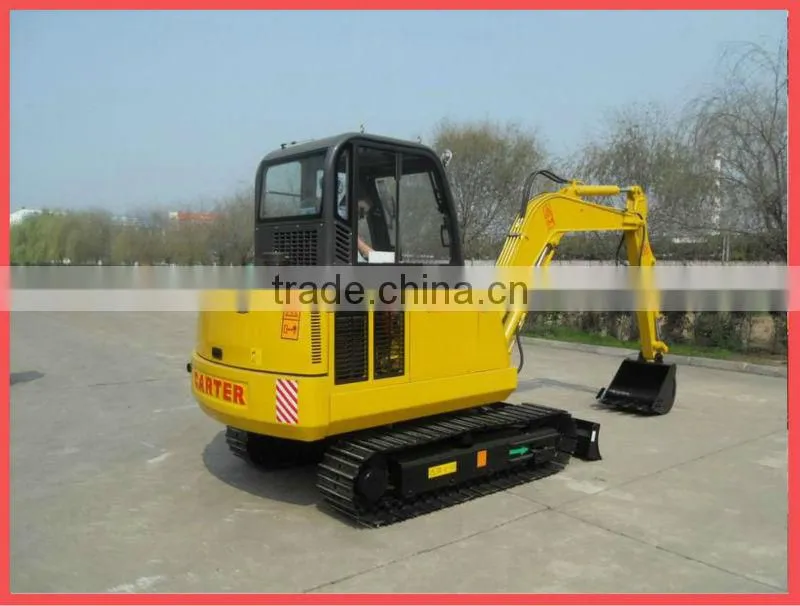

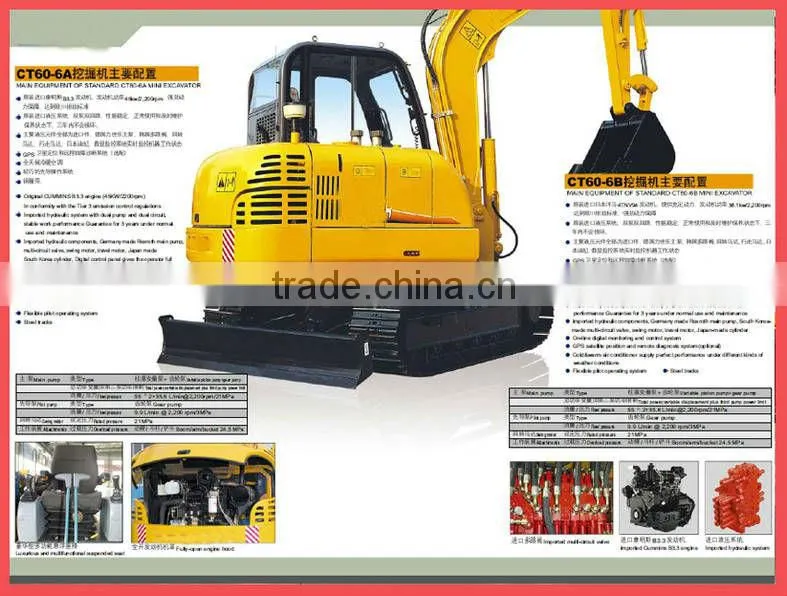

6 Ton Excavator CT60-6A

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

CT60-6A

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name CT

Model Number CT60-6A

Condition New

Moving Type Crawler Excavator

Operating Weight 5900KG

Bucket capacity 0.20CBM

Maximum Digging Height 5785mm

Maximum Digging Depth 3875mm

Machine Weight 5900KG

Max Digging Radius 6245mm

Rated Speed 4.0/2.5km/h

Certification CE

After-sales Service Provided No overseas service provided

Specifications

1.crawler excavator CT60-6A
2.engine:Cummins engine B3.3
3.rated power:45KW
4.bucket capacity:0.20CBM

Excavator model			CT60-6A with cab
Cargo body size (LxWxH)(mm), 20GP:569021302180			load 2 units in one 40HQ container
Operate weight kg			5900kg
Bucket capacity M3			0.2m³
Engine model			Cummins B3.3
Engine power (kw)			45Kw
Swing speed(rpm)			10
Ground pressure(KPa)			34
Travel speed(km/h)			4.0/2.5
Tracking force (kn)			49.3Kn
Gradeability (°)			30°(58%)
Main dimensions	Upperstrcuture width (mm)		1785
	Undercarriage width (mm)		1880
	Cabinet height (mm)		2650
	Rear swing radius (mm)		1700
	Ground clearance(mm)		400
Working range		Max.digging radius(mm)	6245
		Max.digging depth (mm)	3875
		Max.digging height(mm)	5785
		Max.dumping height (mm)	4095
		Max.dozer cutting depth (mm)	505
		Max.dozer lifting height (mm)	300
Standard Equipment		Germany Roxroth main pump
		U.S.A Parker reducer and travel motor
		US Parker swing motor
		South Korea-made multi-circuit valve
		Japanese Bridgestone rubber track
		Cold&warm air conditioner supply under different kind of weather conditions
