Plastic Undertree Rotating Sprinklers

Name: Plastic Undertree Rotating Sprinklers
Brand: Chinadrip
SKU: 138950187
Availability: InStock

US$ 1.584 - 2.386 MOQ: 1 Carton

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Chinadrip

Model Number:

RS5022

Chinadrip Irrigation Equipment (Xiamen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Chinadrip

Model Number RS5022

Specifications

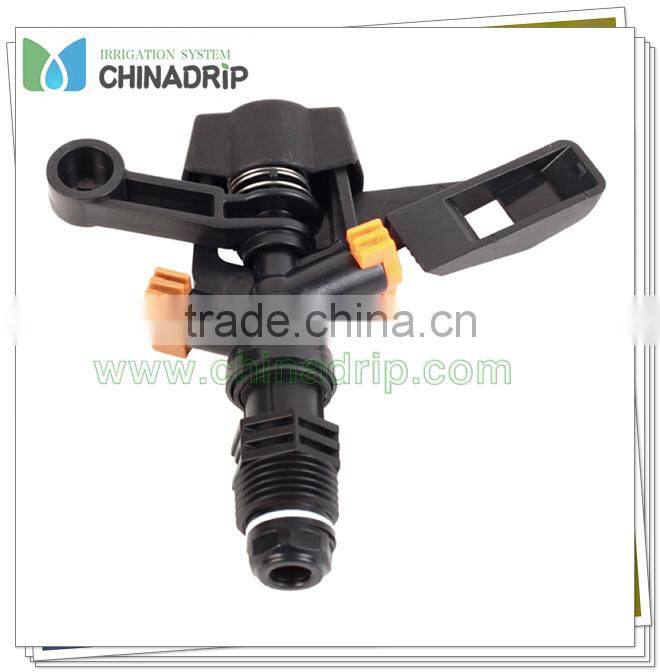

Plastic Undertree Rotating Sprinklers is 1/2" male impact plastic SD sprinkler with
low angle (12 ) and low volume.

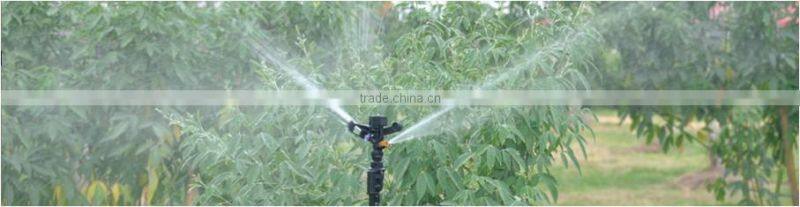

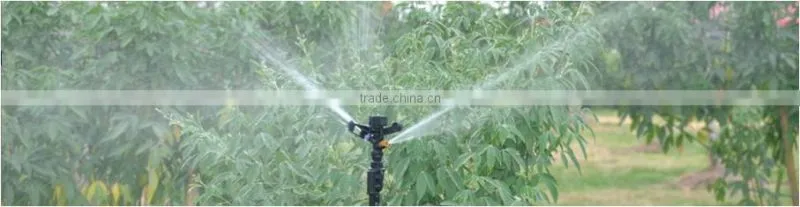

12° low angle body with lower trajectory for optimal undertree irrigation
Unique hammer with SD (super-diffuser) plate for uniform distribution
Plastic Undertree Rotating Sprinklers Operating pressure range: 2.0 – 4.0 bar
High uniformity even at low pressure (2.0 bar)
Color-coded bayonet nozzles for easy service
Resistance to UV radiation and accidental impact
Optional with Anti-theft adaptor

Item NO Nozzle Diameter Nozzle Color	Pressure (bar)	Single-nozzle Discharge (M3/h)	Double-nozzle Discharge (M3/h)	Spray Radius (m)	Item NO Nozzle Diameter Nozzle Color	Pressure (bar)	Single-nozzle Discharge (M3/h)		Double-nozzle Discharge (M3/h)	Spray Radius (m)
RS5022-2 2.5+1.6 Purple+Brown	2	0.32	0.47	9.5	RS5035-2 4.0+3.0 Black+Grey	3	1.02		1.45	13.0
	3	0.40	0.58	10.0		4	1.19		1.68	13.5
	4	0.47	0.67	10.0		5	1.34		1.88	14.0
RS5022-3 2.5+1.6 Orange+Brown	2	0.42	0.55	9.5	RS5035-3 4.5+3.0 Brown+Grey	3	1.29		1.66	14.0
	3	0.52	0.70	10.0		4	1.50		1.94	14.5
	4	0.60	0.81	10.0		5	1.69		2.18	15.0
RS5022-4 3.0+1.6 Purple+Brown	2	0.48	0.61	10.0	RS5035-4 5.0+3.0 Purple+Grey	3	1.58		1.95	14.5
	3	0.59	0.76	10.5		4	1.84		2.28	15.0
	4	0.69	0.88	10.5		5	2.07		2.56	16.0
RS5022-5 3.2+1.6 Red+Brown	2	0.54	0.68	10.5	RS5035-5 5.5+3.0 Orange+Grey	3	1.91		2.29	15.0
	3	0.68	0.85	10.5		4	2.23		2.65	16.0
	4	0.79	0.99	11.0		5	2.51		3.00	16.5
RS5022-6 3.5+1.6 Blue+Brown	2	0.64	0.78	10.5	RS5035-6 6.0+3.0 Red+Grey	3	2.21		2.57	15.0
	3	0.80	0..97	11.0		4	2.57		3.00	16.5
	4	0.94	1.14	11.0		5	2.90		3.38	17.0
RS5022-7 4.0+1.6 Black+Brown	2	0.82	0.95	11.0	RS5035-7 6.5+3.0 Gray+Grey	3	2.55		2.92	16.0
	3	1.03	1.20	11.5		4	2.97		3.40	17.0
	4	1.22	1.43	11.5		5		3.35	3.83	17.5
	4	1.22	1.43	11.5		5			3.83	17.5
