Help CenterDrip Irrigation Dynamic Mini Sprinkler With Spike Assembly Dripper
Related Products
-
3/4 Inch Farm Irrigation SprinklerUS$ 0.987 - 0.99MOQ: 100 Pieces -
1/2 Inch Male Plastic Sprinkler/field Irrigation Water SprinklersUS$ 0.683 - 0.697MOQ: 100 Pieces
-
Adjustable Umbrella Pattern Micro Sprayer With 5" Stake and 1/4" BarbUS$ 5.3 - 5.3MOQ: 100 Bags
-
Impulse Sprinkler Irrigation Head Nozzle Lawn Yard Garden Watering Spray HeadUS$ 0.683 - 0.99MOQ: 100 Pieces
-
Other Watering and Irrigation Type and Plastic Material Pop-up SprinklerUS$ 0.69 - 0.99MOQ: 100 Pieces

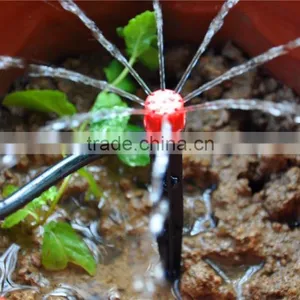

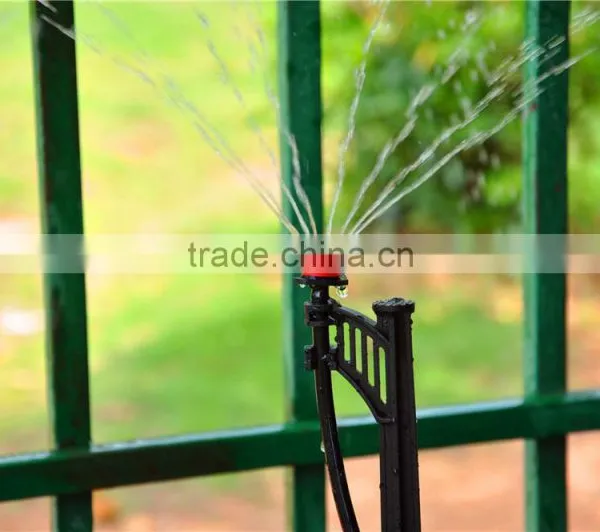

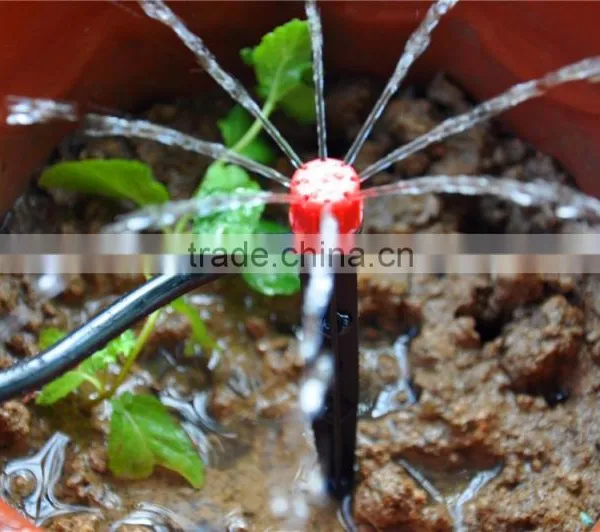

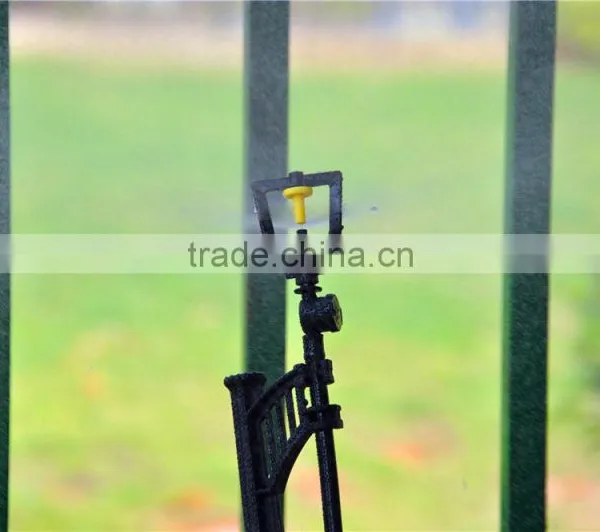

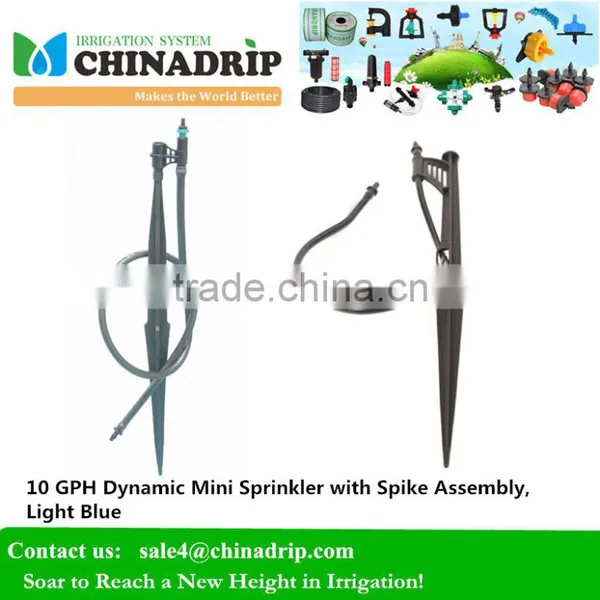

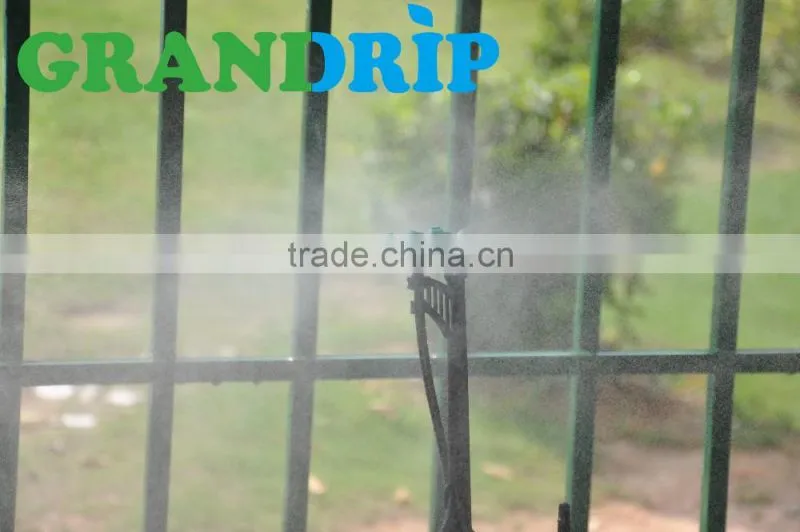

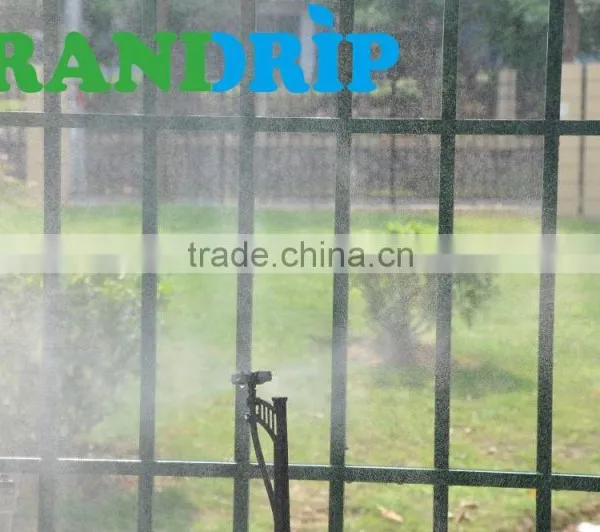

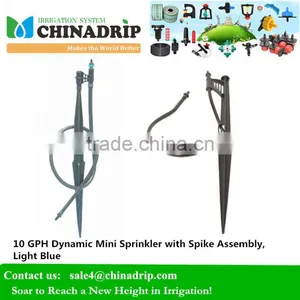

The 360 degree, 10 GPH, insect proof dynamic mini sprinkler with spike assembly is suited for irrigation of seedlings, flowerbeds, groundcovers, young saplings, mature trees, greenhouses, nurseries, and under tree canopies. The mini sprinkler comes fully assembled, including 13 inch spike, 24” micro tubing with .270 OD, and barb, and is available in five six rates.
SPECIFICATION
- Operating pressure: 25 to 35 PSI
- Flow rate: 10 GPH
- Flow rate available: 10, 15, 18, 24, 32 and 42 GPH
- Pattern: full circle 360°
- Color: light blue
- Diameter of coverage: 6' to 10'
- Droplet size: medium
- Assembly includes: 13 inch spike with press fit adapter, 24 inch micro tubing and ¼ inch barb
- Filter requirement: Up to 24 GPH 120 mesh and 24 GPH to 42 GPH 80 mesh
- Trajectory angle: approximately 30°
- Connections: Press Fit
- Materials: polyacetal
FEATURES
- The anti-insect spinner closes when irrigation cycle is complete
- Can operate upside down to reduce wetting diameter for young trees
- Dynamic operation ensures self-cleaning and prevents accumulation of deposits which make it desirable for irrigation in water containing iron and calcium
- Excellent performance with uniform water distribution
- Frame construction without a bridge provides a complete 360 degree circle
- Large water passage with six nozzles, achieving flow rates from 10 to 42 GPH
- Trouble free operation even at low pressure
- Can be mounted on a spike or on ½ inch base with press fit connections
DESCRIPTION
APPLICATIONS
INSTALLATION VIDEO
INSTRUCTION
Installation Recommendations
To install the mini sprinklers, first select the mini sprinkler color that reflects the desired flow rate and diameter. This press fit connection mini sprinkler on a spike assembly is installed every 6-8 feet or with one mini sprinkler per tree.
For best results in mini sprinkler overlapping of coverage, use spacing of 6 x 6 feet.
Mounting:. At the mounting location, punch hole into the drip tubing using a punch and insert the ¼ inch barb at the end of the micro tubing assembly into the drip tubing, then insert the attached stake into the ground for about 5-6 inches.

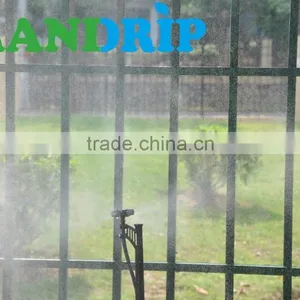

Use the dynamic mini sprinklers to water groundcover, flowerbeds, under young sapling canopies, mature trees, areas where drip emitters are not practical, such as hillsides, or where low volume overhead irrigation is desired.
Like drip emitters, the mini sprinklers operate at low pressure but have a larger range of flow rates and diameters. Mini sprinklers have a low flow application rate which helps prevent plant stress by maintaining low water tension in the soil.
To replace the mini sprinkler head, pull the mini sprinkler head out of the assembly and replace with a new same color head. Make sure to flush the line before inserting the new mini sprinkler head. No tools or glue are required.
| Item No. | SMS0230 |
|---|---|
| Qty(PC)/Bag | 10 |
| Qty(PC)/Carton | 250 |
| Package Size(CM) | 54*35*28(0.06CBM) |
| Shipping Weight(KG) | 14 |
| Package | Carton |
Package: Inner: poly bags; Outside: Corrugated Carton
Shipping Mark: Irrigation System
Customized Available: Yes
Items will be arranged within 6 hours upon payment cleared during business days (except Saturday, Sunday and public holidays). Unless there is an exception, you will be notified immediately via e-mail of any delays.
Chinadrip is one of the leading professional irrigation system manufacturer and service provider in China.
Being experienced in manufacturing and quality control, we supply a wide range of irrigation products to over 50 countries worldwide.
Our products include drip irrigation system and its related fittings, which are manufactured by advanced technology and materials of good quality applied widely in agriculture irrigation, landscape, family garden, sports facility and so no.
Grandrip has been training a team of professional staffs in design, technology, sales, customers’ services and quality control in the past 8 years. We are a group with strong integration who work toward the same goal: To provide for our customers the best services possible with the up-to-date technology support while maintaining our integrity and friendliness.
Our Mission:
To satisfy our customers with well-rounded services
To strengthen our products with state-of-the-art technology
To collaborate with our partners on the basis of mutual benefit
