Manufacturer Drip Irrigation System

Drip Irrigation Relative Products:

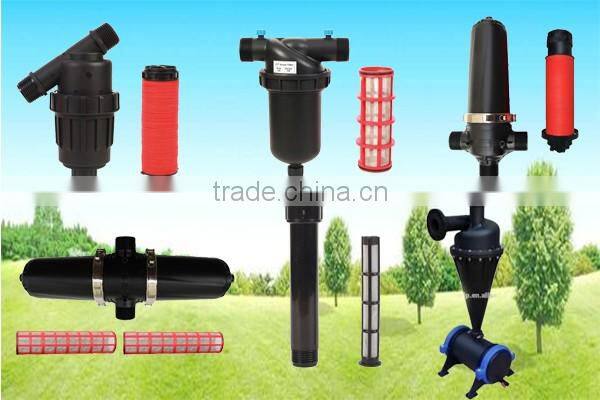

 1. Filter:Our Chinadrip has micro plastic filter,medium filter,large filter,and automatic filter.

Introduction and Application:

  With fiberglass shell and stainless steel locking hoop,this filter is beautiful and good at

resisting corrosion.Due to the enlarged filter element in size of 120 mesh,the flow rate of the

product can reach from 5 to 100 cubic meter per hour.With the centrifugal disc diversion

structure,it will form rotating centrifugal water flow in the cavity so as to prevent the impurities

attaching to the filtering element.As the pollutant carrying ability is improved,this product can

extend the cleaning cycle time as long as possible to reduce the total cost of system and

maintenance cost.

  Our product with combined automatic backwash system is widely used for irrigation system,

recycled water and segment treatment in the industrial and mining fields,food industry,etc.

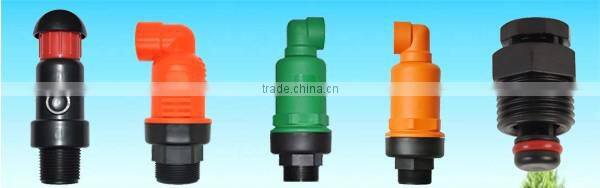

2. Air Valve:

  Our chinadrip air valve is mainly used to be connected to the irrigation pipelines firmly.

Apart from simple connector,this product is made of superior material so that it can be

compared with API products on quality with lower price.In additon,our chinadrip products

commonly apolied to inhale and exclude air,installed at the main pivot of the irrigation system,

such as the top of the sand filtration system to prevent the rapid changing of water pressure.

While the system is closed,it will inhale the air to avoid generation vacuum.

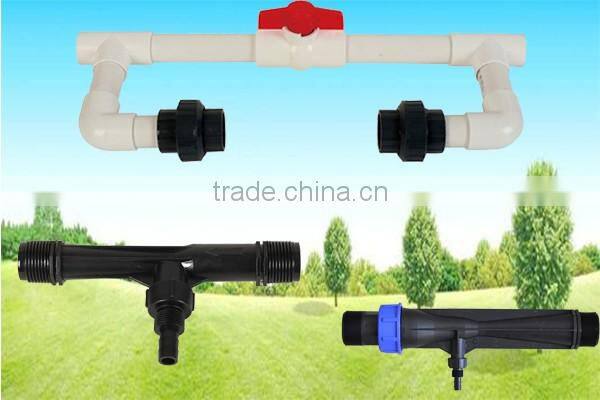

3. Fertilizer Injector

  Commercial grade one with no moving parts.
  It works by suction and will draw liquid fertilizer out of almost any container you provide.
  Can be plumbed on a bypass for less restriction(the preferred method),or directly into a main

water line.
  All sizes have Male Pipe threads on the inlet and outlet, which are easily adapted to hose threads.

  Select the appropriate specification of fertilizer Injector depend on the crop and irrigation area.

Too big or too small maybe do nothing.
  If in doubt always choose a smaller size, put it on a bypass assembly which allows you to adjust

the flow through the venturi injector and does not restricthe flow as much.

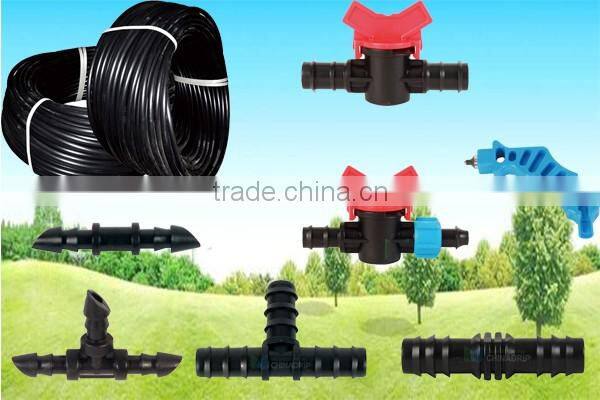

4. Pipe and fittings:

 Polyethylene hose manufactured from the highest garde of polyethylene resins, which provide

maximum resistance to UV degradation and stress cracking.
 Various diameters, coil lengths and working pressure are available for selection.
 Ideal for installation of mainline and sub-line in irrigation system.
