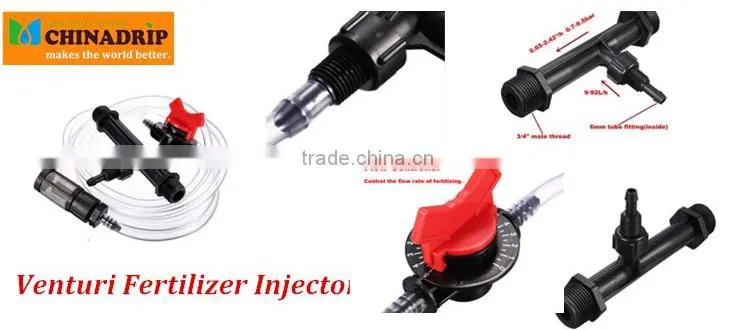

What is a Venturi Fertilizer Injectors?
-- A venturi is a device which creates a vacuum when fluid flows through it. The fluid which creates the vacuum is know as the motive fluid. The motive fluid for irrigation injectors is the irrigation water itself. Vacuum created by the venturi sucks fertilizer or chemical into motive water.
How to work a Venturi?
-- Our Venturi are water driven, ie they are driven by the pressure of the main irrigation pipeline. The energy to run these devices reduces the irrigation water pressure of the water line.
Applications:
--It is important to choose the model size carefully; too large and the unit will not draw the fertilizer at all,too small and you will restrict the flow of the system.

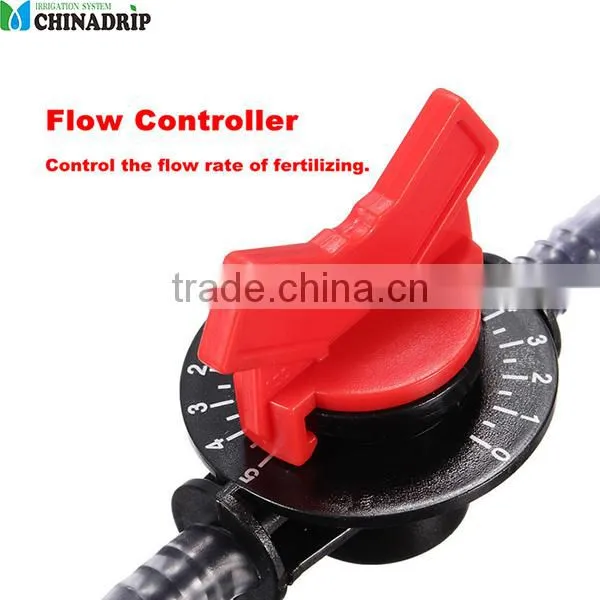

If in doubt always choose a smaller size, put it on a bypass assembly which allows you to adjust the flow throught the venturi injector and does not restrictthe flow as much.
Features:
-- Made of engineering plastic.
-- Excellent chemical resistance to most of the chemicals.
-- Highly efficient and compact differential pressure injection device.
-- Economical and low cost option.
-- Available in 3/4" BSP inlet/outlet connection.

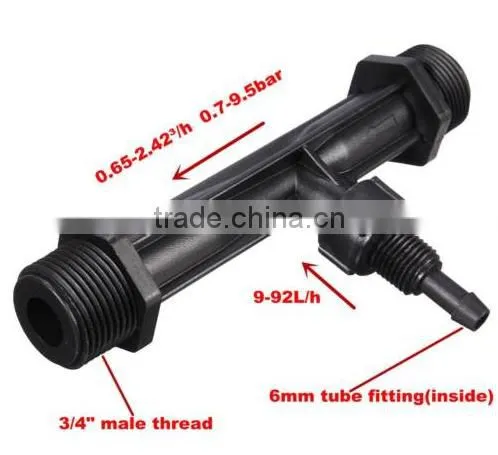

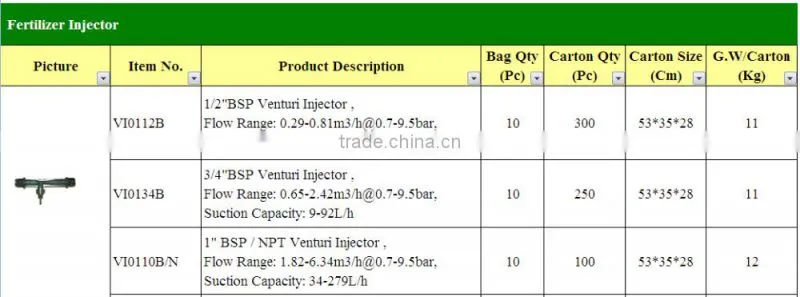

Specifications:
-- Inlet/outlet thread : 3/4''
-- Material: POM
--Size:139*72*33mm;
--Flow range:0.65-2.423/h 0.7-9.5bar
--Self-priming capability: 9-92L/h

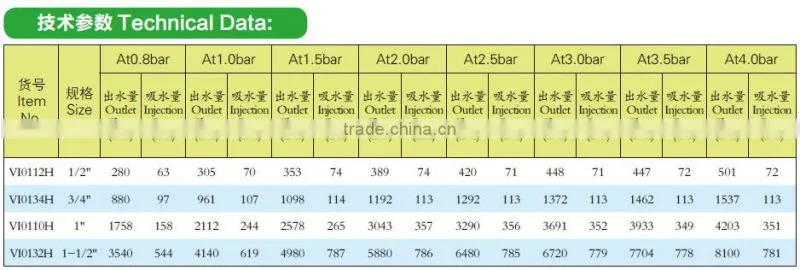

Note:Flow Range at 0.8-4.0 Bar with 50%Pressure Differential.

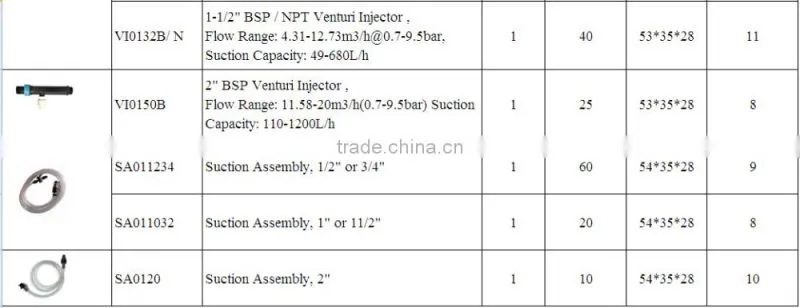

new size:VI0150H ( size is 2'')
Chinadrip Irrigation Equipment (Xiamen) Co.,Ltd., is one of the leading professional irrigation system
manufacturer and servicer in China.
With rich experience in both manufacturer and quanlity control, we supply wide range of irrigation products to over 50 countries worldwide.
Our Products Line
Our products include micro-sprinkler system,drip irrigation system,filter system,fertilizer system,garden watering kit, tubing and their fittings ect which are all manufactured by the advanced technology and good quanlity materials,widely apply in agricultural irrigation ,landscape,famliy garden, greenhouse and sport course and so on.
Our Experienced Team
Chinadrip has been training a team of professional staffs in design,technology, sales, customer services and quality control in the past 8 years. We are a group with strong integration who work toward the same goal: To provide our customer with the best services by not only the strong technilogy support but also intergrity and friendship.
