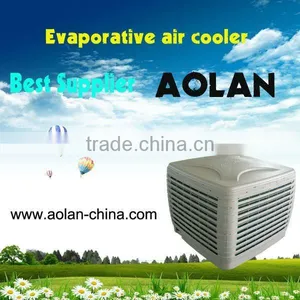

commercial air conditioner down discharge for industry
Model:AZL18-ZX32E(Down Discharge)
Characteristics
1.The casing is made of high strength weather ability polymers which is UV-proof,anti-aging,and resistant to deformation
2.Different air discharge type(including top,down and side)can meet different installation requirements of various applications.
3.Using specially designed axial fan,with large airflow,low noise,low energy consumption and wide applicability.
4.Using high quality aluminum housing motor,with good heat dissipation,high protection grade,waterproof and moisture-proof
5.Using automatic control of water system and opean type water distributor, so water can flow smoothly and distributor is not easy to block
6.Using highly efficient cooling pads with large evaporation capacity,good cooling efficiency and easy cleaning
Specification
| Specification | AZL18-ZX32E |
| Airflow (m3/h) | 18000 |
| Pressure (Pa) | 190 |
| Output(kw) | 1.1 |
| Power Resource (V/Hz) | 380/50 |
| Rated Currency (A) | 5.6 |
| Fan Type | Axial |
| Vent size(LxW)(mm) | 655*655 |
| Fan Speeds | 3-phase,2-speeds |
| Noise (dBA) | ≤76 |
| Dimension (LxWxH)(mm) | 1170*1170*960 |
| Pad size(LxWxH)(mm) | 675*860*100 |
| Net Weight (±3kg) | 84 |
| Operation Weight (kg) | 124 |
| Intellingt Cleaning | approval |
| Water Lack Protection | approval |
| Controller | LCD |
| Pre-dust Filter | Optional |
| Exhaust | Optional |
| Pre-cooling | Optional |
| Group-control | Optional |
| Tem&hum Control | Optional |
