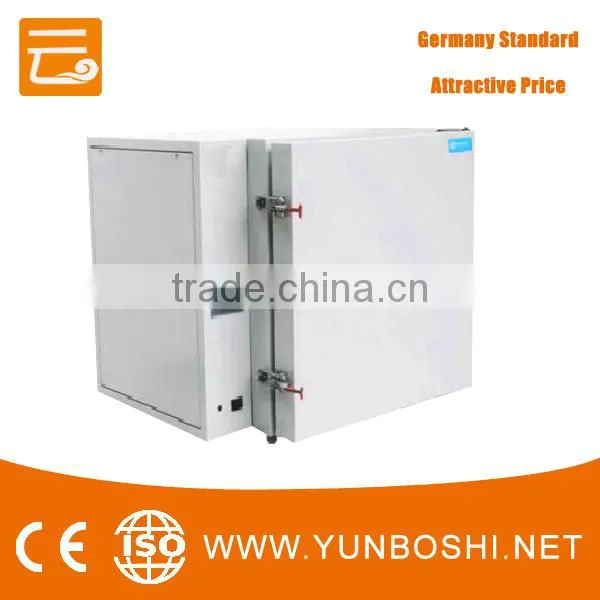

Industrial Use 500 Degree High Temperature Hot Air Oven

Name: Industrial Use 500 Degree High Temperature Hot Air Oven
Brand: YUNBOSHI
SKU: 138941375
Availability: InStock

Kunshan Yunboshi Electronic Technology Co., Ltd. Gold Verified Supplier

5Yrs

US$ 1,050 - 1,250 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

YUNBOSHI

Model Number:

BPH-9035A

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name YUNBOSHI

Model Number BPH-9035A

Power Electronic

Usage Other, Hot Air Circulating Drying Oven

Main Kinds of Drying Oven

Name	500 Degree High Temperature Hot Air Oven
model	BPH-9035A	BPH-9055A	BPH-9105A	BPH-9205A
voltage	220V 50HZ		380V 50HZ
power	2500W	2800W	4800W	6000W
Temperature range	BPH-9005A/RT+10~500°C
temperature resolution	0.1°C
volatility	≤±1°C
Inner size(mm)	320×320×320	350×350×400	450×450×450	600×600×600
Outer size(mm)	665×570×540	690×600×640	795×700×690	945×850×840
shelves	2
performance parameter test under no-load condition, under the strong magnetic, vibration is: the environment temperature is 20 °C, environment humidity 50% RH.

500 Degree High Temperature Hot Air Oven Characteristics

Chamber use brushed stainless steel material, four and a half circular arc form, shelves can automatic loading and unloading, to facilitate the cleaning job in the cabinet.
Using the latest P.I.D fuzzy logic controller, fast reach the set value,more accurate and stable operation.
Equipped with independent limit temperature alarm system, exceed limit temperature automatically interrupted, ensure the safe operation of the experiment, no accident (optional).
With 4 ~ 20mA current standard, RS485 interface can connect the recorder and computer, record the change of the temperature parameters of the condition (optional).
The box body with a diameter of 50 mm test holes left flank, is beneficially for the experimental operation and measuring temperature.
