Low price ring die and flat die wood pelleting machine with high quality
| Flat Die Small Wood Pellet Mill | |
|---|---|
|
Model: FP-M-150C Capacity : 90-120 kg/h Power : 4 Kw Weight :95/110 Kg Dimension : 1000*480*780 mm |
|
Model: FP-M-200C Capacity : 200-300 kg/h Power : 7.5 Kw Weight :200/230 Kg Dimension : 1050*550*830 mm | |
|
Model: FP-M-230C Capacity : 300-400 kg/h Power : 11 Kw Weight :290/320 Kg Dimension : 1200*560*950 mm | |
|
Model: FP-M-260C Capacity : 400-600 kg/h Power : 15 Kw Weight :320/360 Kg Dimension : 1240*580*1000 mm | |
|
1) The pressure is larger and adjustable. So it can make more type of pellets such as sawdust, rice husk, straw, cottonseed husk, weeds and all kinds of crop straw and plant waste.
2) Low energy consumption and easy operation. which is especially suitable for small farms in the area of shortage of electricity.
3)Small and lightweight, making small-scale production possible. | |

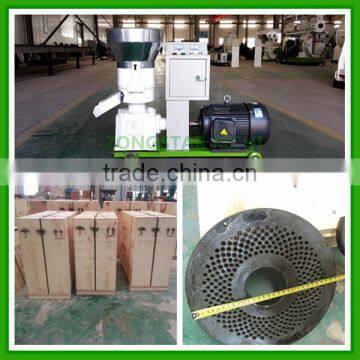

the flat die and the roller are made of special durable material.

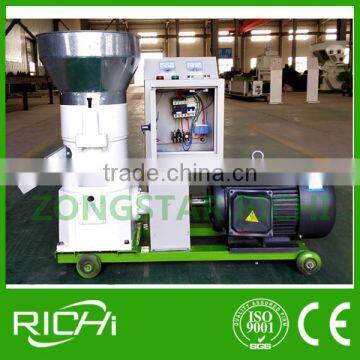

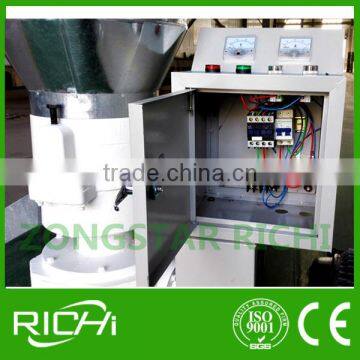

Detail of the electric control panel and the package.
♦ The raw material could be branches, wood chips, coconut sheel, nut sheel, rice or wheat straw, bean stem, biomass wood sawdust, etc.
♦ If we choose raw material as hay, forage grass, alfalfa, moringa oleifera, etc. we will get the final product silage fodder.
♦ We could produce the wood pellet with different diameter by using different size of ring die mould. the range of the diameter could be ø 6mm-10mm.
♦ The length of the wood pellet is adjustable. there is a regulating device on the biomass wood sawdust pellet mill machine.
| You may need: the ring die wood pellet mill | |
|---|---|
|
Model: 350, 420, 508 Remarks: 1) the Model number means the diameter of the ring die of the feed pellet machine 2) the diameter of the final product pellet is Φ6-10 mm. |
|
Model: 350 Capacity : 0.5-0.8 t/h Power : 55 Kw Weight :3500 Kg Dimension : 2500*1100*1600 mm | |
|
Model: 420 Capacity : 1-2 t/h Power : 110 Kw Weight : 4000 kg Dimension : 2800*1150*1730 mm | |
|
Model: 508 Capacity : 1.5-2.5 t/h Power : 160 Kw Weight : 4500 kg Dimension : 3000*1260*1860 mm | |
See more detail of ring die wood pellet mill. | |
1) How did you define your straw pellet press, pellet wood press machine model as 150/200/230/260, etc. ?
The model is defined based on the diameter of the ring die mould.
For example, mould 250 means that the diameter of the ring die is 250 mm.
2) what kind of raw material that the ring die mould is made of?
There are two kinds of ring die mould in the market. one is made of carbon steel, the other is made of stainless steel. the former is cheaper than the latter.
We adopt stainless steel ring die and press roller sheel in our machine.
3) what about the size of the final product wood pellet?
the size is adjustable accroding to your requirement.
the diameter range of the wood sawdust biomass pellet is ø6-10 mm by using different size of ring die mould.
the length of the biomass wood sawdust pellet could be adjusted on the machine.
5) What is the suitable moisture (water content) of the raw material that easy to make pellet?
the ideal moisture range is from 15% to 18% .
6) What brand of motors you used in the machine?
We use Siemens brand motor in our machine. please rest assured about the quality.
7) what about the power, capacity, size and weight of the straw pellet press machine?
Please refer to the above technical parameter table to get the detail.
If you want the details of ring die wood pellet mill machine, please click.
8) will you dispatch engineer to install the wood sawdust biomass pellet mill machine (production line)?
Yes. we will dispatch engineer to do the service just based on the requirement of customers.
9) where is your factory located? how could I get there?
Our factory is located in Zhengzhou, Henan, China. It's 30 km far from the airport. we will pick you up at the airport.
1) What's your raw material?
2) What about the maximum size and major size of the raw material?
3) What about your expecting size of the final product wood sawdust biomass pellet?
3) what about the capacity? (how many ton per hour or day or year?)
4) are you the final user or you will sell the machine to others?
| Related Machine | |
|---|---|
|
|
|
♦ Wood chipper machine cut and chip the wood raw material into chipps. ♦ There are two main type of wood chipper machine, one is drum wood chipper machine (same as the above picture); the other is disk wood chipper machine. ♦ See more detail of our wood chipper machine.
|
♦ The function of wood crusher machine is to crush and grind the smaller size of wood chips into wood sawdust powder. the next process is pellet making. ♦ we have one kind of wood crusher machine that integrated the function of wood chipper and wood crusher. this model is suitable for smaller original size of the raw material. ♦ See more detail of our wood crusher machine. |
| You may need: Biomass sawdust wood pellet production line | |
|---|---|
|
Choose Your Capacity |
| 0.5-0.8 ton / hour | |
| 1-1.5 ton / hour | |
| 1.8-2 ton / hour | |
| 3 ton / hour | |
| 4 ton / hour | |
♦ We, Henan Richi Machinery Co., Ltd. was established in 1995, Has served Europe, North America, Africa, Middle East, Asia for ten years. Our products have been sold to many countries all over the world.
♦ The head office was located in Zhengzhou, Henan Province.
♦ As a professional flat die straw pellet press, pellet wood press machine supplier, Henan Richi can always meet different customers' requirement.
♦ We understand how important the quality is, and we also understand the importance of timely shipping.
♦ We know how to survive and develop, because we always focus on the long-term development.
♦ 2015 China biomass sawdust wood pellet mill Industry Expo was held at Nanjing International Expo Center.
♦ Many international copanies were take part in the exhibition.
To make sure the biomass sawdust wood pellet mil delivery to you at the best condition, we adopt the considerate way to protect the equipment very well. We consider our products just as our children.
HENAN RICHI MACHINERY CO., LTD
Name: Vicky Chen
Skype: richi.sarah
Mobile:+86 13598016231(wechat, whatsapp)
Tel: +86 371 63379734; Fax: +86 371 63752859
http://hnrichi.en.china.cn;
Please Leave your requirement at the bottom.
1) About the Compression Ratio of the ring die mould.
define "L" as the effective hole length of the ring die.
define "D" as the effective hole diameter of the ring die.
the Compression Ratio = L / D.
The higher Compression Ratio, the more compact that the biomass sawdust wood pellet will be, and the pelleting speed will be reduced accordingly.
