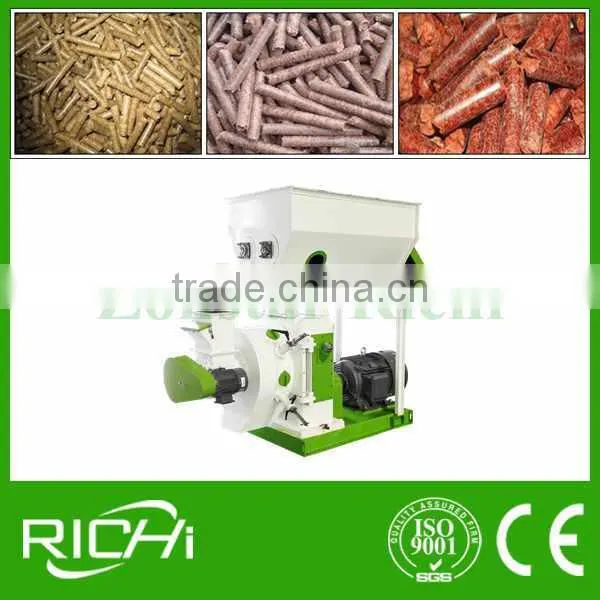

China supplied wood pellet machine for producing biomass pellet
Dear frind, If this Model is not suitable for you, Don't worry,
leave a message to tell me your requirement, I will offer our other model to you.
Believe me, you must could get the right one from us.
| Small biomass sawdust wood pellet machine | |
|---|---|
|
Model: 350, 420, 508 Remarks: 1) the Model number means the diameter of the ring die of the feed pellet machine 2) the diameter of the final product pellet is Φ6-10 mm. |
|
Model: 350 Capacity : 0.5-0.8 t/h Power : 55 Kw Weight : 1000kg Dimension : 2500X1100X1600mm | |
|
Model: 420 Capacity : 1-2 t/h Power : 110 Kw Weight : 2500 Dimension : 2800*1150*1730 mm | |
|
Model: 508 Capacity : 1.5-2.5 t/h Power : 160 Kw Weight (kg):3500 Kg Dimension : 3000*1260*1860 mm | |
| Pelleting process working principle | |
|---|---|
|
|
|
♦ The main motor drive the ring die mould rotated. the press roller that were placed inside of the roller does not revolution, but will rotate because the friction of the ring die mould and wood powder raw material. ♦ The wood sawdust powder raw material was spread evenly into the space between the ring die and roller, and was press into the mould hole, formed column shape pellet, the pellet will rotate along with the rotating ring die mould and will be cutted when the length of the column pellet reach to a certain value. | |
♦ The raw material could be branches, wood chipper, coconut sheel, nut sheel, rice or wheet straw, bean stem, wood sawdust, etc.
♦ If we use the raw material hay, forage grass, alfalfa, alfalfa, moringa oleifera, etc. we will get the final product silage fodder.
♦ We could produce wood pellet with different diameter by using different size of ring die mould. the range could be ø 6mm-10mm.
♦ The length of the wood pellet could be adjusted. there is a regulating device on the wood pellet machine.
To make sure the small sawdust biomass wood pellet machine delivery to you at the best condition, we adopt the considerate way to protect the equipment very well. We consider our products just as our children.
♦ 2015 China Biomass Sawdust Wood Fellet Machine Industry Expo & Animal Feed Production Promotion was held at Nanjing International Expo Center.
♦ Many international copanies were take part in the exhibition, such as Muyang, DSM, Adisseo, Zhengchang, Buhler and CP Group.
1) what about the size of the final wood pellet product?
the size is adjustable accroding to your requirement.
the diameter range of the wood pellet is ø6-10 mm by using different ring die mould.
the length of the wood pellet could be adjusted on the machine.
2) What is the suitable moisture (water content) of the raw material that easy to make pellet?
the ideal moisture range is from 15% to 18% .
3) will you dispatch engineer to install the wood pellet machine (production line)?
Yes. we will dispatch engineer to do the service just based on the requirement of customers.
4) where is your factory located? how could I get there?
Our factory is located in Zhengzhou, Henan, China. It's 30 km far from the airport. we will pick you up at the airport.
1) What's your raw material?
2) What about the maximum size and major size of the raw material?
3) what about the capacity? (how many ton per hour or day or year?)
4) are you the final user or you will sell the machine to others?
| Related Machine | |
|---|---|
|
|
|
♦ Wood chipper machine cut and chip the wood raw material into chipps. ♦ There are two main type of wood chipper machine, one is drum wood chipper machine (same as the above picture); the other is disk wood chipper machine.
|
♦ The function of wood crusher machine is to crush and grind the smaller size of wood chips into wood sawdust powder. the next process is pellet making. ♦ There are two kind of wood crusher machine, one is the normal, the suitable raw material is smaller size, such as wood chips, nut shell, etc. the other one is Two-in-One wood crusher, which integrated wood chipper and wood crusher. |
