CE Approved Low Energy High Efficiency 4-6 t/h Disc wood chipper Biomass wood chips making machine
| Disc wood chipper Biomass wood chips making machine | |
|---|---|
|
Model: R-800 Capacity : 3-5 t/h Power: 30 KW Feed size: 200*200 mm Weight : 1680 kg Dimension : 1800*700*1200 mm |
|
|
Model: R-1000 Capacity : 4-6 t/h Power: 37 KW Feed size: 300*320 mm Weight : 2720 kg Dimension : 2100*1000*1300 mm | |
|
Model: R-1200 Capacity : 6-8 t/h Power: 45 KW Feed size: 330*350 mm Weight : 3560 kg Dimension : 2200*1200*1850 mm | |
|
Model: R-1400 Capacity : 8-10 t/h Power: 55 KW Feed size: 360*370 mm Weight : 4120 kg Dimension : 2600*1300*1900 mm | |
|
1) the Disc wood chipper Biomass wood chips making machine is composed by main body, blade disc, feeding inlet mouth, cover, electrical control system, etc.
2) there are two kinds of feeding direction model: one is horizantal feeding, the other is incline feeding. there are two kinds of discharging model: top discharge and bottom discharge. it will depend on your requirement.
3) the Disc wood chipper Biomass wood chips making machine is suitable for Logs, branches, slab, waste veneer, bamboo, cotton stalk and other non-wood fiber stems etc.
4) The Disc wood chipper Biomass wood chips making machine is widely used in wood chips production of the paper mill, particle board, fiber board factory, biomass wood pellet production line, electric power station, etc. | |

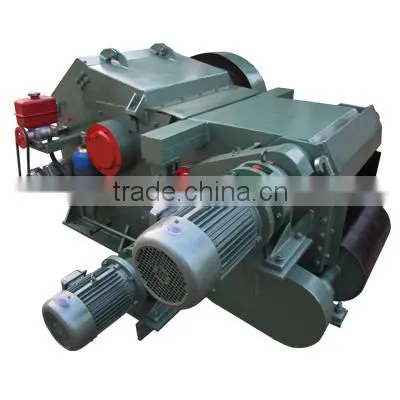

| drum Disc wood chipper Biomass wood chips making machine | |
|---|---|
|
Model: BX-215 Capacity : 3-5 t/h Power: 54 KW Feed size: 160*400 mm Wood chip size: 30 mm Weight : 2990 kg Dimension : 1470*1550*970 mm |
|
Model: BX-216 Capacity : 8-10 t/h Power: 65 KW Feed size: 230*500 mm Wood chip size: 30 mm Weight : 5030 kg Dimension : 1800*1900*1210 mm | |
|
Model: BX-218 Capacity : 14-18 t/h Feed size: 300*600 mm Power: 120 KW Wood chip size: 30 mm Weight : 7000 kg Dimension : 2200*2150*1500 mm | |
Know more detail information of Drum Disc wood chipper Biomass wood chips making machine , | |
the blade knife and the blade disc, bolt and all of the other main part are made of special alloy metal, which possess the advantage of durable, wear-resisting, etc.
♦ The raw material could be logs, branches, coconut sheel, bean stem, slab, waste veneer, bamboo, cotton stalk and other non-wood fiber stems, etc.
♦ the size of the final wood chipps is less than 30 mm.
1) How did you define your Disc wood chipper Biomass wood chips making machine model as 800 / 1000 / 1200 / 1400 etc. ?
The model is defined based on the diameter of the blade disc.
For example, mould 800 means that the diameter of the blade disc is 800 mm.
2) what is the driving model of the Disc wood chipper Biomass wood chips making machine?
The driving model could be electricity and diesel engine. it could be customized according to your local condition.
3) could the blades of Disc wood chipper Biomass wood chips making machine be movable?
Yes, It could be. but need to customize.
1) What's your raw material?
2) What about the maximum size and major size of the raw material?
3) what about the capacity? (how many ton or kg per hour?)
4) are you the final user or you will sell the machine to others?
| Related Machine | |
|---|---|
|
|
|
1) wood crusher machine crush and grind the smaller size of wood chips into wood sawdust powder.
2) the next process of wood crusher is wood pellet making.
3) get more detail of wood crusher machine. |
1) the previous process of the wood pellet mill is wood crusher.
2) the wood pellet mill machine make the wood sawdust into wood pellet.
3) get more detail of wood pellet mill machine. |
| You may need: wood pellet production line | |
|---|---|
|
Choose Your Capacity |
| 0.5-0.8 ton / hour | |
| 1-1.5 ton / hour | |
| 1.8-2 ton / hour | |
| 3 ton / hour | |
| 4 ton / hour | |
♦ We, Henan Richi Machinery Co., Ltd. was established in 1995, Has served Europe, North America, Africa, Middle East, Asia for ten years. Our products have been sold to many countries all over the world.
♦ The head office was located in Zhengzhou, Henan Province.
♦ As a professional wood pellet machine and complete plant project solution supplier, biomass plywood wood chipper machine are parts of our main products. Henan Richi can always meet different customers' requirement.
♦ We understand how important the quality is, and we also understand the importance of timely shipping.
♦ We know how to survive and develop, because we always focus on the long-term development.
♦ 2015 China Biomass Wood Fellet Making Industry Expo & Animal Feed Production Promotion was held at Nanjing International Expo Center.
