Disk Type Biomass Wood Chipper Machine/Wood Chipper Diesel :
Feature of diesel biomass wood chipper machine :
1.Component: base frame, inlet cutting blades, knives, plates, shells, and electronic control.
2.Capability: produce chips of different sizes and thickness.
3. Application: chip logs, slab, veneer, bamboo, brushwood, corn stalk, cotton stalk, reed and other
non wood fiber stalk into requirement size;
4. Specification of wood: length 15~20mm thick 3~5mm, width is not limited, but also do not exceed 20mm.
Wood chip rate request is greater than 85%, skin pass rate requirement is greater than 75%. Technical
Technical Parameters of diesel biomass wood chipper machine :
Mold |
Output capacity(t/h) |
Main motor power(kw) |
Weight(kg) |
Main motor speed(r/min) |
Knives diameter(mm) |
Blade size(mm) |
R-500 |
1-2 |
7.5 |
120 |
600 |
500 |
3 |
R-600 |
2-3 |
15 |
380 |
650 |
600 |
2-4 |
R-700 |
3-5 |
22 |
480 |
600 |
700 |
2-4 |
R-800 |
5-6 |
30 |
550 |
550 |
800 |
4 |
R-950 |
6-8 |
37 |
800 |
550 |
950 |
4 |
R-1100 |
8-12 |
45 |
1650 |
600 |
1100 |
4 |
R-1210 |
10-12 |
75 |
2100 |
600 |
1210 |
4 |
R-1410 |
15-20 |
90 |
2800 |
600 |
1410 |
4 |

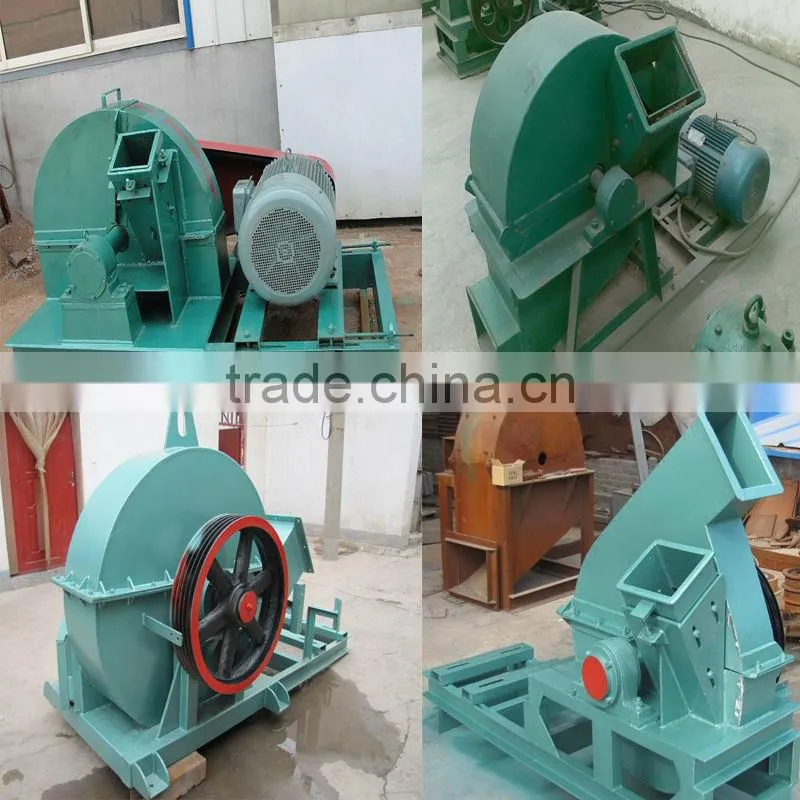

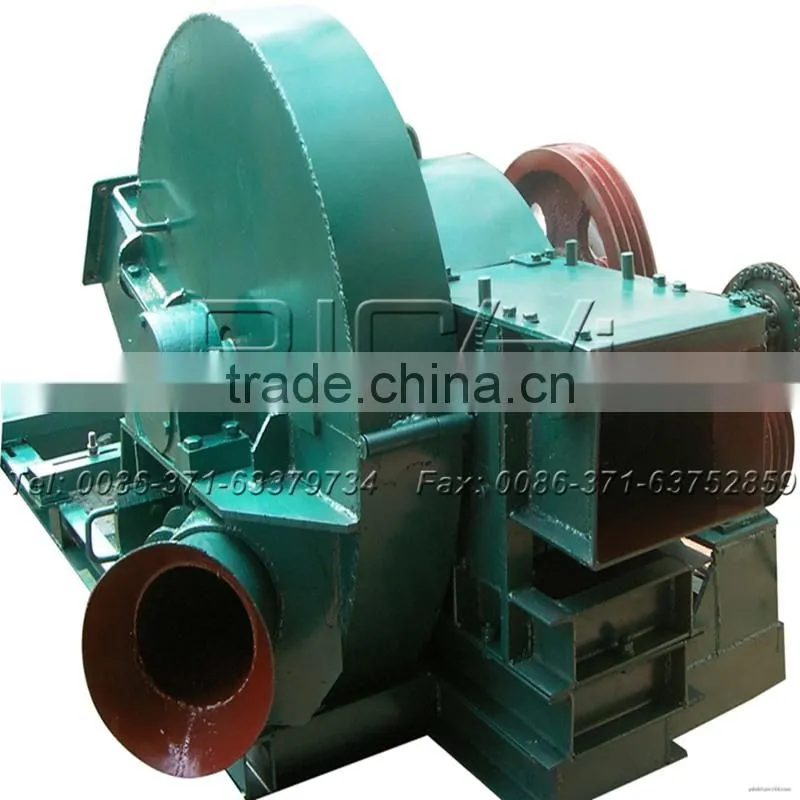

Details for diesel biomass wood chipper machine :
Turn-key example for diesel biomass wood chipper machine :

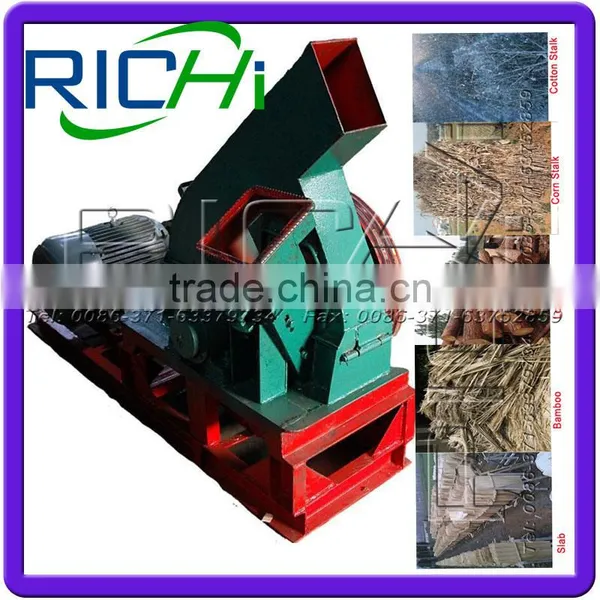

Raw material for diesel biomass wood chipper machine :
Final products of diesel biomass wood chipper machine :
Packing details for diesel biomass wood chipper machine :
1. Wooden or metal case according to specific size of each diesel biomass wood chipper machine, we twine thick plastic coating for each machine.
2. Tight the equipment in the truck without space to ensure no rubbing during the transportation.

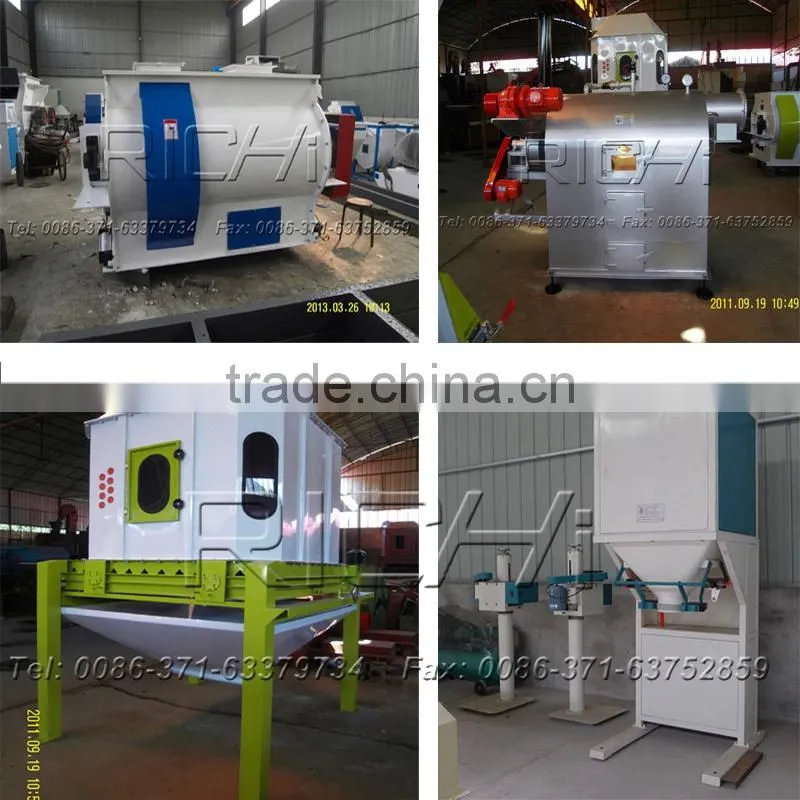

We also produce following products:
Operating instructions for diesel biomass wood chipper machine :
1.The operator should understand the diesel biomass wood chipper machine structure, and be
familiar with the chipper machine performace and operation methods.
2. Please carefully check each connection parts to avoid loose phenomenon.
3.With uniform feeding during the production rather than suddenly more or less to guarantee the motor work
under rated load.
4.If strong vibration appears in the operation process, you should immediately stop the machine and find out the
reasons, then continue .
About Richi:
Henan Richi Machinery Co., Ltd was established in 1990.
After 23 years’ development and innovation since our factory established, we are becoming more and more
professional in manufacture and installation. During those years, our factory have obtained over 20 Product
Patents in the pellet series machines, such as in the crusher, curing machine, water feeder, and the
precleaners.The detailed patent numbers can be found in our patent column. (Patent No.such as:
ZL 2012 2 0349402.9, ZL 2012 2 0349367.0,ZL 2011 2 0290111.2,ZL 2011 2 0290114.6)
About our Service:
1.We insist on "Quality is the soul of company", we own outstanding R&D team with the sense of innovation and
cooperation.
2.Our professional service includes: Free training, Guidance Installation and Debugging.
3.Guaranteed Time: One Year (Calculated from the goods arrived the destination port.
4.If you have any question, please contact us freely. Our after-sales service team on line ,we will do the best
to accomplish your sincere requirement on time.
