Turnkey Fully Automatic 1-2 t/h Pig feed pellet processing line
Equipment Required to the animal feed production line
Feed Grinder →Feed Mixer → Feed Pellet Mill → Counterflow Cooler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine
Features of Animal Feed Pellet Production Line:
2. Low price ,high quality,best service
3. Advantages: Energy saving,304 stainless steel, speed can be adjusted;
4. Application: Can be used for wood pellet, poultry feed pellet,aquatic feed pellet;
5. Features: Stable operation,high efficiency,high productivity from 1T-10T/hour;
6. Pellet diameter: 6mm-12mm.
Technical Parameters:
Name |
complete pellet production line |
Capacity |
1-50 ton/hour |
Color |
blue and white |
Pellet feed size |
2-12 mm |
Form rate |
≥98% |
Water content of the product |
≤10% |
Steam pressure |
0.4~0.6Mpa |
Staffing |
5~6 people |
Production Section of Animal Feed Pellet Production Line
The Animal Feed Pellet Production Line consists of 6 sections
1.Crushing Section of Animal Feed Pellet Production Line
When the thickness of the raw material is >5 mm, the raw materials must first be used for size reduction before the feedstock is sent to the hammer mill (crusher) to reach a diameter of less than 3 mm.

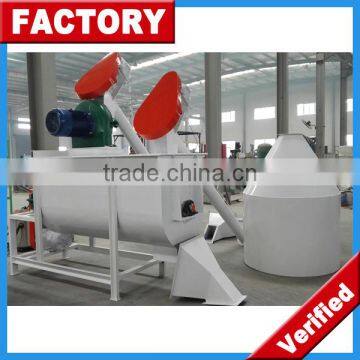

2.Mixing Section
Two open doors structure, discharge rapidly, no leakage, no residue. Multiform liquid adding system and can be matched with compressed air jetting system Suitable for mixing premix, poultry feed, aquatic feed, additives and chemical and medicine industries, etc
3.Pelletizing Section
Acting as the heart part of the whole processing line, ring die pellet machine adopts mechanical feed, high speed rotating centrifugal distribution into the granulating chamber, through the scraper to distribution materials, feeding uneven. but the finished products have strong internal structure and smooth surface.
4.Cooling Section
After the pelletizing process, the temperature of the feed pellet is about 60-80 degrees Celsius, with a moisture content of about 15%.A Cooler must then be used to reduce
the moisture content of the wood pellets to about 3-4%, thereby making the wood pellets easier to store.
5.Classifying screen of Animal Feed Pellet Production Line
It is applicable for screening and classifying of mash or pellet feed. It is also can be used for
cleaning of raw materials and classifyingof semi finished products after second grinding
by large and medium feed mills.
6.Packing Section of Animal Feed Pellet Production Line
After cooling and screening, the feed pellet must be protected from moisture and other environmental conditions. For this there is the packing process, which is effectively handled by our Semi-Auto Packing Machine.
Flow Chart of 10t/h Feed Pellet Production Line
Company Introduction
Henan Richi Machinery Co., Ltd was established in 1990.
Our company is a qualified manufacturer which specializes in developing, producing and marketing topclass wood machinery, wood pellet production line, wood curing machines, various biomass granule production lines designation, manufacturing and installation.
There are over 500 workers in our company, among them there are about 80 engineers and over 100 technician.
Our outstanding Richi Team and strict and scientific management system, which enable us to supply high quality and convenient turn- key projects to our clients.
Our Service
1. Reply your inquiry within 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers.
Shipping & Packing
Workshop Show
Key Project of Production Line
Welcome to Visit Our Factory
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 23 years of experience in this industry.
2. Q: How can I get to your company?
A: You can get a flight to Xinzheng Airport. We are just about 40- 50mins away from Xinzheng Airport.
3. Q: How long is your warranty time?
A: One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Do you have some foreign customers using your equipment?
A: yes, we have.our company has established business relationships with customers in Russia,German,Slovakia,Ukraine,Vietnam,Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt, Iraq, Iran,Jordan,Saudi Arabia,Syria, Libya etc.
