China Manufacturer 1-20T/H Poultry and Cattle Feed Production Lines
- 30 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | RICHI |
Model Number: | Pellet Line | Type: | Feed Pellet Machine | Voltage: | can be customized |
Power(W): | According to the model | Dimension(L*W*H): | According to the model | Weight: | 500000 kg |
Certification: | CE ISO | Warranty: | free in one year,free permanent technical support | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China Manufacturer 1-20T/H Poultry and Cattle Feed Production Lines
♦ We, Henan Richi Machinery Co., Ltd. was established in 1995, Has served Europe, North America, Africa, Middle East, Asia for ten years. Our products have been sold to many countries all over the world.
♦ The head office was located in Zhengzhou, Henan Province.
♦ As a professional poultry animal feed machine and complete feed plant project solution supplier, Henan Richi can always meet different customers' requirement.
♦ We understand how important the quality is, and we also understand the importance of timely shipping.
♦ We know how to survive and develop, because we always focus on the long-term development.
3 t/h Complete Poultry and Cattle Feed Production Lines drawing map | |
---|---|
Main Equipment | Main Specification |
1) Hammer mill: SWSP56-30 2) Mixing machine : SHW1.0 3) Pellet mill: SZLH 250 4) Conditioner: STZJ35*200 5) Colling machine: SKLN14*14 | Total power: 120 kw Steam consuption: 0.5T boiler Qty. of container to load: Total Weight: |
For further detail information about the 3 t/h poultry and cattle feed production lines, please leave a message to us at the bottom to tell your detail requirement. we will send all the detail as soon as possible.
For targeted help, please tell us: 1) What kind of animal that you produce feed for? 2) What are your main raw material? 3) what about the capacity you want to get? (how many ton per hour or day or year? 4) are you the final user or you will sell the machine to others? |
Complete Poultry and Cattle Feed Production Lines | |
---|---|
Click to View Other Capacity | |
1-2 ton / hour | |
5 ton / hour | |
10 ton / hour | |
20 ton / hour |
♦ 2015 China Feed Industry Expo & Animal Production Promotion was held at Nanjing International Expo Center. the Expo was organized by National Animal Husbandry Service and China Feed Industry Association.
♦ Many international companies were take part in the exhibition, such as China supplier Muyang, DSM, Adisseo, Zhengchang, Buhler and CP Group, etc.
♦ The scope of the exhibition includes feed ingredients, feed and feed additives, animal feed, poultry feed, feed processing machinery and equipment, animal health products, veterinary drugs, pharmaceutical additives, poultry processing equipment, and animal husbandry machinery and equipment.
To make sure the animal feed pelletizing machine, chicken poultry feed mill delivery to you at the best condition, we adopt the considerate way to protect the equipment very well. We consider our products just as our children.
1) Could the animal feed machine be used for different kinds of animal and poultry?
Yes. of course.
What we need to do is just have different size of ring die mould according to the requirement of different animal and poultry. and the replacement of the ring die mould is very easy. It could produce feed for chicken, pig, cow, cattle, goat, rabbit and fish, etc.
2) what kind of raw material that the conditioner and the ring die mould are made of?
Both of the conditioner and ring die mould in our macine are made of stainless steel. should to note that there are some suppliers in the market adopt carbon steel. please pay more attention on this point, lest the unexpected trouble.
3) What is the suitable moisture (water content) of the raw material that easy to make feed pellet?
the ideal raw material moisture range is from 15% to 18% .
6) What brand of motors you used in the machine?
We use Siemens brand motor in our machine. please rest assured about the quality.
7) will you dispatch engineer to install the poultry and cattle feed production lines?
Yes. we will dispatch engineer to do the service just based on the requirement of customers.
8) where is your factory located? how could I get there?
Our factory is located in Zhengzhou, Henan, China. It's 30 km far from the airport. we will pick you up at the airport.

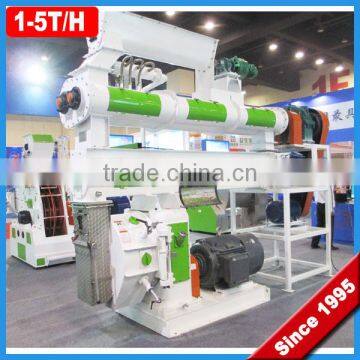

Poultry and Cattle Feed Pellet Making Machine | |
---|---|
Model: 250 Capacity : 0.5-2 t/h Power : 22 Kw Weight : 1000kg Dimension : 1420*1200*1400 mm | |
Model: 320 Capacity : 2-4 t/h Power : 37 Kw Weight : 2500 Dimension : 2200*1000*1500 mm | |
Model: 350 Capacity : 3-6 t/h Power : 55 Kw Weight (kg):3500 Kg Dimension (mm): 2500*1100*1600 mm | |
Model: 420 Capacity : 6-14 t/h Power : 110 Kw Weight (kg):4000 Kg Dimension (mm): 2800*1150*1730 mm | |
Pellet feed mill machine is the key equipment in the poultry animal feed pellet mill plant. Click to view more detail. |
Hammer mill & Mixing machine | |
---|---|
Hammer mill machine crush and grind the raw material into feed powder. Click to view more detail. | Mixing machine mix different kinds of powder feed and additive evenly. Click to view more detail. |
Contact us: | |
---|---|
Tel:0086-371-63752859 | |
Mobile:0086 13598016231 | |
manager:vickey chen | |
skype:richi.sarah | |
Web: |
1) About the Compression Ratio of the ring die mould.
define "L" as the effective hole length of the ring die.
define "D" as the effective hole diameter of the ring die.
the Compression Ratio = L / D.
The higher Compression Ratio, the more compact that the animal poultry feed pellet will be, and the pelleting speed will be reduced accordingly.
2) Ring die failure cause analysis
Pellet mill machine is the key equipment in poultry and animal feed pellet producing process. The ring die mould is the heart part of pellet mill machine, and it's one the most easy wearing spare parts as well.
Since the ring die mould work with friction all the time. the ring die mould will be wearing and finally failure along with the throughput increasing. the handling capacity is one of the main performance index for the ring die mould.
theoretically, one set of ring die mould and one pair of press roller could produce 2000 ton and 500 ton feed pellet. but in practice, even the poultry and animal feed factory whose management very well could reach to 1500 ton and 300 ton respectively. and for those poor-management one, the value is only 600 ton / 100 ton.
After a period of working, the hole inside wall friction losses increased,
A) the diameter of the hole increased, and the diameter of final product animal feed pellet exceed the specified value.
B) the scraggly of the hole inside wall get worse, the feed raw material will easy to block, the capacity will decrease.
C) the thickness of the hole wall will be reduced, the structural strength will be highly reduced.
