Powder State With Moisture 40%-50% Carbon Material and Steel Material Rotary Drum Dryer

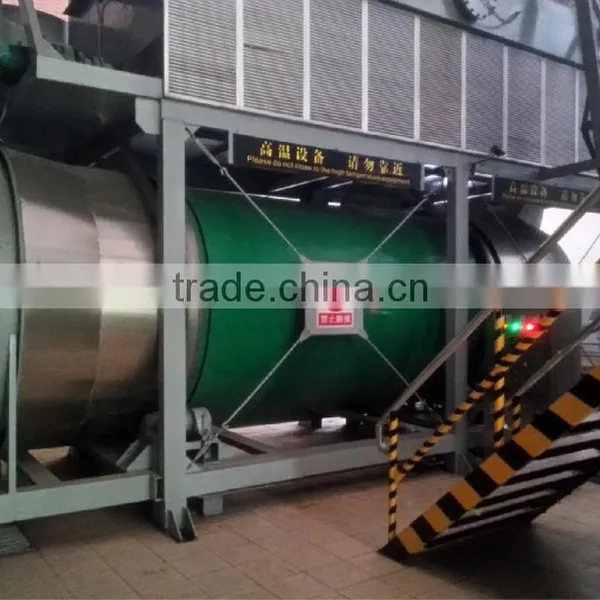

Powder State With Moisture 40%-50% Carbon Material and Steel Material Rotary Drum Dryer thumbnail-1

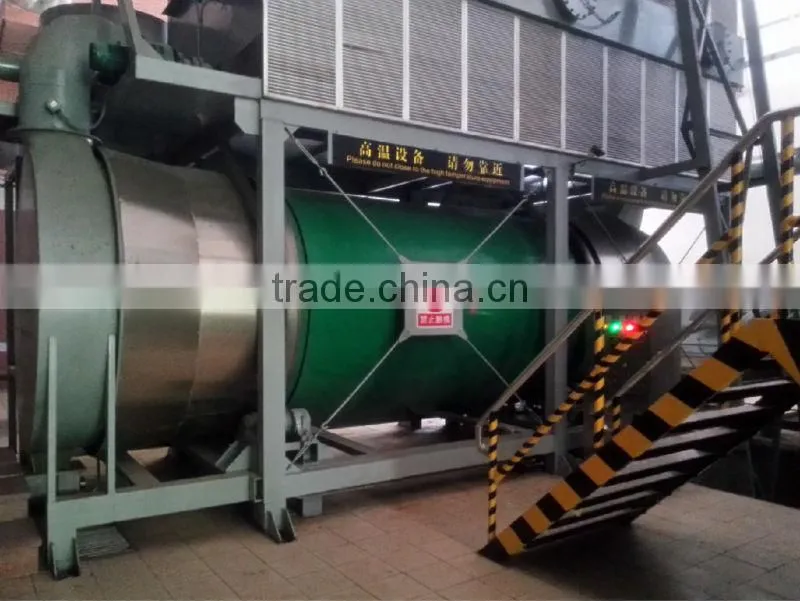

Powder State With Moisture 40%-50% Carbon Material and Steel Material Rotary Drum Dryer photo-1
US$ 18,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
CHENGDA MACHINERY
Model Number:
CDR-1009
Contact Supplier Request Quote Chat Now
Laizhou Chengda Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name CHENGDA MACHINERY
Model Number CDR-1009
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. sawdust rotary dryer
2. raw material: below 6mm powder
3. dryer material: carbon or steel
4. capacity:1T to 10T per hours

  sawdust below 6mm in powderrotary drum dryer for wood pellet machine production line business
 The Rotary Dryer is widely used in the field of building materials, metallurgies, chemical industry, cement and so on. It can dry slag, coal powder, mining powder, clay, sand, limestone and so on. It is made into rotary body, lifting blade, driving device, supporting device etc. .

 Working Theory of Rotary dryer

Rotary dryers consist of a horizontally inclined rotating cylinder. Material is fed at one end and discharged at the other end. In direct-type rotary dryers, hot gases move through the cylinder in direct contact with the material, either with or against the direction of its flow. The cylinder is equipped with flights, which lift the material and shower it down through the hot gas stream.
 The Rotary dryers has been optimized a lot, which possesses the following characteristics:
 1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
2. According to the characteristics of different fertilizers, we have arranged the second granulation zone reasonably so as to improve the granulation effect.
3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption.
Specific-ations(m)
Capacity(t/h)
Main motor
Main gear box
Weight(t)
Power(kw)
Model
Model
Speed reduction ratio
Ø1.2*10
2.5
7.5
Y160M-R3
50-16-I
-----
13.5
Ø1.5*12
3.3-4.9
10
Y160L-6-B3
500-III-2F
-----
18.9
Ø1.5*15
4-6
18.5
Y200L1-6
500-III-2F
-----
21
Ø1.8*12
4-6
18.5
Y160L-6
50-16II-2
16.46
22.83
Ø2.2*12
7-12
18.5
Y200L7-6
650-III
31.5
37.6
Ø2.2*14
7-12
22
Y200L7-6
650-III
31.5
40
Ø2.2*16
12
30
Y225M-6
750-III
31.5
45
Ø2.4*14
12
30
Y250M-6
750-III
31.5
51
Ø2.4*18
10-13
37
Y250M-6
85-13-I
27.16
54
Ø2.4*20
10-14
37
Y250N-6
85-13-I
27.16
54.14
Ø3*20
25
55
Y250M-4
100-16-I
41.52
78
Ø3*25
32-36
75
YR280M-4
100-16-I
41.52
104.9



1. What the rotary dryer can be used for ?
This dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. They are widely used in building materials, metallurgy, and chemical industry.

 2. What is the rotary dryer consist of?

The dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring.

 3. Can I use the coal or gas as the heating source?

Yes, you can use coal, gas, electricity, oil and wind power to heat the dryer machine.

 4. How the rotary dryer to work?

The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.

 Technical Feature:

rotary dryer material :Q345,thickness:18mm

reducer: Zibo of Shandong province

bearing : tile-roofed house bearing

input and outpu conveyor:

width 500mm,length10m screw conveyor

 Complete sets of equipment supply list:

rotary dryer: main rotary body,before roller ring,after roller ring,gear,pinion,input and output parts,reducer,motor, foundation bolt

layout plan drawing,foundation drawing of each machine



No

Name

Material

Qty

Remark

1

Cyclinder

Q345

1

Thickness:18mm

2

Rolling belt plate

A3

1



3

Bast plate for big gear wheel

A3

1



4

big gear wheel

GB45

1

inblock cast,

heat treatment

5

Pinion

GB45

1

inblock cast,

heat treatment

6

riding wheel

GB45

4

inblock cast

7

catch wheel

GB45

2

inblock cast

8

rolling ring

GB45

2

inblock cast

9

lifting blade

10mm

1

inblock cast

10

Motor

Yutong motor of Henan province

1



11

Bearing

Metallurgy bearing tile-roofed house

1





powder state with moisture 40%-50% carbon material and steel material rotary drum dryerpowder state with moisture 40%-50% carbon material and steel material rotary drum dryer
