| Wood Hammer Mill Introduction |

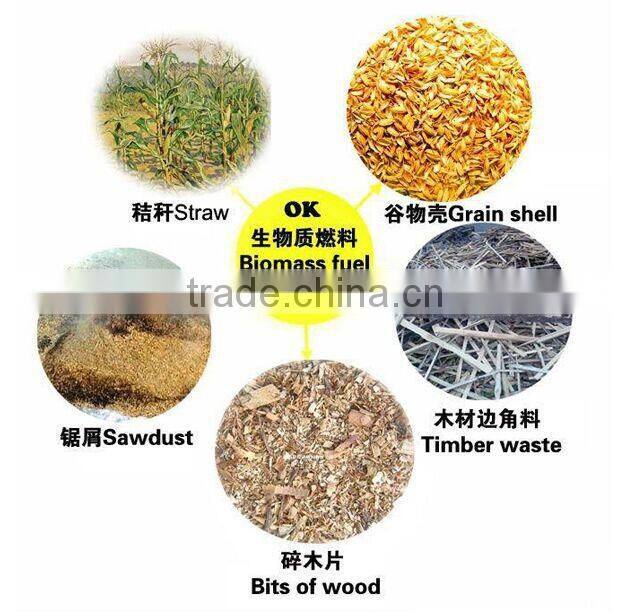

Hammer mill is new-style and multipurpose machine, it is used for all kinds of straw , cotton stalk, alfafa, peants shell and foodstuffs etc. |
| Advantages |
|

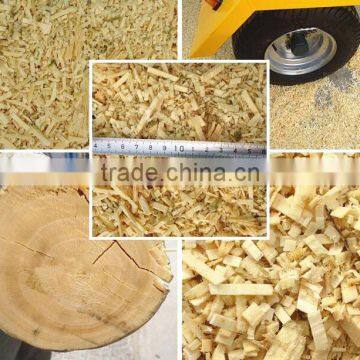

1. Driven by electric motor, the household hammer mill is easy to operate. 2. The hammer mill may powered with 2 electrodes motor that is driven by four B-type belt. 3. It will reduce lumber up to 50 mm diameter into 3-5 mm generally. 4. The screen sizes can be offered as per your request. 5. Smallest capacity makes this CF158 wood hammer mill most suitable for making your own wood pellets and feed pellets. |

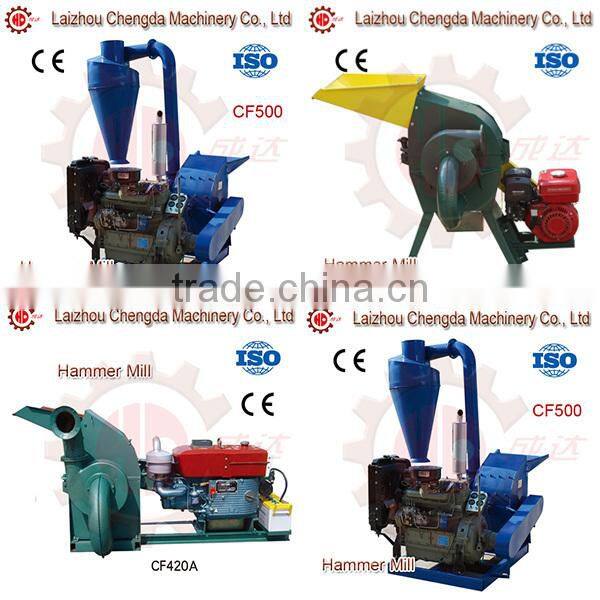

| Model | Power | Voltage V/ 50 Hz | Sieve Screen Size | Capacity | Packing Size |
| CF158 | 2.2kw | 380v | 360*160 mm | 60-120kg/h | 48*58*63 cm |
| CF198 | 4kw | 380v | 510*200 mm | 200-300kg/h | 97*75*64 cm |
| CF420B | 7.5kw | 380v | 680*280 mm | 200-400kg/h | 112*82*107 cm |
| CF420C | 11kw | 380v | 680*280 mm | 200-500kg/h | 112*82*107 cm |
| CF500 | 22kw | 380v | 820*390 mm | 800-1100kg/h | 124*97*106 cm |
| Applications of Wood Hammer Mill |
| 1). This smallest wood hammer mill is most suitable for home use with small capacity and tiny dimension. |
| 2 Equipped with hammers, this wood hammer mill is more suitable to crush soft agricultural crops such as wheat stalks, alfalfa, corn straws, switch grass, peanut soybean shell and bamboo . |
| 3).A cyclone can be equipped to collect finished wood particles to prevent dust leakage. |
| 4).This wood hammer mill can be used in home-made wood pellet production which can be used as animal bedding, heat fuel and fodder. |
| Wood Hammer Mill Working Principle |
|

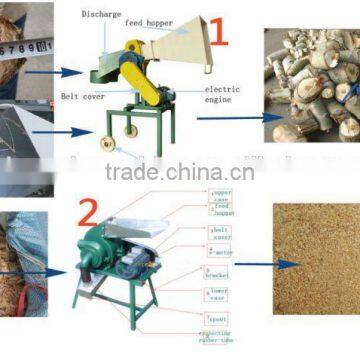

There are three main parts in the whole wood hammer mill: feed hopper, grinding cell, winding system. Cyclone is sold separately which can be used to collect wood particles and dust and reduce its harm to human. 1. While working, wood material is fed into the crushing chamber though feed hopper. Crushed by high speed rotating hammer, large particles hit the gears with strong impact force. Got repetitive collision and friction press from hammers and gears, raw material is gradually being ground into small chips and sawdust. 2. These light wood particles are blowing out wood hammer mill with the help of winding machines. If there is not cyclone on your machine, light wood chips will be blowed everywhere and you should place a dust bag to gather them. If your wood hammer mills are equipped with a cyclone, these crushed wood chips will be automatically separated from strong airflow. |
About our company
Laizhou Chengda Machinery Co., Ltd was founded in 1992, which is a high tech enterprise that integrates new product design, development, manufecturing and international trade business.
Main products: flat die pellet mill, vertical ring die pellet mill, wood chipper, hammer mill, pellet cooler and cutting wood machine etc.. Our company always takes the product quality and credibility as the foundation of us present and tomorrow survival and development. We always adhere to the "quality and reputation first" concept.And we have got the 'quality advanced company" and "quality trustworthy company" and the "honorary company". we are AAA level enterprise to be named by the national quality, reputation and service department.
Our company is located in Laizhou Bay, near to Qingdao seaport. It's convient in sea, road, and air transportation, we have very perfect import and export service system in China. At the same tine , we have a widely range of commodity information network, partners all over the world. Believe our sincere cooperation will creat a better tomorrow.
| Our Services |
|
1. We provide 1 year guarantee. 2. We provide English manual and video for installation & operation. 3. If required, we could send technicians for installation and commissioning, training. 4. We provide feed formula and free spare parts. |
| FAQ |
| 1. How to order? |
|
After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the payment. For single set, your machine can be ready within 30-45 days after we getting the payment, we will send to the port and deliver to you by sea. |
| 2. Related products? |
| CF158, CF420C, CF500 |
| 3. How to get to your factory? |
| Our company is located in Sanlihezi Village, Wenfeng Road, Laizhou, Shandong province, near Qingdao, if you arrive in Qingdao Liuting Airport, we can drive to Qingdao to pick you up to our factory. |
| 4. How long is your warranty period? |
One year |
5. How does your factory do quality control? |
Our factory has gained CE certificate and ISO certificate. " Quality is priority" we always pay great attention on quality controling from the begining to the end. |
