MKL225 Flat Die Wood Pellet Machine With Roller Driven

MKL225 Flat Die Wood Pellet Machine With Roller Driven thumbnail-1
MKL225 Flat Die Wood Pellet Machine With Roller Driven thumbnail-2
MKL225 Flat Die Wood Pellet Machine With Roller Driven thumbnail-3
MKL225 Flat Die Wood Pellet Machine With Roller Driven thumbnail-4
MKL225 Flat Die Wood Pellet Machine With Roller Driven thumbnail-5
MKL225 Flat Die Wood Pellet Machine With Roller Driven thumbnail-6
MKL225 Flat Die Wood Pellet Machine With Roller Driven photo-1
MKL225 Flat Die Wood Pellet Machine With Roller Driven photo-2
MKL225 Flat Die Wood Pellet Machine With Roller Driven photo-3
MKL225 Flat Die Wood Pellet Machine With Roller Driven photo-4
MKL225 Flat Die Wood Pellet Machine With Roller Driven photo-5
MKL225 Flat Die Wood Pellet Machine With Roller Driven photo-6
US$ 100 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
chengda machinery
Contact Supplier Request Quote Chat Now
Laizhou Chengda Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name chengda machinery
Model Number MKL225
Voltage 380V
Power(W) 7.5KW
Dimension(L*W*H) 120*45*98CM
Weight 260KGS
Certification CE
Warranty 12 MONTHES
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.roller moving flat die biomass wood sawdust pellet mill
2.Capacity:120-200kg/h
3. CEcertification
4.1 years warranty

 the Below machine are also sold very well.

MKL225 flat die wood pellet machine with roller drivenMKL225 flat die wood pellet machine with roller driven

MKL225 flat die wood pellet machine with roller drivenMKL225 flat die wood pellet machine with roller driven







1.Power:7.5kw
2,Application:Feed,fuel,fertilizer
3,Pellet dia:2.5-10mm
4,Moisture content:12%-18%
5,Packing size:100x45x98cm



The  flat die biofuels particles machine, the powder raw materials is extrusion moulding for a

cylindrical shape particles. The output grain's density is 900-1200 kg/m3 and grain diameter between in 3-10 millimeter.

The smooth surface and hard particles, calorific value is about 17 million coke.



Specification:

Model

 Capacity

Power

20'/ 40'Con.

N/G weight(kg)

Pellet diameter

Outside(cm)

Length

Width

Heigth



MKL225

 120-200kg/h

7.5kw

 75/150 sets

190/210

2.5-10mm

100

50

90



A:Flat mold biofuels particles machine can produce suppress particles sawdust,

straw , chaff. Mainly for sawdust.

B:Use the coldpressing molding technology, polishing plastic process, elegant appearance,compact structure.

C:High output, low energy consumption, low noise, low fault. The machine's fatigue resistance is strong, can do the continuous production, it will be more economy and durability.

D:The machine adopts special high quality materials and advanced even shaft driving

device, the key components are high quality alloy steel adds wear-resisting material.



the machine pictures in details:

MKL225 flat die wood pellet machine with roller drivenMKL225 flat die wood pellet machine with roller driven

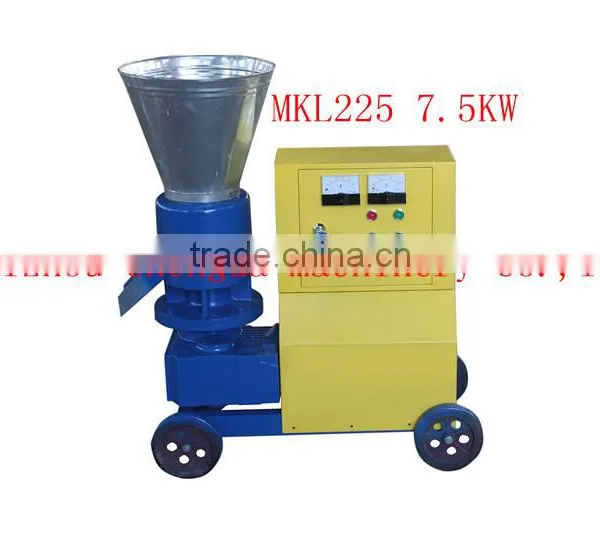

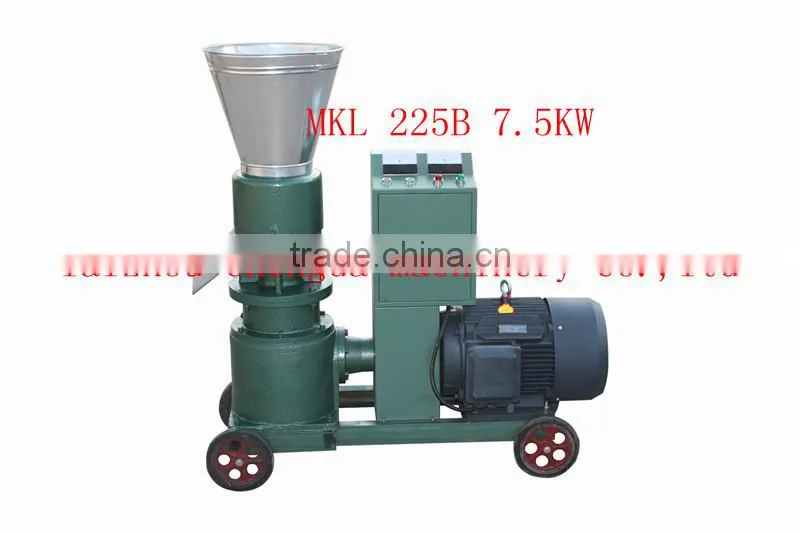

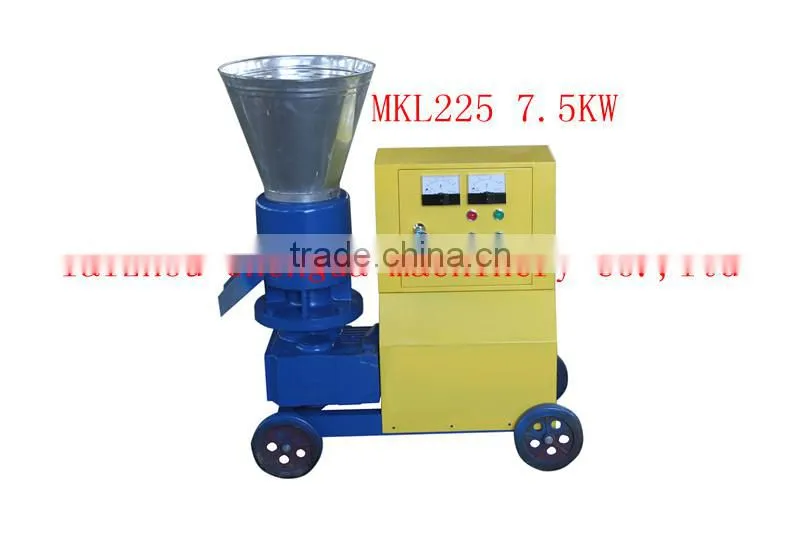

MKL225 7.5KW  PELLET MACHINE        MKL225B MODEL



MKL225 flat die wood pellet machine with roller drivenMKL225 flat die wood pellet machine with roller driven

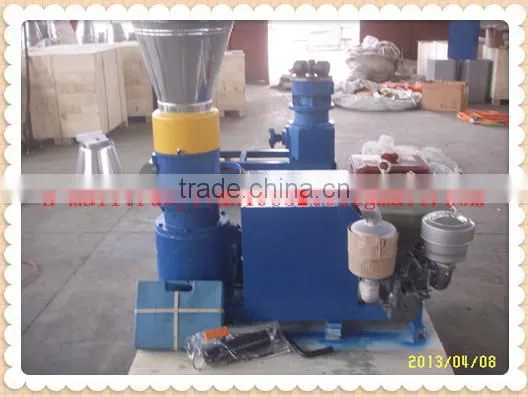

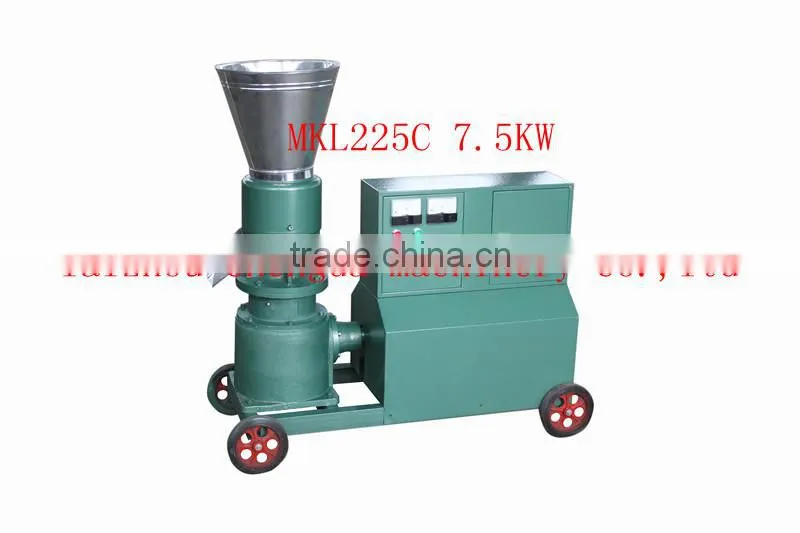

MKL225C MODEL                                    MKL225D NEW SHAPE IN 2013



MKL225 flat die wood pellet machine with roller drivenMKL225 flat die wood pellet machine with roller driven

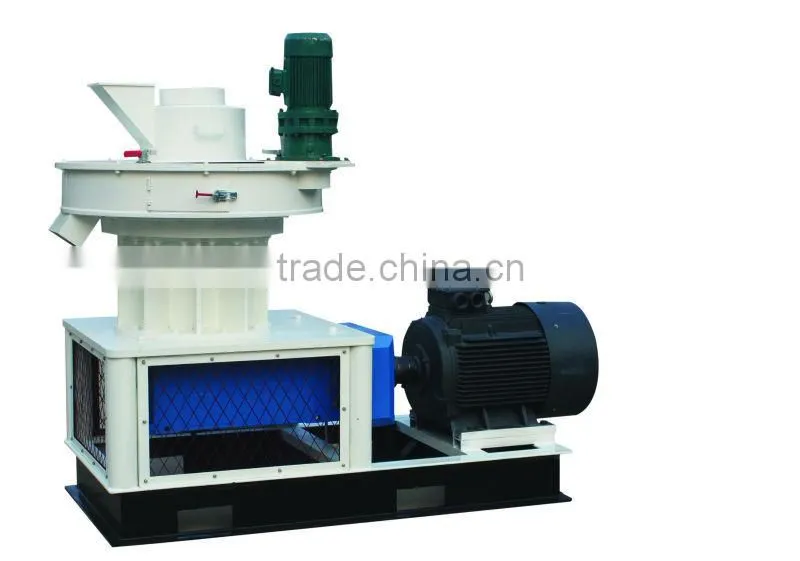

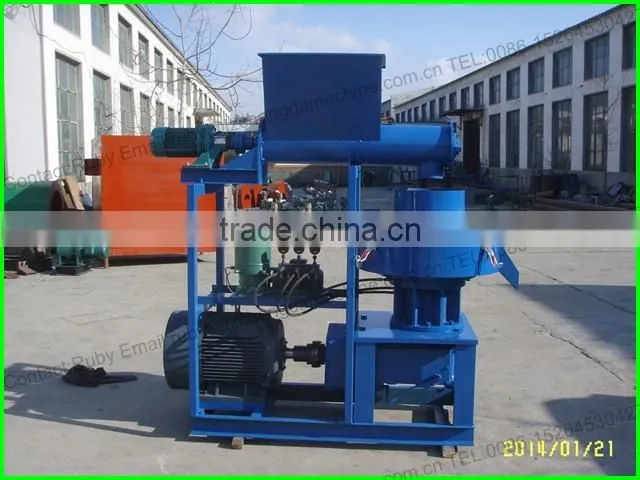

MKL225D NEW SHAPE IN 2013             Ring die wood pellet machine

 MKL225 flat die wood pellet machine with roller drivenMKL225 flat die wood pellet machine with roller driven



    GOOD QUALITY WOOD PELLET FOR FUEL IN THE PELLET STOVE



MKL225 flat die wood pellet machine with roller driven

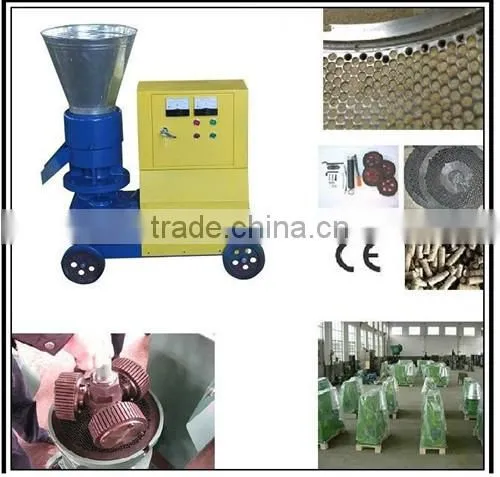

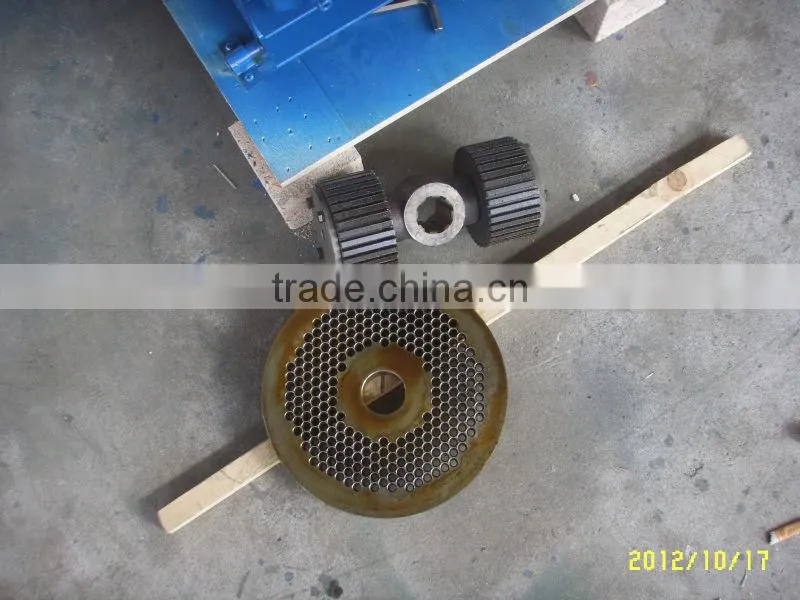

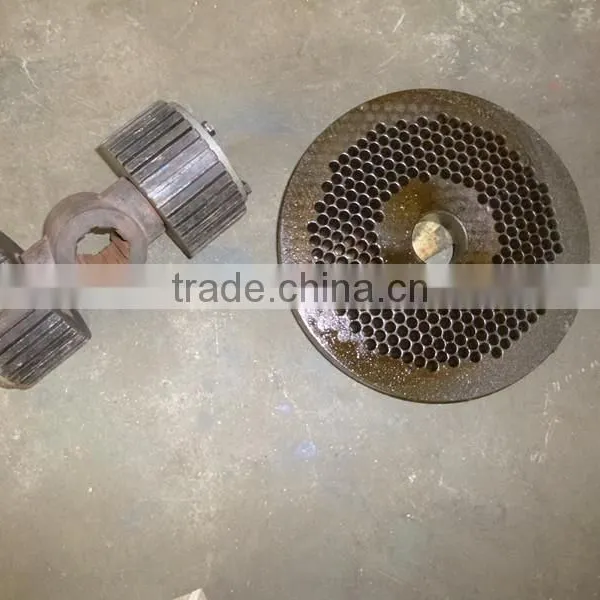

SPARE PARTS OF THE MKL225 SERIES WOOD PELLET MACHINE.

If you need more information please feel free to contact with me.

Contact informatin :

Contact:Ruby

TM:cn1000666960

Email:rubyivan19852006(at)

skype:rubyivan200612101020

TEL:0086-15264530427

we have other model for your choose, you can check the below technical data of all the pellet mill



MODEL NO.

OUTPUT

(kg/h)

POWER

(HP or KW)

SIZE

(cm)

NW/GW

(kg)

 Qty/20’FCL Remak

KL120A

90-120

7.5hp

76*43*71

80/100

90

gasoline engine
KL120A 100-130 8hp 87*44*73 120/140 90 diesel engine
KL120B

75-100

2.2kw/220V

75*32*61

80/100

168

CE motor
KL120B 75-100 3kw/380V 75*32*61 80/100 168 CE motor

KL150A

110-210

7.5hp

76*43*71

95/115

84

gasoline engine
KL150A 120-220 8hp 87*46*73 120/140 84 diesel engine

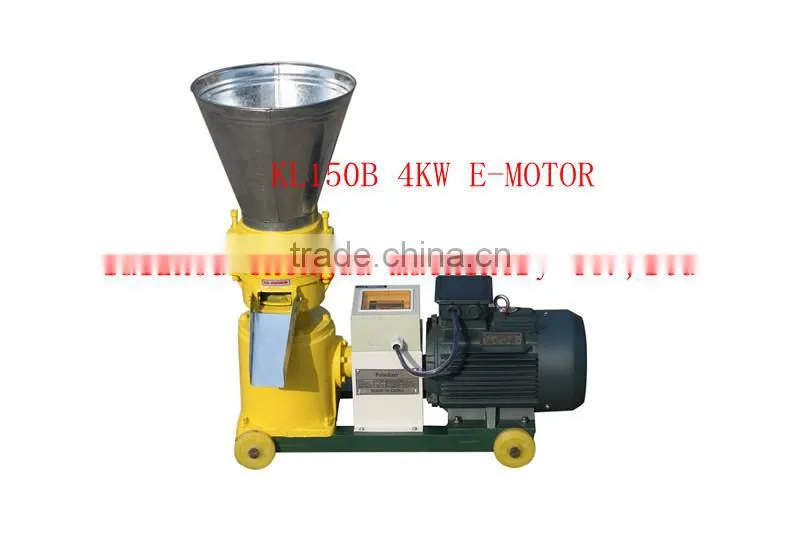

KL150B

150-200

4kw/380V

75*35*65

95/115

126

CE motor

KL200A

250-350

15hp

118*56*95

280/310

40

diesel engine

KL200B

200-300

7.5kw/380V

100*43*95

200/230

60

CE motor

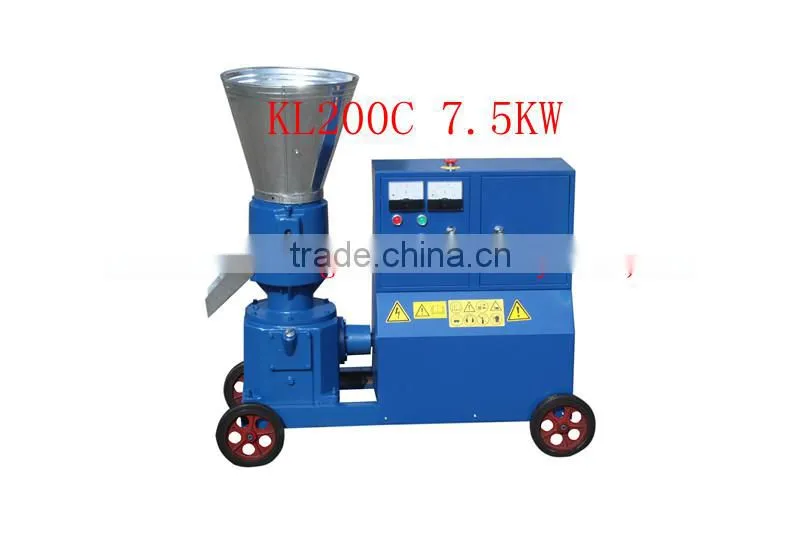

KL200C

200-300

7.5kw/380V

100*46*90

200/230

60

CE motor

KL230A

350-500

22hp

118*56*95

280/310

40

diesel engine

KL230B

350-450

11kw/380V

114*47*97

290/320

45

CE motor

KL230C

350-450

11kw/380V

114*54*93

290/320

45

CE motor

KL260A

300-500

30hp

184*70*116

450/480

16

diesel engine
KL260B 400-600 15kw/380V 120*52*107 330/360 40 CE motor
KL260C 400-600 15kw/380V 122*53*107 330/360 40 CE motor
KL300A 600-850 55hp 200*60*123 520/560 16 diesel engine
KL300B 700-800 22kw/380V 127*52*107 410/450 30 CE motor
KL300C 700-800 22kw/380V 128*58*105 410/450 30 CE motor
KL360A 700-950 55hp 227*62*126 600/620 16 diesel engine
KL360C 700-950 22hp/380V 134*58*106 470/500 30 CE motor
KL400A 800-1100 55hp 227*62*126 750/780 16 diesel engine



Model No. Output (KG/H) POWER (KW) SIZE (CM) NG/GW (KG)

MKL225

(2-rollers,Die fixed)

 200-350 380V/7.5KW 100*46*90 230/260

MKL229

(3-rollers,Die fixed)

 270-500 380V/11KW 114*54*93 320/360

MKL295

(2-rollers,Die fixed)

 450-700 380V/15KW 122*49*107 450/480

MKL335

(3-rollers,Die fixed )

 600-900 380V/22KW 129x56x106 580/600

MKL395

(3-rollers, Die fixed)

 700-1100 380V/30KW 152x60x115 650/680



Please feel free to contact with me if you are iterested in one of them.
