Home > Products > LJ series pellet cooler > 2013hot sell LJ30 pellet cooler assorted with the pellet machine

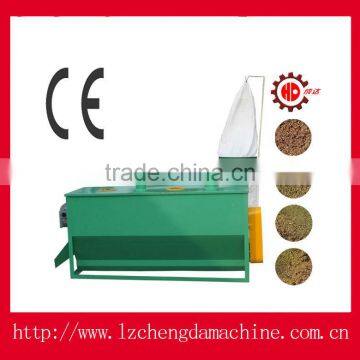

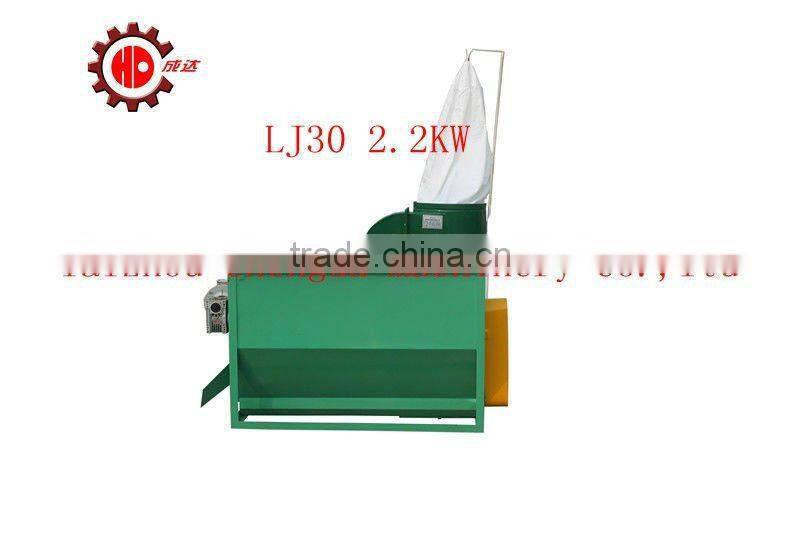

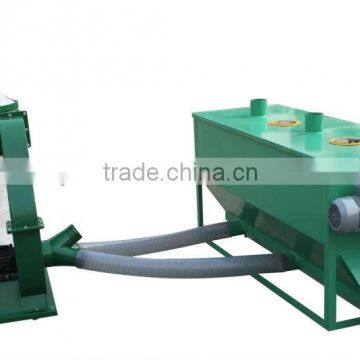

2013hot sell LJ30 pellet cooler assorted with the pellet machine
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
wood pellet cooler can cool the hot pellet into common tempuer
-
2015 hot sell feed pellet cooler
-
wood pellet cooler machine pellet cooling machine
-
pellet cooling machine cool and dry hot pellets into common temperature
-
2013 hot sell wood pellet coller to make the hot pellet to the room temputer
-
High performance horizontal pellet cooler ,wood pellet cooler, feed pellet cooler
Product Details
| Place of Origin | Shandong, China | Brand Name | chengda machine | |

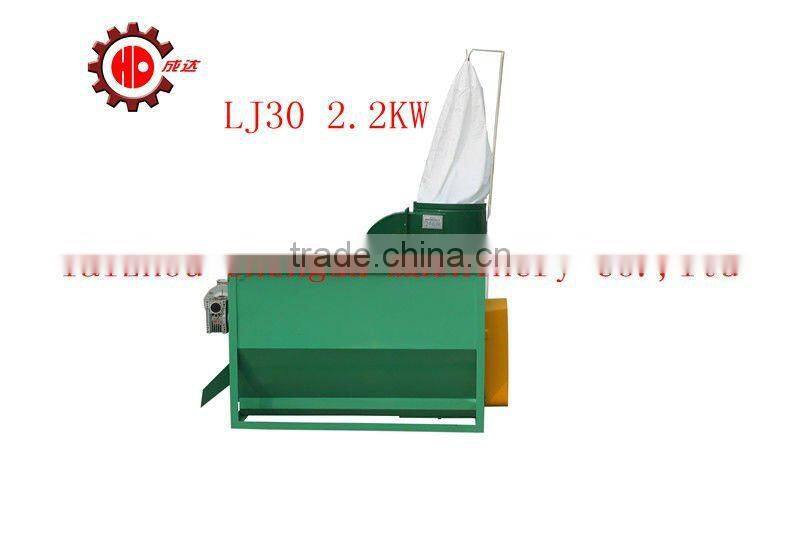

| Model Number | LJ30 | Type | Other, pellet cooler | |
| Voltage | 380v | Power(W) | 2.2kw | |
| Dimension(L*W*H) | 164*74*112 | Weight | 180 kg | |
| Certification | CE | Warranty | 12 month |
Product Description

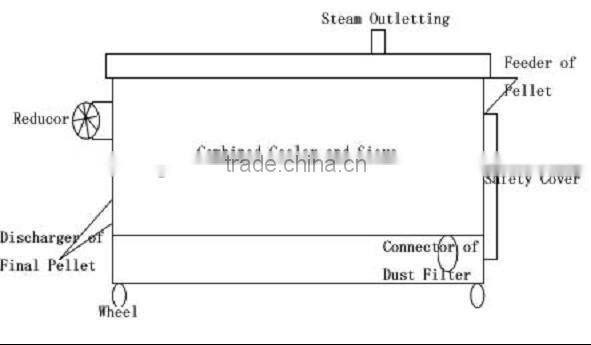

Drawing of Combined Cooler and Sieve

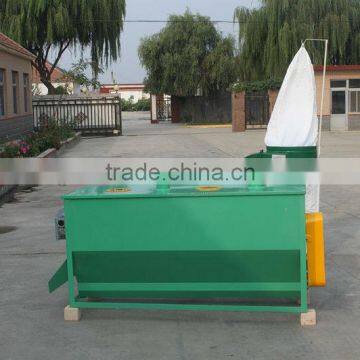

pellet cooler
1. decrease the temperature of wood pellet to room termperature
2. Easy to operate
3. High quality
3. High efficiency

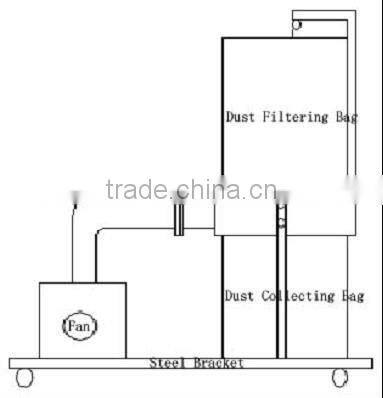

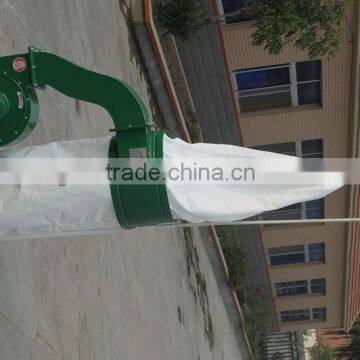

Bag Dust Filter
Pellet can be cooled fully and equally.
Operation stable and the material discharging easy and smooth.
Combine Cooler and Sieve is base on the drum of Rotary Sieve which is made up of Drum Sieve and Frame.
There is one certain degree between the Rotary Drum Sieve and ground. The outside of the Sieve is covered by closed steel to reduce the noisy pollution. On the adjustable speed system, the drum sieve is rotating on certain speed; the pellet is separated and cooled from top to bottom on the rotating of Drum Sieve. The fine powder is discharged from the front of Drum Sieve, nd the good pellet is outlet from the back of Drum Sieve. During the cooling and sieving process, the rotating is evenly, low impulsion and vibrating, and stable. The installation of Combined Cooler and Sieve is easy which can be directly put on he ground, floor board or under the storage. This machine is easy to closely collect dust and maintain.
technical data

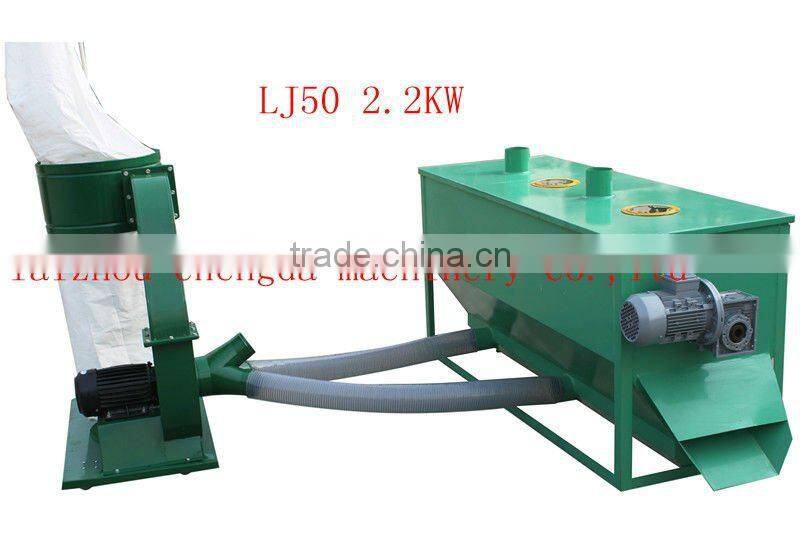

| Item No. | LQJ30 | LQJ50 |

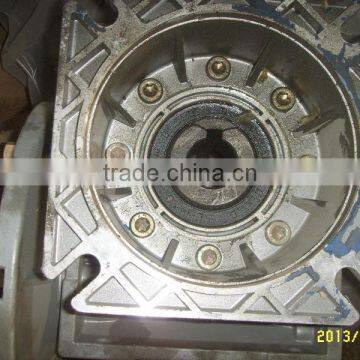

| Motor | Y100L1-4 | Y100L1-4 |
| Motor Power | 2.2Kw | 2.2Kw |
| Draught Fan | Y4-72-2.2 | Y4-72-2.2 |
| Tub-bending for Dust Removal | ¢120 | ¢120 |
| Output | 200~350 kg/hour | 500~700 kg/hour |
| Net Weight | 150kg | 220kg |
| Gross Weight | 180kg | 260kg |
| Packing Size | 155*68*112 (cm) | 220*68*112 (cm) |

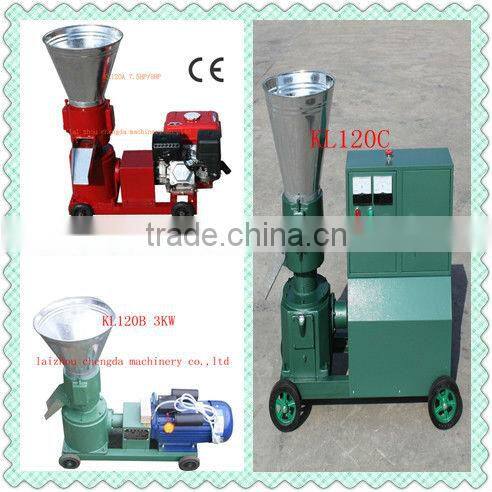

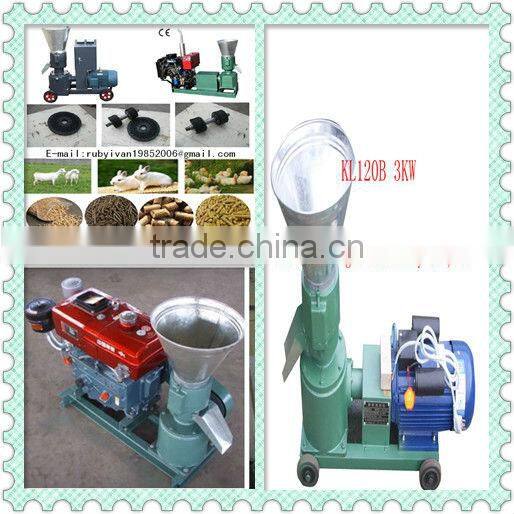

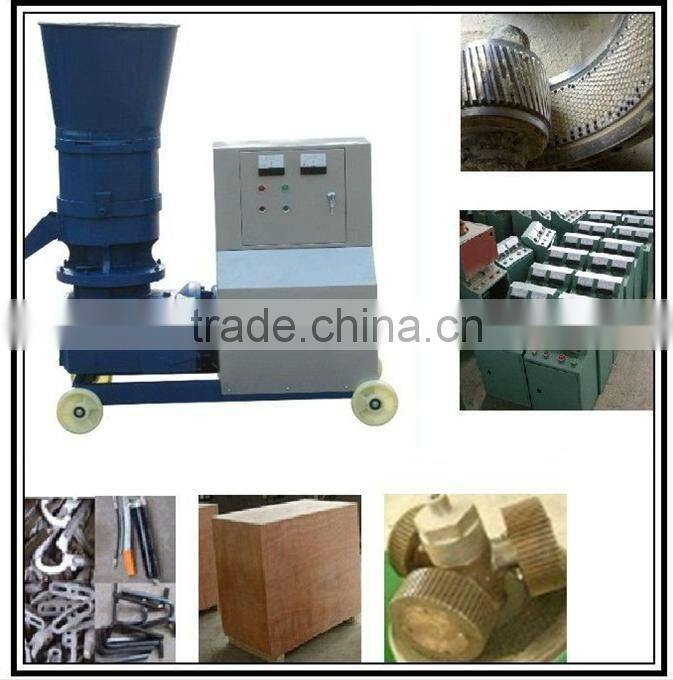

We also have the pellet machine for your choose
Need more information , feel free to contact me.
