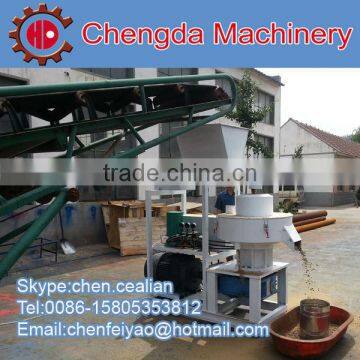

75kw 1T wood capacityvertical ring mold bamboo pellet press mill

Specifications

CE certification
vertical ring die
double layer die ,high output and energy saving

  Introductions of Vertical Ring Die Pellet Mill

1).The new product HKL series “double vertical ring-die pellet mill”, Research, design, produced by ourselves, With alone shape, more reasonable structure and stability, Professional for Wood, rice husk, peanut shell, bamboo and Palm fiber etc.







2).Gearbox: continue the New generation gearbox, Driving with high-precision gears, Automatic lubricant pump system keep the gearbox working stability and warranty period.







3).Vertical motor: the most characteristic is mounting hole with output shaft as the center, equidistant distribution around, More powerful and stability of machine working.







4).Blower system: located in one side of work bin, free control the working time, the main function is dedusting and discharge steam.







5).Working parts: Ring-die and rollers materials are alloy steel, heat treatment made by ourselves, hardness more than 52,In this hardness can assure the pelleting quality and warranty time, working manner is from inside to outside press, centrifugal force and extrusion pressure together, produced more capacity, at the same time assure hardness and density, the special design is 4 to 8 rollers working, Increase press rate then increase capacity, Ring-die is “vertical double-deck” structure, it can use one mould with same hole size for working life increased, moreover it can use one mould with different hole size for saving the money for another size mould.





Data of ring die pellet mill



Model	Power	Die Diameter	Die Hole	Wood output	Weight	Packing Size
HKL40-37	37kw	400mm	4-12mm	500-600kg/h	1500/1600	164*65*174
HKL40-45	45kw	400mm	4-12mm	600-700kg/h	1900/2000	185*74*174
HKL45-55	55kw	450mm	4-12mm	700-900kg/h	3000/3100	242*121*195
HKL45-75	75kw	450mm	4-12mm	1000-1200kg/h	3200/3300	252*121*200
HKL45-90	90kw	450mm	4-12mm	1300-1400kg/h	3500/3600	278*132*210





Which one to choose? Flat die or Ring die?



Flat Die Wood Pellet Mill
Compared with ring die wood pellet mills, the flat die pellet mills are applied to small and medium sized production which requires lower hourly output and the materials with large adhesive force.
Also, flat die pellet mill has its own advantages and disadvantages. On the whole, flat die pellet mill is of low energy consumption, greater mobility, so it is suitable for small scale family workshop, but not for large-scale operation in enterprises and factories. Low output, low pressure, bad final pellet forming shape are disadvantages of flat die wood pellet mill. What’s more, the removing of spare part is indeed a troublesome thing.



Ring Die Wood Pellet Mill
Ring die pellet mills are of vertical structure and they combine with the flat die pellet mills’ vertical feeding method. The original circle structure of ring die pellet press is specially designed for those wood materials like gum wood, palm which are hard to press. Because the proportion of the materials is light,so vertical feeding method is selected. In addition, due to the nice stability of circle structure ring die pellet mills, thus the design adopts combination of ring die and flat die.
Ring die pellet mill has both advantages and disadvantages. There are three main advantages: 1.Large production, nice pellet forming shape and high density( 1-1.3%). 2. No additives are needed while pelletizing. 3. The roller and ring die are of balanced wear. The main disadvantage is the relatively high power consumption.







In a word, ring die wood pellet mills advantages are the flat die wood pellet mills disadvantages, and vice versa. You must consider all the factors that will limit your production carefully. I hope this article will be of a little value for you. If you have interests, welcome to contact with us. We are professional and reliable enough.







  Spare parts of Vertical Ring Die Pellet Mill







                 materials and pellets





Other type pellet mill, you can click here to view.





Data of other pellet mills

Model No.	Diesel Engine	Feed output	Wood output	N/G weight(kg)	Pellet diameter	Packing Size(cm)
KL120A	8HP Diesel Engine	60-100	40-60	120/140	2.5-10mm	87*44*73
KL150A	8HP Diesel Engine	90-120	50-90	120/140	2.5-10mm	76*43*71
KL200A	15HP diesel engine	200-300	110-140	280/310	2.5-10mm	118*56*95
KL230A	22HP diesel engine	300-400	150-190	280/310	2.5-10mm	118*56*95
KL260A	35HP diesel engine	400-600	220-280	450/480	2.5-10mm	184*70*116
KL300A	55HP diesel engine	600-800	280-320	520/560	2.5-10mm	220*60*123
KL360A	55HP diesel engine	700-900	300-380	600/620	2.5-10mm	227*62*126
KL400A	55HP diesel engine	900-1100	400-550	750/780	2.5-10mm	227*62*126
Model No.	gasoline engine	Feed output	Wood output	N/G weight(kg)	Pellet diameter	Packing Size(cm)
KL120A	7.5HP gasoline engine	60-100	40-60	80/100	2.5-10mm	76*43*71
KL150A	7.5HP gasoline engine	90-120	50-90	95/115	2.5-10mm	76*43*71
KL150A	13HP gasoline engine	200-300	110-140	95/115	2.5-10mm	87*46*73



Model No.	Power(E-motor)	Feed output	Wood output	N/G weight(kg)	Pellet diameter	Packing Size(cm)
KL120C	2.2kw 220v 1phase	60-100	40-60	80/100kg	2.5-10mm	75*35*65
KL120C	3km 380v 3phase	60-100	40-60	80/100kg	2.5-10mm	75*35*65
KL150C	4km 380v 3phase	90-120	50-90	95/115kg	2.5-10mm	75*35*65
KL200C	7.5km 380v 3phase	200-300	110-140	200/230kg	2.5-10mm	100*46*90
KL230C	11km 380v 3phase	300-400	150-190	290/320kg	2.5-10mm	114*54*93
KL260C	15km 380v 3phase	400-600	220-280	330/360kg	2.5-10mm	122*53*107
KL300C	22km 380v 3phase	600-800	300-360	410/450kg	2.5-10mm	128*58*105
KL360C	22km 380v 3phase	700-900	300-380	470/550kg	2.5-10mm	134*58*106
KL400C	30km 380v 3phase	900-1100	400-550	630/660kg	2.5-10mm	145*62*115



Model No.	Power(E-motor)	Feed output	Wood output	N/G weight(kg)	Pellet diameter	Packing Size(cm)
KL120L	3kw 380v 3phase	50-100	30-50	90/110	2.5-10mm	75*32*65
KL150L	4kw 380v 3phase	50-90	90-120	130/180	2.5-10mm	75*35*60



Model	Tractor Power	Feed output	Wood output	N/G weight(kg)	Die Hole	Packing Size
KL120P	6-10HP	60-100	40-60	70/90	2.5-10mm	76*42*71
KL150P	6-12HP	90-120	50-90	90/100	2.5-10mm	76*72*71
KL200P	10-18HP	200-300	110-140	140/160	2.5-10mm	77*56*102
KL230P	18-28HP	300-400	150-190	150/180	2.5-10mm	77*56*102
KL260P	28-45HP	400-600	220-280	200/230	2.5-10mm	77*56*115
KL300P	45-55HP	600-800	300-350	260/290	2.5-10mm	77*56*115
KL360P	50-60HP	700-900	300-380	300/330	2.5-10mm	87*85*116
KL400P	50-70HP	900-1100	400-550	400/420	2.5-10mm	87*85*116



            Our factory and certification



                Packing and shipping









                       After-sale Service
After-sale service can ensure a smooth business once you buy a machine aboard. You can inevitably encounter some operation problems while making wood pellets. We can offer you 12 months warranty for main parts to protect your interests and save your money.
