Home > Manufacturing & Processing Machinery > Agricultural Machinery > Feed Processing Machinery > 200-500kg/h Wood Chips Hammer Mill / Wood Crusher
200-500kg/h Wood Chips Hammer Mill / Wood Crusher
US$ 1,000 - 1,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
chengda
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hammer Mills for Wood, Biomass, and Animal Feed.US$ 400 - 800MOQ: 1 Set -
China Manufacturer of Small Wood Chips Hammer Mill MachinesUS$ 800 - 1,500MOQ: 1 Set
-
Hot Sale Coconut Shell Wood Hammer Mill Crusher for SaleUS$ 800 - 1,500MOQ: 1 Set
-
Electrical Motor Driven Rice Husk Wood Hammer Mill Crusher MachineUS$ 400 - 800MOQ: 1 Set
-
Wood Hammer Mill Crusher With CycloneUS$ 900 - 1,500MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
chengda
Model Number
CF420A
Type
Other, wood hammer mill
Power(W)
22hp
Dimension(L*W*H)
147*74*111cm
Weight
390 kg
Certification
CE ISO
Warranty
One Year
After-sales Service Provided
No overseas service provided
Product Description
Working principle
The hammer mill is fixed with an engine and a power of RP-driven all kinds of different power.
After the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step by step. Then the crushed materials will be leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge. Finally, the powder material will be discharged down below and the air will be discharged upper.

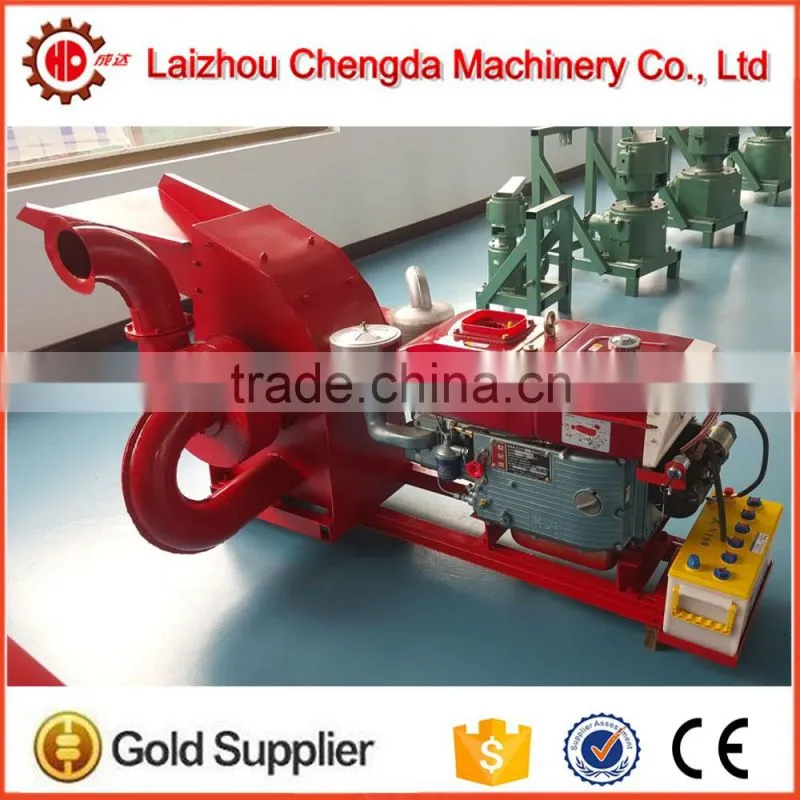

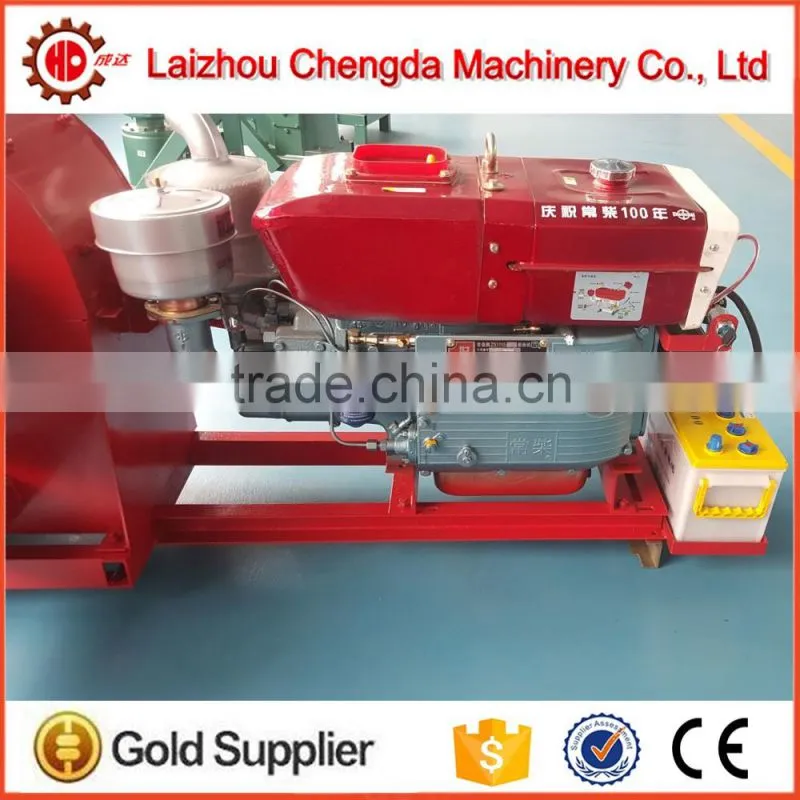

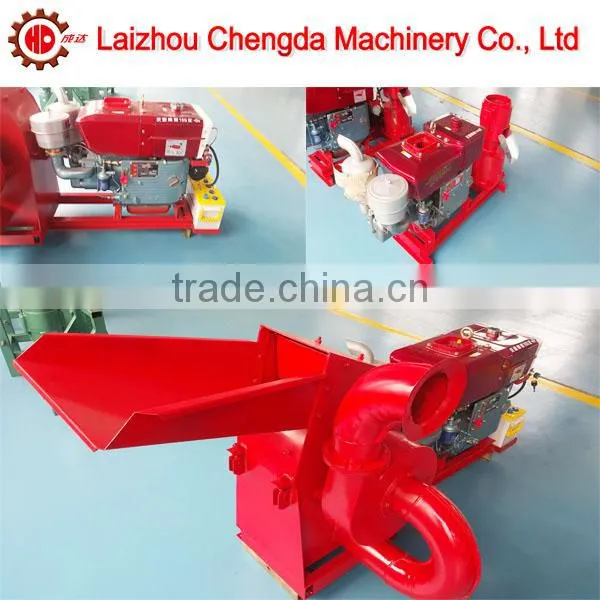

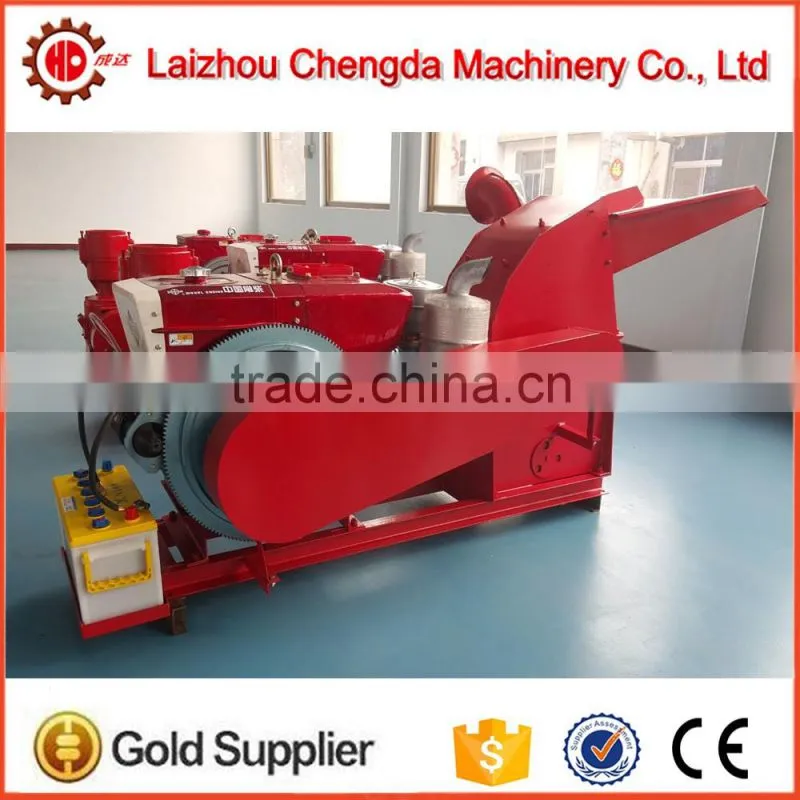

Diesel Engine Driven Wood Hammer Mill with Cyclone--- CF420A
Technical Parameters of CF420 Wood Hammer Mills
Main Features of Wood Hammer Mills
1. With capacity 200-500kg/h, this hammer mill can satisfy a large production demand on a daily basis.
2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill.
3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen.
4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part.
5. The angle of the screen can be 180° which allows for high throughput at lower power consumption.
6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing
Certifications

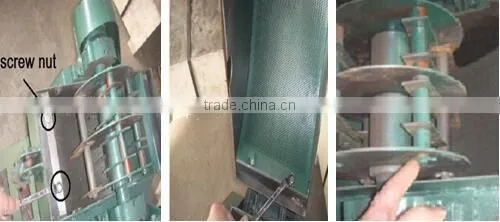

Hammer Mill Parts
Machine Parts
Name: Sieve
Brand: chengda
Original: China, Shandong
The hole diameter can be 1.5mm, 2mm, 4mm, 6mm, 8mm
Main Features
Name: Sieve
Brand: Chengda
Original: China, Shandong
The sieve is made by Iron Sheet. When we use it, please avaid metal materials put into hammer mill so that to demage the sieve.
Machine Parts
Name: Hammer Sheet
Brand: chengda
Original: China, Shandong
The hammer sheet is made by iron sheet. If we use it in a right way, we can use it more than 1000 hours.
Raw Materials
Final Products You Can See
How to choose a good quality wood hammer mill?
Choose a reliable wood hammer mill manufacturer. Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.

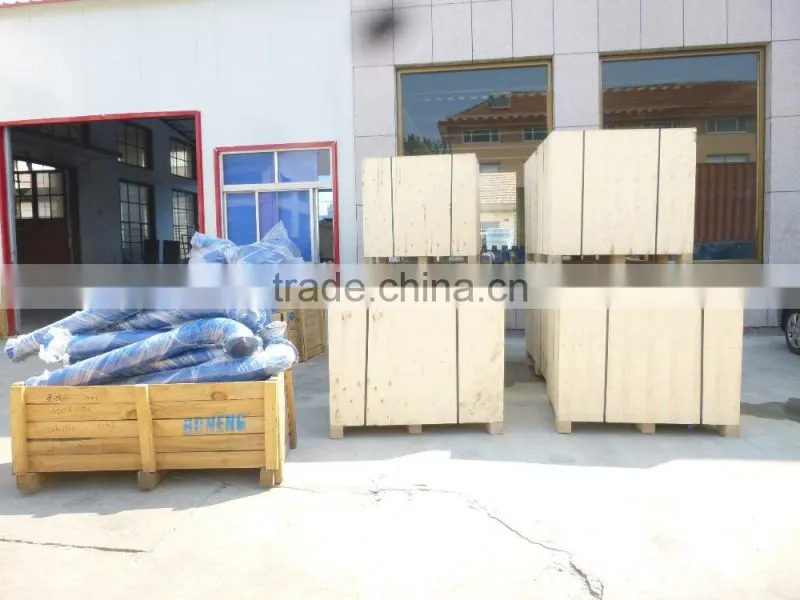

Packing & Delivery
Our Company
Laizhou Chengda Machinery Co., Ltd
Our company was founded in 1992, which is a high tech that enterprise integrates new product design, development, manufecturing and international trade business.Main products: flat die pellet mill, vertical ring die pellet mill, wood chipper, hammer mill, pellet cooler and cutting wood machine etc.. Please free free to contact us if you have any inquiries and we will try our best to meet your demands.
Exibitions
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2001
Factory Size
5,000-10,000 square meters
Total Employees
11 - 50 People
