High Quality 22hp Diesel Engine Powered Wood Hammer Mill Crusher

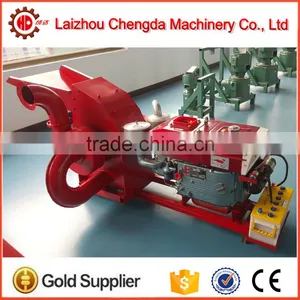

High Quality 22hp Diesel Engine Powered Wood Hammer Mill Crusher photo-1

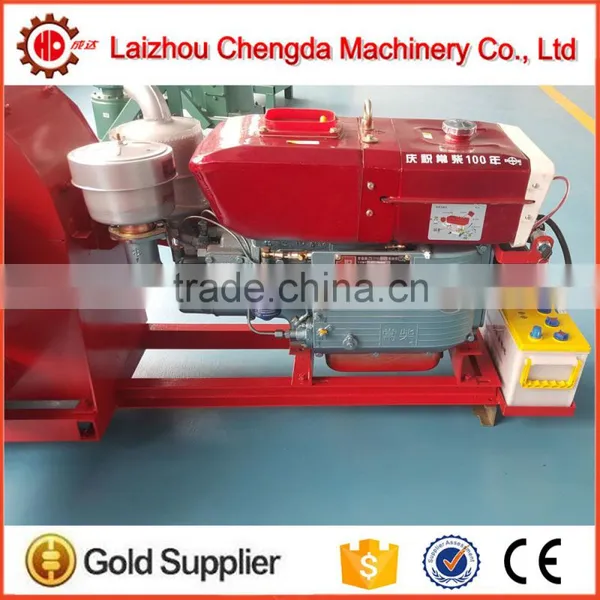

High Quality 22hp Diesel Engine Powered Wood Hammer Mill Crusher photo-2

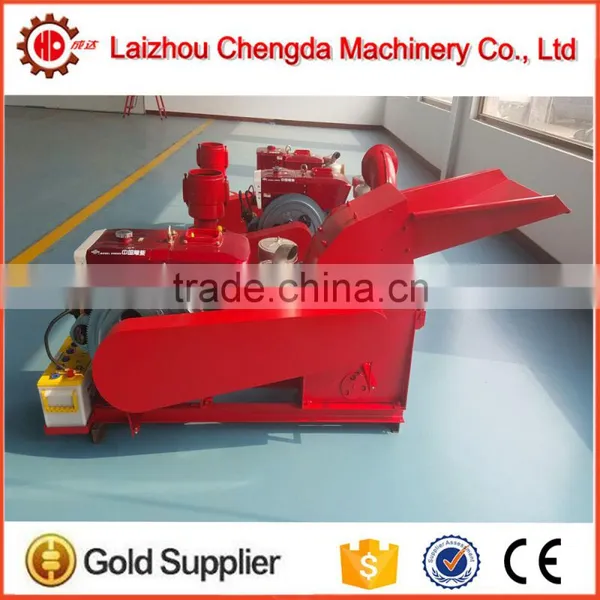

High Quality 22hp Diesel Engine Powered Wood Hammer Mill Crusher photo-3

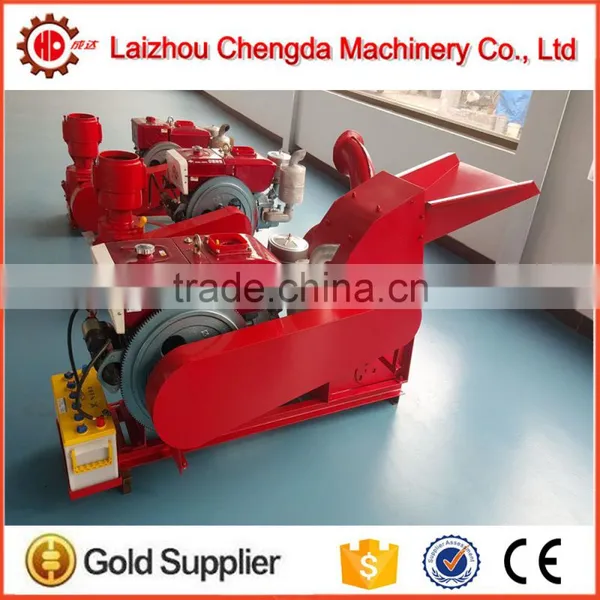

High Quality 22hp Diesel Engine Powered Wood Hammer Mill Crusher photo-4
High Quality 22hp Diesel Engine Powered Wood Hammer Mill Crusher photo-5
High Quality 22hp Diesel Engine Powered Wood Hammer Mill Crusher photo-6
US$ 1,000 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Chengda Machinery
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name Chengda Machinery
Model Number CF420A
Type Other, Wood hammer mill
Power(W) 22hp
Dimension(L*W*H) 147*74*111cm
Weight 390 kg
Certification CE ISO
Warranty one year
After-sales Service Provided No overseas service provided
Product Description

Diesel Engine Powered Wood Hammer Mill Crusher

Hammer mill is a new-style and multipurpose machine, it is used for all kinds of straw, cotton stalk, alafalfa, peanuts shell and foodstuffs etc. The hammer mills can be driven by electrical motor, diesel engine and gasoline engine. Its working principle is that the raw materials will be beat by the high rotating hammer mill until to the power.


There are Several Types Hammer Mills for Your Choose

------------ CF158, CF198A. CF198, CF420A, CF420B, CF420C, CF500A, CF500, CF550, CF560, CF600 and CF800
Model
Power
Engine
Sieve Screen Size
Sieve Screen Specification
Capacity
Packing Size
CF158
2.2KW
electrical motor
360*160mm
1.5-10mm
60-120kg/h
48*58*63cm
CF198
4KW
electrical motor
510*200mm
2-10mm
200-300kg/h
97*75*64cm
CF420B
7.5KW
electrical motor
680*280mm
2-10mm
200-500kg/h
112*82*107cm
CF420C
11KW
electrical motor
680*280mm
2-10mm
200-500kg/h
112*82*107cm
CF500
22KW
electrical motor
820*390mm
2-10mm
900-1100kg/h
124*97*106cm
CF198A
7.5HP
gasoline engine
360*160mm
2-10mm
200-300kg/h
200-300kg/h
CF420A
22HP
diesel engine
680*280mm
2-10mm
200-500kg/h
147*74*111cm
CF500A
55HP
diesel engine
820*390mm
2-10mm
900-1100kg/h
150*142*123cm
Personal Design
30kw, 37kw, 45kw, 55kw
electrical motor
We can design as your requirements.
Detailed Images

Raw Materials and Final Sawdust of Wood Hammer Mills

The raw materials include Sawdust, Wood Chips, Wheat Straw,  Peanut-shell,  Rice husk, Sugar Cane Bagasse, Paddy Straw, Sunflower Seed Husk, Sunflower Stalk, Cotton plant Stem, Tobacco waste,  Mustard Stalk, Bamboo Dust, Palm husk and Feed pellet .

Features of CF420C Wood Hammer Mills

1. With capacity 200-500kg/h, this hammer mill can satisfy a large production demand on a daily basis.

2. CF420c hammer mill is driven by 11kw electrical motor, we also have the 22hp diesel engine powered CF420A.

3. Main fore bearing parts adopt high alloy wearable material, life of wear part is several times of similar products.

4. It has simple construction, convenient operation, rational design, low consumption and high efficiency.


Main Parts of Hammer Mills----sieves and hammer sheet.



Main Parts 1.

Name: Sieve
Brand: chengda
Original: China, Shandong
The hole diameter can be 1.5mm, 2mm, 4mm, 6mm, 8mm and 10mm.

Main Parts 2.

Name: Hammer Sheet
Brand: chengda
Original: China, Shandong
The hammer sheet is made by iron sheet. If we use it in a right way, we can use it more than 1000 hours.

Packing & Delivery
Packaging
Size
147*74*111cm
Weight
360/390kg



Packaging Details
Strong plywood case as exported standard, if your order is big we suggest shipping by container, we will calculate the total volume of your order and saving shipping cost for you.
Shipping: By sea, By air; Express (DHL/FedEx; Railway; Highway)
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Company
We are Laizhou Chengda Machinery Co., Ltd in China, the professional factory of pellet machines with more than 24 years history in this field, we have professional engineering team,advanced equipment,wide product range,we import many core spare parts from foreign countries to ensure our equipment quality. We can make animal feed production line biomass pellets line and wood sawdust pellets line. We have clients in Indonesia, Sri Lanka, United Arab Emirates, Germany, America and etc., which give us best feedback. We believe, we are your best choice.
If you are interested in our pto wood pellet mill ,please contact us without any hesitation.
Looking forward to cooperating with clients all over the world.
