Specifications
1. Suit for concrete pumping2. 3 times longer working life
3. Polyurethane made
4. 60-85 bar, 2:1 factor
Concrete-King® Polyurethane(PU) Hose

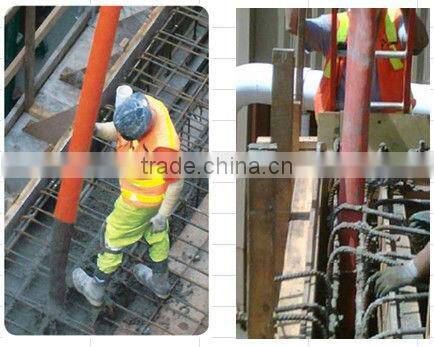

Concrete-King® Polyurethane(PU) Hose is the newest hose in the innovation program of Concrete Pumping. The development was initiated to answer a need for a hose that was exceptionally easy to handle and was the ideal answer for tall walls and columns where space is minimal. This is all achieved thru its lay flat design which allows better flow control and lower placement rates when necessary.
It is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear characteristics. The circular woven reinforcement is made from an extra strong yarn. The “extrusion through the weave” production method gives a very strong bond between cover and lining, and encapsulates the woven reinforcement.The heavily reinforced weave ensures minimum extension in length and minimum “snaking” or bending of the hose.
Features & Benefits:
- 2 - 3 times working lifes than traditional rubber hose
- 1/3 the Weight
- Operator Friendly and Easily
- More Consistent Flow at Lower Placement Rates
- Ease of Pour in Tight Areas
- Bright Color for Visibility and Safety
- Superior Resistance to Weather and Aging
- Easily Cleans Up
| Product | Size | Inner Diameter | thickness | Flange end size | weight | working pressure | burst pressure | Working's capacity |
| Concrete-King® Polyurethane(PU) Hose with reinforcement | DN125 | 125±1mm | 12mm | 5.5" (148mm) | 5.5 kgs/m | 60-85 Bar/ 870-1250 Psi | 120 Bar/ 1740 Psi | 2 - 3 times than traditional Rubber hose |
------------------------------------------------------------------------------------------------------------------------------------------

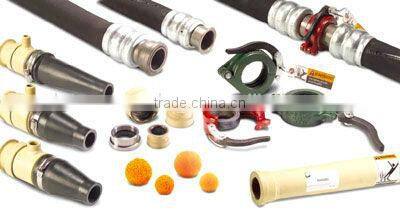

The Others Concrete Hoses and Accessories for Recomendation:

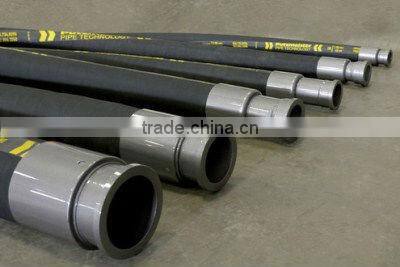

1) Concrete-king rubber hose for concrete pumping 2" to 6" , 85 bar/ 220 bar
