Specifications
1.oil press+filter2.High oil yield
3.Tested on all kinds of oil seeds

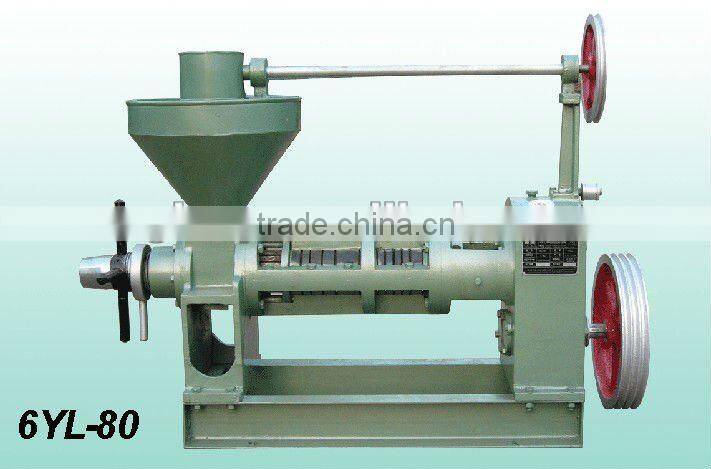

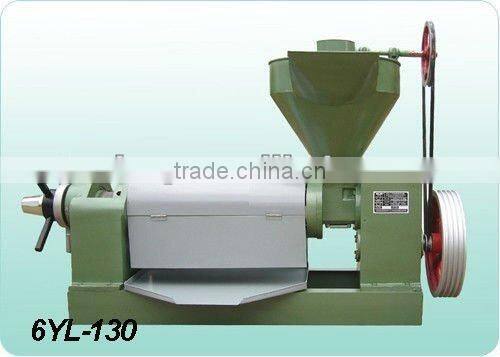

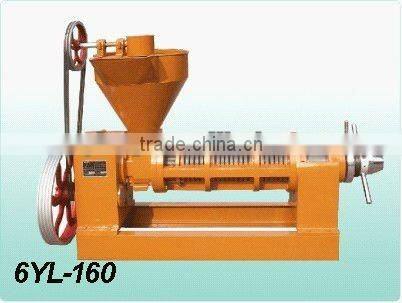

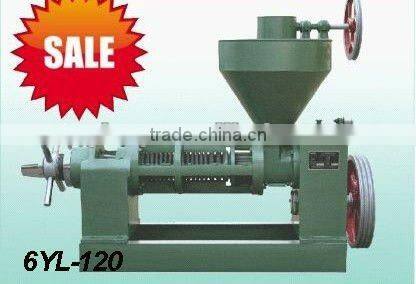

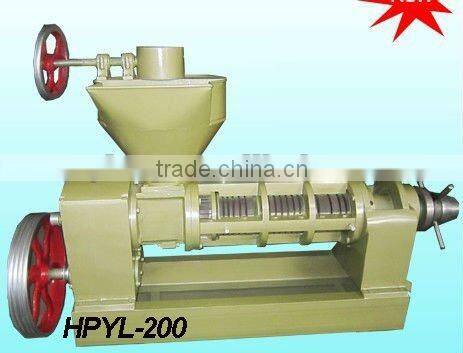

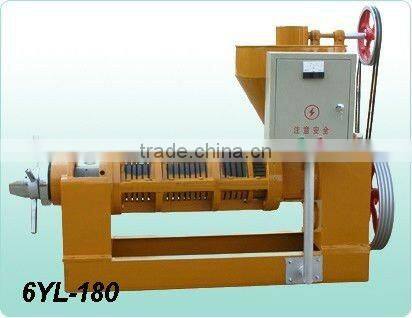

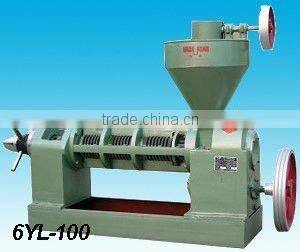

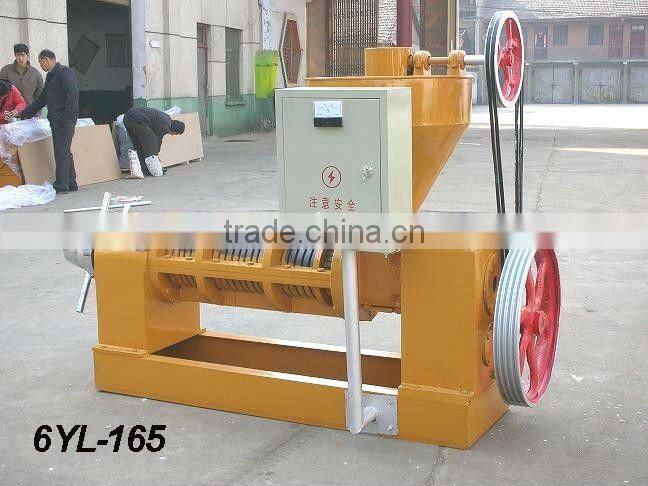

6YL series oil press
6YL Screw Oil Presser / Oil Press Machine, is the most widely used type for small / home mill plant. It is charactered as easily ooperating and high productivity.
1.Main Specification:
Type | 6YL-80 | 100/95 | 105 | 120 | 130 | 160/165 | 180 | HPYL-200 |
Power(kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22-30 | 30 | 45 |
Shaft speed(r/min) | 40-50 | 30-40 | 30-40 | 30-40 | 28-38 | 28-35 | 30-40 | 45-55 |
Size(mm) | 1320x540x1020 | 1640x640x1200 | 187x640x120 | 1750x640x1310 | 1930x680x1480 | 2200x850x1560 | 2350x1000x1760 | 2230x790x1720 |
Weight (kg) | 380 | 480 | 650 | 700 | 820 | 1200 | 1500 | 1600 |
Belt | B Type, Length 3.2m-4m | |||||||
| ||||||||
2.And its productivity varies according to different materials. Below is the common digital FYI:
Type Item | Vegetableseeds Rapeseed (t/24h) | Peanut(t/24h) | Soy (t/24h) | Coconut (t/24h) | Cottonseed (t/24h) | |||
Hot pressing | Cold pressing | Hot pressing | Cold pressing | Hot pressing | Cold pressing |
pressing | Cold pressing | |
6YL-80 | 1.9-2.4 |
| 1.9-2.4 |
| 1.8-2.3 |
| 1.9-2.4 | 0.9-1.2 |
100/95 | 3.5-4 | 1.8-2 | 3.5-4.5 | 1.5-2.5 | 3.3-3.8 | 1.7-2.5 | 3.5-4 | 2-2.5 |
105 | 4-7 | 1.8-3 | 4-7 | 1.8-2.5 | 3.5-6 | 1.8-3.5 | 5-8 | 3-5 |
120 | 7-8 | 2.4-3 | 5-7 | 2-3 | 6-7 | 2.5-3.5 | 7-8 | 3-3.5 |
130 | 8-10 | 5-6 | 8-10 | 4-6 | 9-10 | 4.5-5.5 | 9-11 | 6-8 |
160/165 | 14-20 | 13-18 | 15-20 | 10-15 | 14-18 | 10-15 | 15-20 | 11-15 |
180 | 16-22 | 15-18 | 18-22 | 12-18 | 16-19 | 12-18 | 17-22 | 13-16 |
HPYL-200 | 28-32 | 25-30 | 30-32 | 22-25 | 28-32 | 22-25 | 26-32 | 20-22 |
Rate of output oil (%) | 23-28 | 20-23 | 35-45 | 32-40 | 10-16 | 8-14 | 60-65 | 10-14 |
Residue oil of cake (%) | 6.5 |
| 7 |
| 6.5-7 |
| 6.5-7.5 | 5.5-6.5 |
3.The other oil expellers as follows:
4.Construction features:
6YL series spiral oil press is mainly composed of 7 major parts of screw axis, press cage, feed mechanism, cake yielding mechanism. transmission system, electric control part and vacuum filter part. All the parts are assembled on the frame and screwed as a whole.
5.Characters:
Simple design , easy to operate , wide suitability , continuous operation, high productivity and high oil product ratio.
