Good reputation GF20 stirrup bender

Specifications

stirru bender
1. stirrup bending machine
2. rebar bender
3. Superior Quality
4. Stable Performance, factory price .

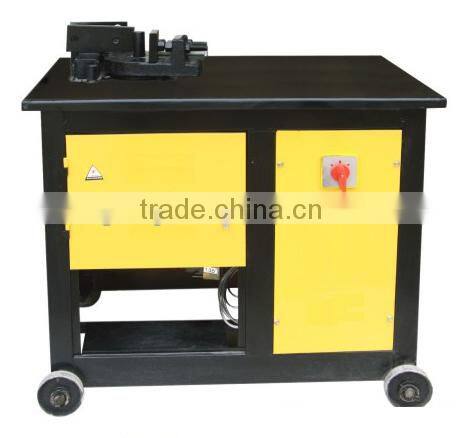

Good reputation GF20 stirrup bender











Stirrup bender specific introduction



GF 20 Automatic Rebar Stirrup Bending Machine is stirrup bending machine for construction. It



simplies bending process, works efficiently, adjusts angle conveniently, bends neatly, and it can



bend round steel bar with diameter  4-20mm to various geometrics shape as required .



GFseries stirrup bender parameter





Stirrup  bender	GF20		Bending round steel diameter: 4-20mm Working disc diameter: 320mm Bending speed of main axis: 25-30 times /minute    Motor power:2.2KW, 380V Machine dimension: 800×550×850mm Packing size: 860*600*1020mm NW:135kg GW:150kg
Stirrup  bender	GF20A  with  measurement		Bending round steel diameter: 4-20mm Working disc diameter: 320mm Bending speed of main axis: 25-30 times/minute Motor power:2.2KW, 380V Machine dimension: 800×550×850mm Packing size: 860*600*1020mm NW:135kg  GW:150kg
Stirrup  bender	GF32		Rated bending capacity:φ32mm  Max.  bending angle:200°  Speed of main shaft:18 r/min  Motor power:3kw  Overall size:670×670×780mm  Gross weight:250kg







Main features of stirrup bender



1. Convenient use: perfect safety performance, standard angle, fast speed, light and handy.

2. Easy Operation: one man can operate it once switch on the power.

3. Angle Variation Freely: in the range of 1 - 180 degree.

4. Fast Speed: rotate speed is 20-25 times/min.

5. Convenient of range adjustment: just need to shift induced magnet.



QC for stirrup bender

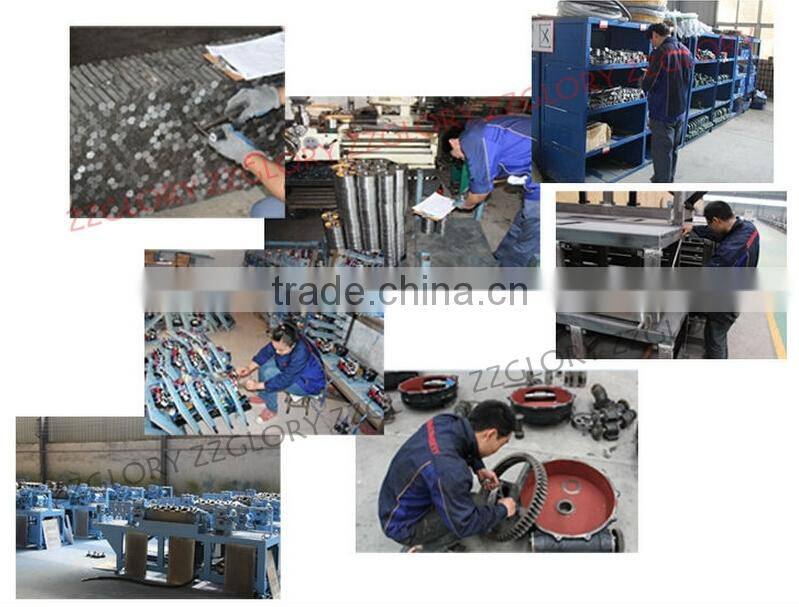

Stirrup bender process line





 Stirrup bender package and delivery









Perfect service



Pre-sale Service

1.Supply item design,process design.

2.Help you to chose the fit machine.

3.Making the machine according to your requirement.

Sale Service

1.Acceptance equipment together with you.

2.Help you to make the method statement and the details of the process.

After Service

1.Guarantee for a year.

2.Quality problem,we will send you the accessories.

3.Free repair whole using life(without the freight and accessories charge).
