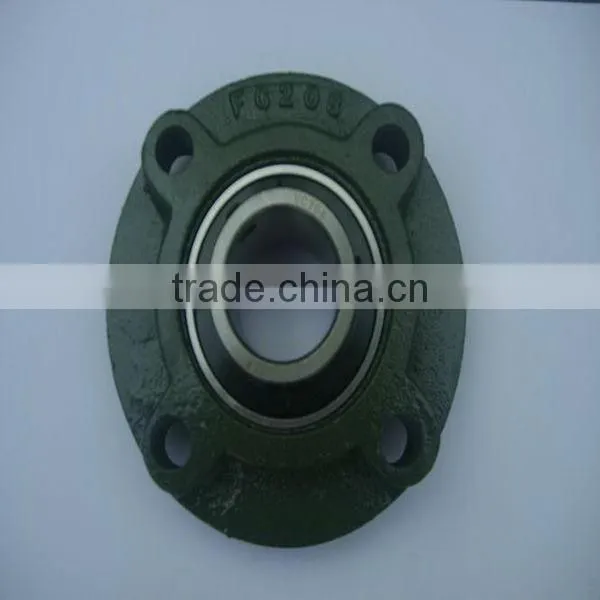

UCFC217 Insert Spider Bearing

UCFC217 Insert Spider Bearing thumbnail-1
UCFC217 Insert Spider Bearing photo-1
US$ 0.5 - 300 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Bore Size:
5, 300
Brand Name:
HHZC
Model Number:
UCFC217
Contact Supplier Request Quote Chat Now
Nantong Haihui Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Bore Size 5, 300
Brand Name HHZC
Model Number UCFC217
Place of Origin Jiangsu, China

Pillow block bearing is a kind of bearing that looks like a small ball bearing that has a casting pedestal or a pressed steel plate and a double seal. If you will look closely inside it, you will see that the pillow block bearings is very much the same as the other kinds of bearing like the deep groove ball bearings. The only difference is that is you will look closely at the outer ring of the pillow block bearings, you can see that it has section balls which is best use with the concave part of the bearing pedestal.



Pillow blocks are usually mounted in cleaner environments & generally are meant for lesser loads of general industry. These differ from "plummer blocks" which are bearing housings supplied without any bearings & are usually meant for higher load ratings & corrosive industrial environments. However the terms pillow-block & plummer-block are used interchangeably in certain parts of the world



Product information:



                                                      UCFC217 insert spider bearing

Bearing
No.		 Dimensions    mm
inch		 Bolt Size
mm
inch
d a p e i s j k g f z B n
UCFC201
UCFC201-8		 12
1/2		 100
3-15/16		 78
3-5/16		 55.1
2-11/64		 10
15/32		 12
15/32		 5
13/64		 7
9/32		 20.5
13/16		 62
2.4409		 28.3
1-1/8		 31
1.2205		 12.7
0.500		 M10
3/8
UCFC202
UCFC202-9
UCFC202-10		 15
9/16
5/8		 100
3-15/16		 78
3-5/16		 55.1
2-11/64		 10
15/32		 12
15/32		 5
13/64		 7
9/32		 20.5
13/16		 62
2.4409		 28.3
1-1/8		 31
1.2205		 12.7
0.500		 M10
3/8
UCFC203
UCFC203-11		 17
11/16		 100
3-15/16		 78
3-5/16		 55.1
2-11/64		 10
15/32		 12
15/32		 5
13/64		 7
9/32		 20.5
13/16		 62
2.4409		 28.3
1-1/8		 31
1.2205		 12.7
0.500		 M10
3/8
UCFC204
UCFC204-12		 20
3/4		 100
3-15/16		 78
3-5/16		 55.1
2-11/64		 10
15/32		 12
15/32		 5
13/64		 7
9/32		 20.5
13/16		 62
2.4409		 28.3
1-1/8		 31
1.2205		 12.7
0.500		 M10
3/8
UCFC205
UCFC205-13
UCFC205-14
UCFC205-15
UCFC205-16		 25
13/16
7/8
15/16
1		 115
4-17/32		 90
3-35/64		 63.6
2-1/2		 10
15/32		 12
15/32		 6
15/64		 7
9/32		 21
53/64		 70
2.7559		 29.8
1-11/64		 34.1
1.3425		 14.3
0.563		 M10
3/8
UCFC206
UCFC206-17
UCFC206-18
UCFC206-19
UCFC206-20		 30
1-1/16
1-1/8
1-3/16
1-1/4		 125
4-59/64		 100
3-15/16		 70.7
2-25/32		 10
15/32		 12
15/32		 8
5/16		 8
5/16		 23
29/32		 80
3.1496		 32.2
1-17/64		 38.1
1.5000		 15.9
0.626		 M10
3/8
UCFC207
UCFC207-20
UCFC207-21
UCFC207-22
UCFC207-23		 35
1-1/4
1-5/16
1-3/8
1-7/16		 135
2-5/16		 110
4-21/64		 77.8
3-1/16		 11
7/16		 14
35/64		 8
5/16		 9
23/64		 26
1-1/32		 90
3.5433		 36.4
1-7/16		 42.9
1.6890		 17.5
0.689		 M12
7/16
UCFC208
UCFC208-24
UCFC208-25		 40
1-1/2
1-9/16		 145
5-45/64		 120
4-23/32		 84.8
3-11/32		 11
7/16		 14
35/64		 10
25/64		 9
23/64		 26
1-1/32		 100
3.9370		 41.2
1-5/8		 49.2
1.9370		 19
0.748		 M12
7/16
UCFC209
UCFC209-26
UCFC209-27
UCFC209-28		 45
1-5/8
1-11/16
1-3/4		 160
6-19/64		 132
5--13/64		 93.3
3-43/64		 10
25/64		 16
5/8		 12
15/32		 14
35/64		 26
1-1/32		 105
4.1339		 40.2
1-37/64		 49.2
1.9370		 19
0.748		 M14
1/2
UCFC210
UCFC210-29
UCFC210-30
UCFC210-31
UCFC210-32		 50
1-13/16
1-7/8
1-15/16
2		 165
6-1/2		 138
5-7/16		 97.6
3-27/32		 10
25/64		 16
5/8		 12
15/32		 14
35/64		 28
1-7/64		 110
4.3307		 42.6
1-11/16		 51.6
2.0315		 19
0.748		 M14
1/2
UCFC211
UCFC211-32
UCFC211-33
UCFC211-34
UCFC211-35		 55
2
2-1/16
2-1/8
2-3/16		 185
6-1/2		 150
5-29/32		 106.1
4-3/16		 13
33/64		 19
3/4		 12
15/32		 15
19/32		 31
1-7/32		 125
4.9213		 46.4
1-53/64		 55.6
2.1890		 22.2
0.874		 M16
5/8
UCFC212
UCFC212-36
UCFC212-37
UCFC212-38
UCFC212-39		 60
2-1/4
2-5/16
2-3/8
2-7/16		 195
7-11/16		 160
6-19/64		 113.1
4-29/64		 17
43/64		 19
3/4		 12
15/32		 15
19/32		 36
1-27/64		 135
5.3150		 56.7
2-15/64		 65.1
2.5630		 25.4
1.000		 M16
5/8
UCFC213
UCFC213-40
UCFC213-41		 65
2-1/2
2-9/16		 205
8-5/64		 170
6-11/16		 120.2
4-47/64		 16
5/8		 19
3/4		 14
35/64		 15
19/32		 36
1-27/64		 145
5.5118		 55.7
1-3/16		 65.1
2.5630		 25.4
1.000		 M16
5/8
UCFC214
UCFC214-42
UCFC214-43
UCFC214-44		 70
2-5/8
2-11/16
2-3/4		 215
8-15/32		 177
6-31/32		 125.1
4-59/64		 17
43/64		 19
3/4		 14
35/64		 18
19/32		 40
1-37/64		 150
5.9055		 61.4
1-13/32		 74.6
2.9370		 30.2
1.189		 M16
5/8
UCFC215
UCFC215-45
UCFC215-46
UCFC215-47
UCFC215-48		 75
2-13/16
2-7/8
2-15/16
3		 220
8-21/32		 184
7-1/4		 130.1
5-1/8		 18
23/32		 19
3/4		 16
5/8		 18
19/32		 40
1-37/64		 160
6.2992		 62.5
2-15/32		 77.8
3.0630		 33.3
1.311		 M16
5/8
UCFC216
UCFC216-49
UCFC216-50
UCFC216-51		 80
3-1/16
3-1/8
3-3/16		 240
9-29/64		 200
7-7/8		 141.4
5-9/16		 18
23/32		 23
29/32		 16
5/8		 18
19/32		 42
1-21/32		 170
6.6929		 67.3
2-21/32		 82.6
3.2520		 33.3
1.311		 M20
3/4
UCFC217
UCFC217-52
UCFC217-53
UCFC217-55		 85
3-1/16
3-5/16
3-7/16		 250
9-27/32		 208
8-3/16		 147.1
5-51/64		 18
23/32		 23
29/32		 18
23/32		 20
25/32		 45
1-25/32		 180
7.0866		 69.6
2-3/4		 85.7
3.3740		 34.1
1.343		 M20
3/4
UCFC218
UCFC218-56		 90
3-1/2		 265
10-7/16		 220
8-21/32		 155.5
6-1/8		 22
55/64		 23
29/32		 18
23/32		 20
25/32		 50
1-31/32		 190
7.4803		 78.3
3-3/32		 96
3.7795		 39.7
1.5630		 M20
3/4



Work Shop:

UCFC217 insert spider bearingUCFC217 insert spider bearingUCFC217 insert spider bearing



Canton Fair Show:

UCFC217 insert spider bearing
