HARD FLOOR CAMPER TRAILER -----X-trail (COMPLY WITH ADR)
110% OFF ROAD ALL TERRAIN
Fully water & dust proof and Anti-rust
TWO ALUMINUM FRONT BOX!!
Technical Parameter
Tare mass(Kg) 1060
ATM(Kg) 2000
Wheel base(mm) 2850
Wheeltrack(mm) 1500
Coupling compression 2000kg
People living number 4~5
Overall measurements 4830×1905×1600mm
Box size 2245x1700x600mm
Basic configuration
Chassis
Fully hot dip galvanized chassis and internal frame-zincanneal side plate
Adjustable drop down rear stabilizer legs
10 inch solid swing up jockey wheel
16 inch tyres and 6 stud rims 265/75R16 including spare tyre
Frame
Two storage room for battery with battery holder
Off road overrun couplings with free rotate polyblock hitch
Stainless steel floor holder with 4 adjustable stabilizer legs
Power coating for trailer side plate
20mm thick Fiberglass floor with honeycomb inside
Quick erect hard floor fold out with gas strut assist
2mm Alu checker plater for floor
Suspension
Fully independent coil spring suspension
Eccentric bolt for toe-in & toe-out adjust
Double action shock absorbers
Nylon band restrain for spring over rebound
Brake
10 inch drum brakes with mannual SS cable brake
6 studs hub with PCD 139.7mm
Parallel stub with heavy duty bearing
10mm thick stamped safety chain
Kitchen
Full stainless steel external slide out kitchen holder and wind shield
110L stainless steel water tank with food-quality approved water pipe
Copper tap for water outlet together with lockable water filler
4 eyes burners and stainless steel sink (Customer supply,AGA)
HDG steel gas bottle holder and fuel tank holder
Food qaulity water pipe with copper connector and tap

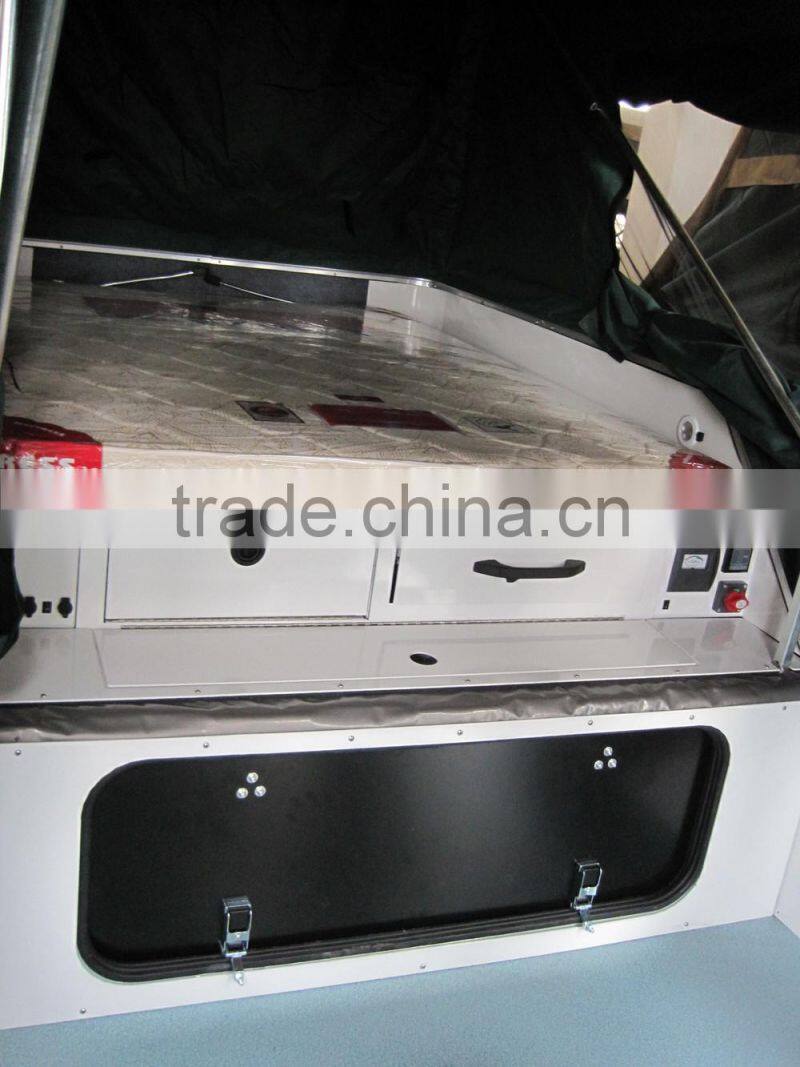

Internal
Huge inner spring mattress @ 110mm thick
Gas struts assisted lift up bed base
Storage lockers(left) and slide out internal drawers(right)
Felt glued for the storage room under bed board
4mm Aluminum decoration plate with white power coating
Electric Circuit
Anderson plug for battery charging from the tow vehicle
12V electric wiring and each circuit with fuse
Round 7 pin plug for the road indication/tail lights
12V twin water proof socket for fridge
Electrical 12V water pump
Locakable water filler & water indicator
LED Side indicator and tail lights
Battery Isolator for all circuits
2 x LED Reading light

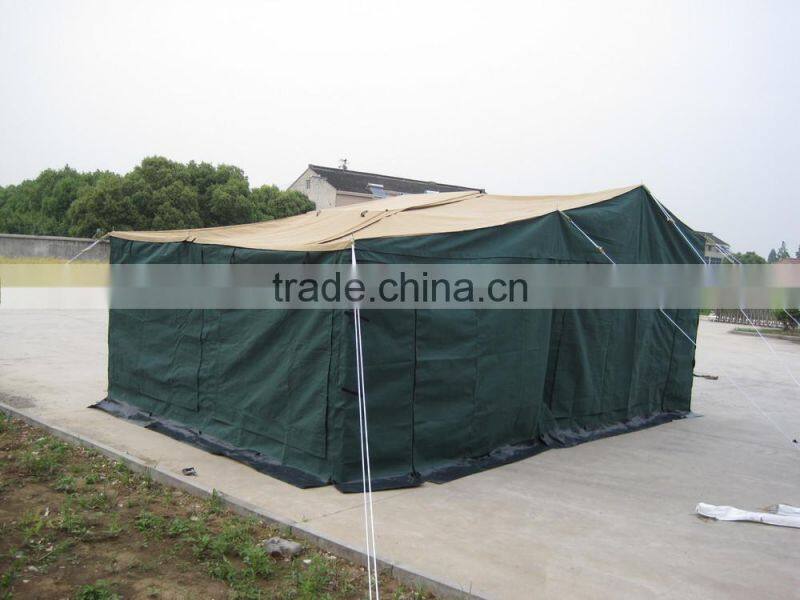

Tent
370gsq ripstop fully water proof polyester/ cotton canvas
2.3m wide annex and full enclosed wall
Midge mesh screens and windows

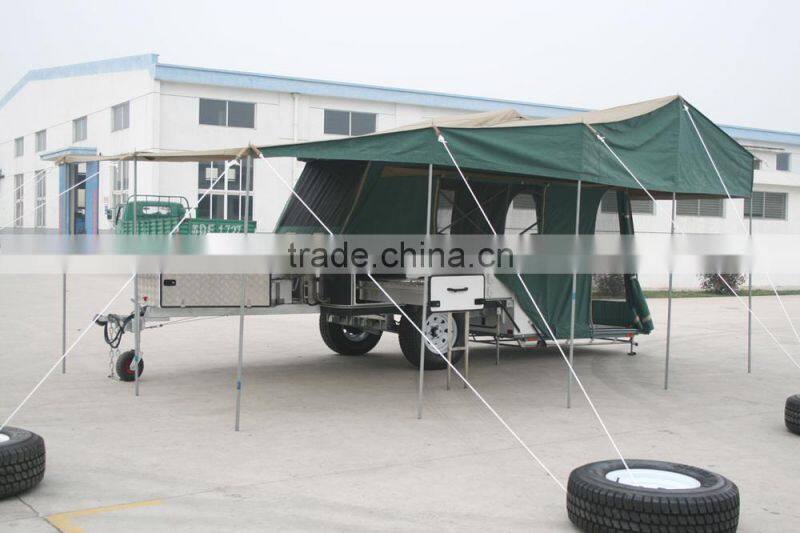

Fully enclosable awning with walls extends over kitchen and storage area
Galvanized awning poles and pegs supplied
We are camper trailer factory , and customer's design is available here!!
