To solve your separation problems with the help of Double deck separator equipment
Features
1. Outlet of our Double deck separator equipment can be adjusted to any direction.
2. Stainless steel 304 sieves with long service life.
3. Easy to change sieves, which just only need 3-5 minutes.
4. Good sealing, no dust flying and pollution .
5. Skilled technology, stable structure, high performance at a good price.
6. Special customization is accepted.

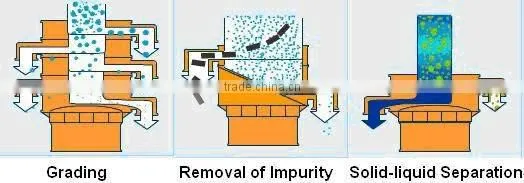

Functions
1. Grading
Each of our Double deck separator equipment can screen and separate precisely and continuously,the Multi—layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Remove the impurity
The Double deck separator equipment can quickly separate a few oversize or undersize particles from a quantity of materials.
3. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi—layer type into different grades.
Structure picture,
Specifictions,
7 standard models can be offered to meet your different capacities,
Model |
Diameter |
Screen surface |
Screen opening |
Power |
Deck |
|
(mm) |
Diameter |
Area |
(kw) |
|||
(mm) |
(m2) |
|||||
HY-400 |
400 |
360 |
0.1017 |
5-500 mesh |
0.18 |
1-4 |
HY-600 |
600 |
560 |
0.2461 |
0.25-0.55 |
1-4 |
|
HY-800 |
800 |
760 |
0.4534 |
0.55-0.75 |
1-4 |
|
HY-1000 |
1000 |
930 |
0.6789 |
0.75-1.5 |
1-4 |
|
HY-1200 |
1200 |
1130 |
1.0023 |
1.10-1.75 |
1-4 |
|
HY-1500 |
1500 |
1430 |
1.6052 |
1.50-2.20 |
1-4 |
|
HY-1800 |
1800 |
1730 |
2.3494 |
2.20-3.0 |
1-4 |
|

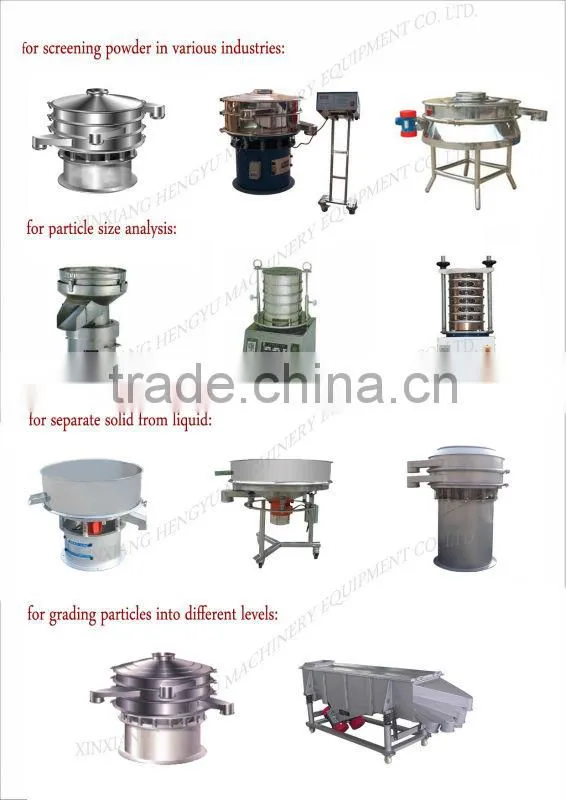

Different types of our separator equipment,
Tell us three questions, best models machine offered for you,
1. The specific name of your material?
2. The wire screen mesh sizes you needed??
3. The production capacity per hour you wanted??
Write e-mail to us now, we are always in service for you!
