stainless steel palm oil vibration sieve | ||||||||||||||||||||||||||||||||
General information | ||||||||||||||||||||||||||||||||
Type |
circular type |
|||||||||||||||||||||||||||||||
Diameter |
1000mm |
|||||||||||||||||||||||||||||||
Layer |
single layer |
|||||||||||||||||||||||||||||||
Material |
parts contacting with screened material are stainless steel |
|||||||||||||||||||||||||||||||
Function |
removal of oversize in any liquid |
|||||||||||||||||||||||||||||||
Range of mesh |
5-500 mesh |
|||||||||||||||||||||||||||||||
Material of screen |
stainless steel 304 |
|||||||||||||||||||||||||||||||
|
Features |
1. Large processing capacity. 2. Open design and don't have dust cover that observe materials on screen surface conveniently. 3. Using new “Z” type screen frame we designed, single screen effectively avoid friction of the working and supporting screen. 4. Vibrations keep the mesh constantly free from residues and enable the machine to work 24/7, with brief operator interventions to clean the meshes on a periodic basis.
|
|||||||||||||||||||||||||||||||

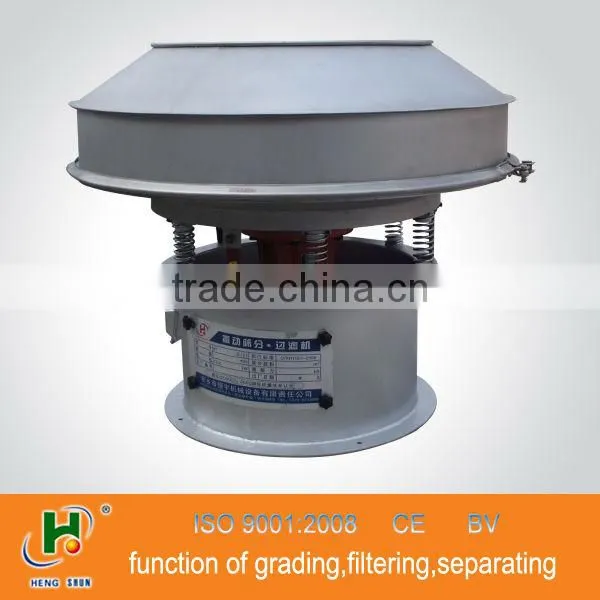

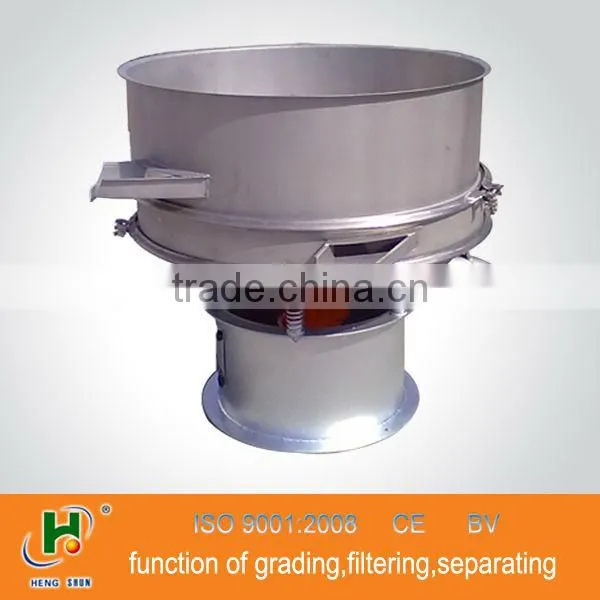

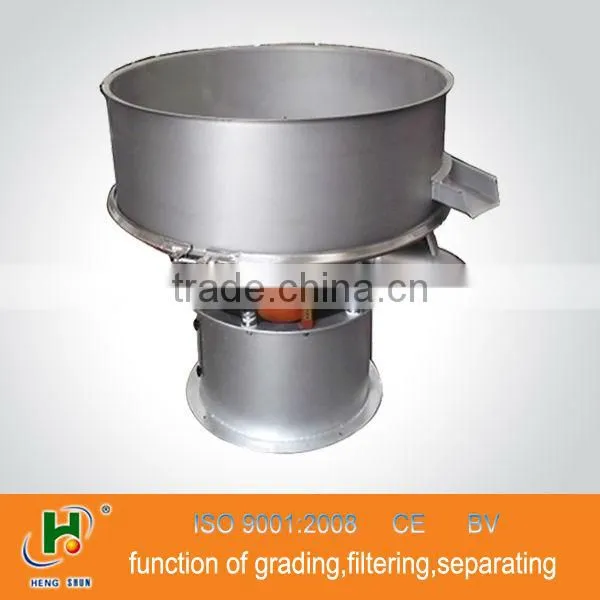

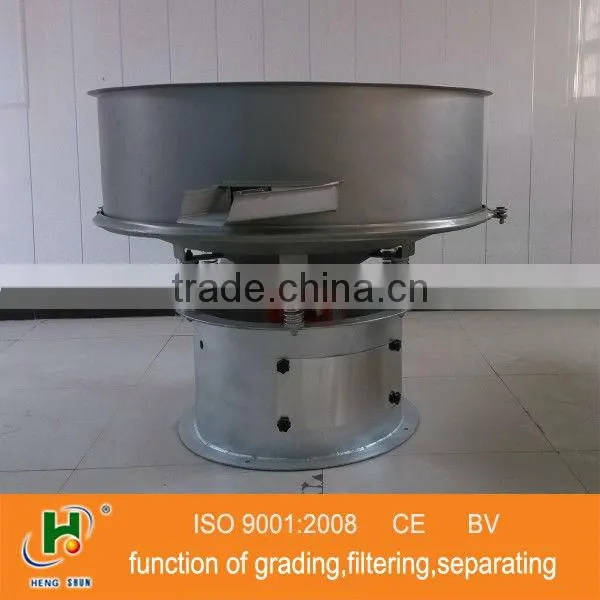

Check photos for learning more about machine | ||||||||||||||||||||||||||||||||

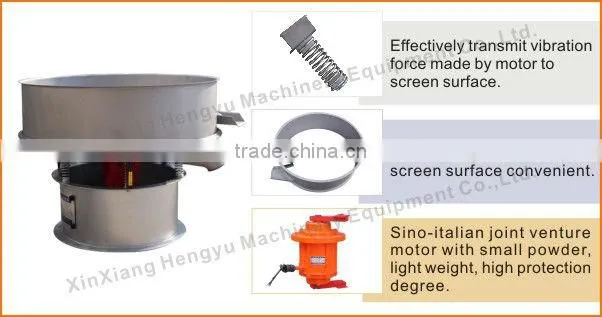

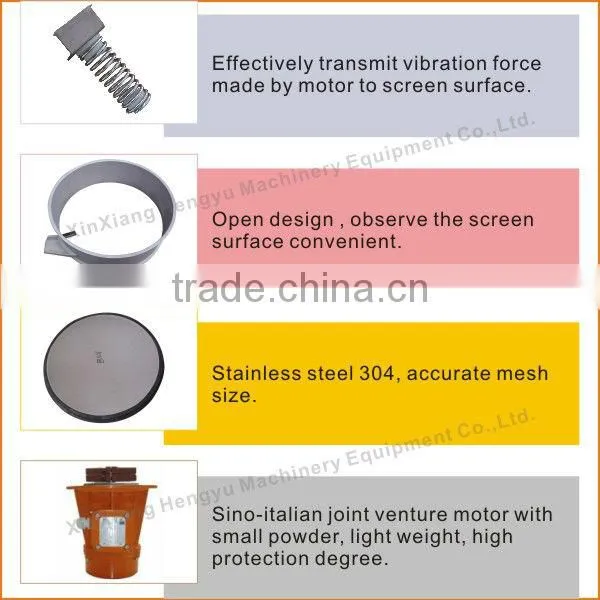

parts introduction of the model of vibration sieve | ||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||
single layer vibration sieve | ||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||
two layers vibration sieve | ||||||||||||||||||||||||||||||||
| | ||||||||||||||||||||||||||||||||
semi-cover vibration sieve | ||||||||||||||||||||||||||||||||
| | ||||||||||||||||||||||||||||||||
Technical Parameter | ||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||
Payment information | ||||||||||||||||||||||||||||||||
Payment way |
T/T, L/C, Western Union, Escrow |
|||||||||||||||||||||||||||||||
Payment term |
30% advanced + 70% be paid before shipping |
|||||||||||||||||||||||||||||||
30% advanced by T/T + L/C be paid the rest | ||||||||||||||||||||||||||||||||
100% advanced for sample | ||||||||||||||||||||||||||||||||
Package information | ||||||||||||||||||||||||||||||||
Weight |
110kg (approx.) |
|||||||||||||||||||||||||||||||
Volume |
1.1CBM |
|||||||||||||||||||||||||||||||
Package |
Carton case for spare parts |
|||||||||||||||||||||||||||||||
Plywood case for machine | ||||||||||||||||||||||||||||||||
Warranty | ||||||||||||||||||||||||||||||||
Warranty period |
It is 12 months since the using of date for main parts. This warranty expires if the customer or third party carries out inappropriate modification or unjustified repair works. |
|||||||||||||||||||||||||||||||
Suggest matching model | ||||||||||||||||||||||||||||||||
|
If you want to obtain the model of palm oil vibration sieve, you only provide us the following requirement, we will reply in time to meet your demands. (a) The name of materials, granularity, specific gravity, water content, viscosity, temperature. (b) Aim of using: get rid of impurity, filtration, grading, and overall granule and so on. (c) Treatment volume: kg/h, L/h. (d) The specification of screen (mesh or mm). (e) How long is the operation time every day? (f) Others special requirements. For example: heat-resisting, medium-resisting.
| ||||||||||||||||||||||||||||||||
Warmly welcome to visit our factory any time you like it !
