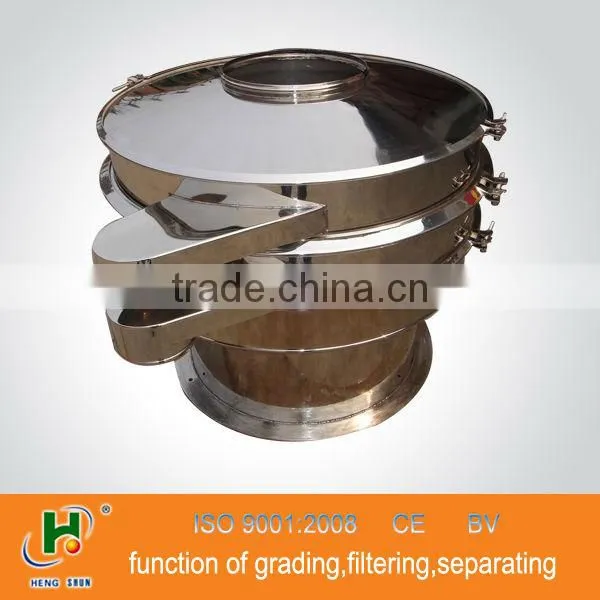

2013 Xinxiang China Reliable Quality Rotary Juice Vibrating Sieve

2013 Xinxiang China Reliable Quality Rotary Juice Vibrating Sieve photo-1
US$ 1,500 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HENG SHUN
Model Number:
HY-1000-1S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China or depends on your request
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1000-1S
Type Other, 2013 Xinxiang China Reliable quality rotary juice vibrating sieve
After-sales Service Provided Engineers available to service machinery overseas

2013 Xinxiang China Reliable quality rotary juice vibrating sieve

2013 Xinxiang China Reliable quality rotary juice vibrating sieve

2013 Xinxiang China Reliable quality rotary juice vibrating sieve



Introduction

2013 Xinxiang China Reliable quality rotary juice vibrating sieve

2013 Xinxiang China Reliable quality rotary juice vibrating sieve is used for remove impurity from powder, grading particles into 2 different levels and filter liquidSeven

years of modifications and technical updates, the wide range available, the

accessories and reliability make the machine is well received in home and aboard.



What advantages of our juice vibrating sieve enjoys?

2013 Xinxiang China Reliable quality rotary juice vibrating sieve

1. Full stailess steel material, which up to food standard.

2. Screen is easy to clean and replace.

3. Mesh is not blocked, can be screened to 500 meshes or 0.028mm

4. Suitable for wet or dry applications

5. Available with carbon steel or stainless steel base

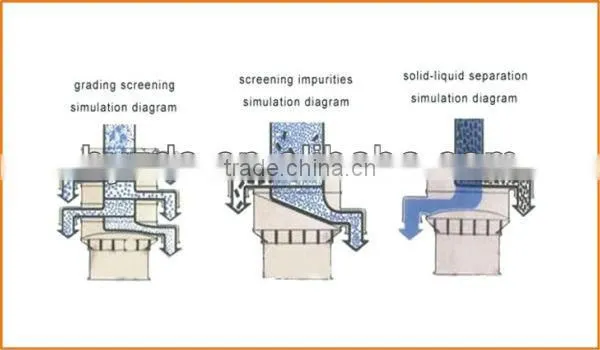

Mainly functions of our juice vibrating sieve

2013 Xinxiang China Reliable quality rotary juice vibrating sieve

2013 Xinxiang China Reliable quality rotary juice vibrating sieve



1. Size classification: separation of particles into groups of comparable size

from the materials.
2. Gravity filtering: removal of solids from liquids and slurries.
3. Product reclamation: removal of the solids from waste product or clarification

of waste liquid for further use.
4. Screening: separation of a few oversize particles from a quantity of materials.
5. Liquid cleaning: cleaning of wastewater or removing the solids from

recalculating liquid.



The Industries of our juice vibrating sieve can be applied to?

2013 Xinxiang China Reliable quality rotary juice vibrating sieve

2013 Xinxiang China Reliable quality rotary juice vibrating sieve



Technical parameters

2013 Xinxiang China Reliable quality rotary juice vibrating sieve

Model

Diameter

Screen surface

Screen opening

Power

Deck

(mm)

Diameter

Area

(kw)

(mm)

(m2)

HY-400

400

360

0.1017

2-600 mesh

0.18

1-4

HY-600

600

560

0.2461

0.25-0.55

1-4

HY-800

800

760

0.4534

0.55-0.75

1-4

HY-1000

1000

930

0.6789

0.75-1.5

1-4

HY-1200

1200

1130

1.0023

1.10-1.75

1-4

HY-1500

1500

1430

1.6052

1.50-2.20

1-4

HY-1800

1800

1730

2.3494

2.20-3.0

1-4

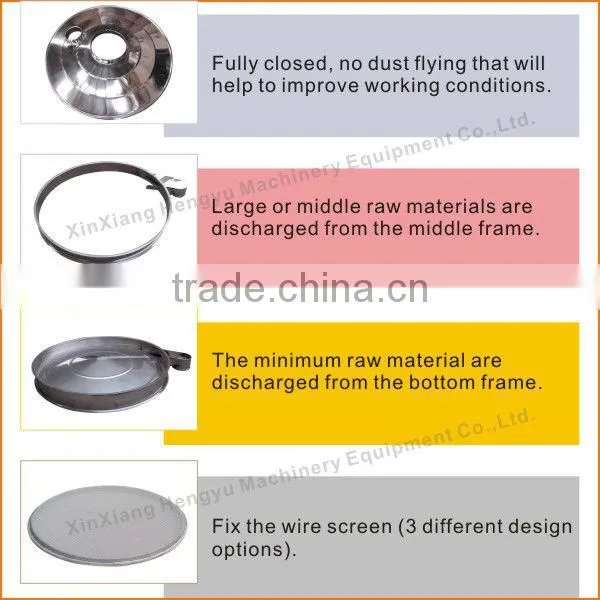

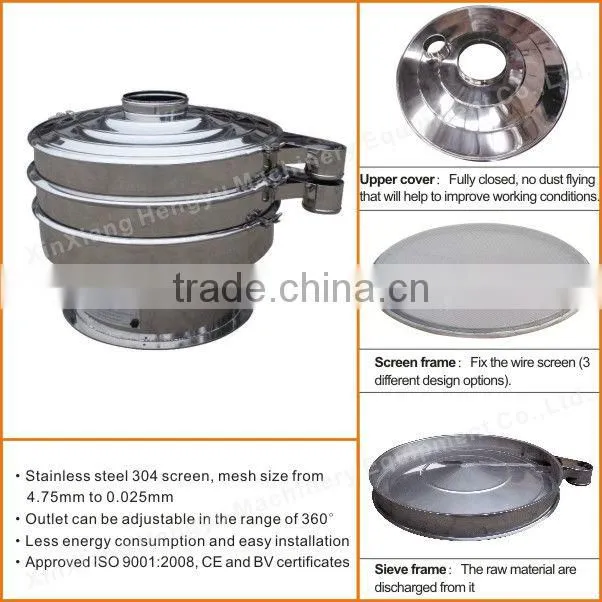

Spare parts and juice vibrating sieve pictures show

2013 Xinxiang China Reliable quality rotary juice vibrating sieve

2013 Xinxiang China Reliable quality rotary juice vibrating sieve



Certificates of our vibrating sieve screen achieved

2013 Xinxiang China Reliable quality rotary juice vibrating sieve

2013 Xinxiang China Reliable quality rotary juice vibrating sieve



By telling us the following information to learn which models of juice vibraing sieve are suitable for you?



1. Material’s name, the density, water content (%)?
2. The necessary capacity you required (per hour)?
3. The wire screen mesh sizes you need?
4. Machine material. Pls choose from the following 3 options:
   A. Carbon steel
   B. The contacting part is SUS304, the other parts is carbon steel.
   C. Full SUS304 or SUS316.



Send e-mail to us today, we are always at your service.

Your Special customization is accepted.
