1.Nut: St47.
2.Locking insert: Sintered metal.
3.Design: Metric ISO thread according to DIN 13 part 27.
4.Design: Metric ISO thread according to DIN 13 part 27.
5.Tolerance class: 5H or ISO 965/III-1980.
Reusable shaft nut with integrated locking device. Special feature of the shaft nut is the locking insert, integrated into the nut. This insert is threaded and thus does not cause any damage. The locking insert is pressed against the shaft thread with a locking screw and thus prevents the nut from turning.

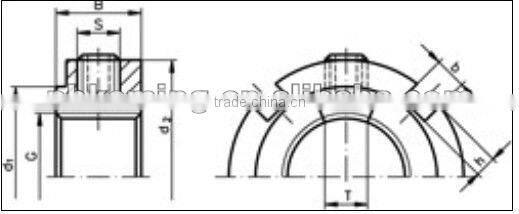

| Thread G | M10 x 0,75 |
| d1 [mm] | 16 |
| d2 [mm] | 20 |
| B [mm] | 9 |
| b [mm] | 3 |
| h [mm] | 2,0 |
| S [mm] | M5 |
| T [mm] | 4 |
| Max. Torque of Safety Bolt [Nm] | 4 |
| Admissible Axial Force [N] | 9800 |
| Weight [g] | 16 |
