Specifications
1) Heat conduction
2) Excellent freezing
3) Even structure with pressure resistance
4) Good mechanical proper

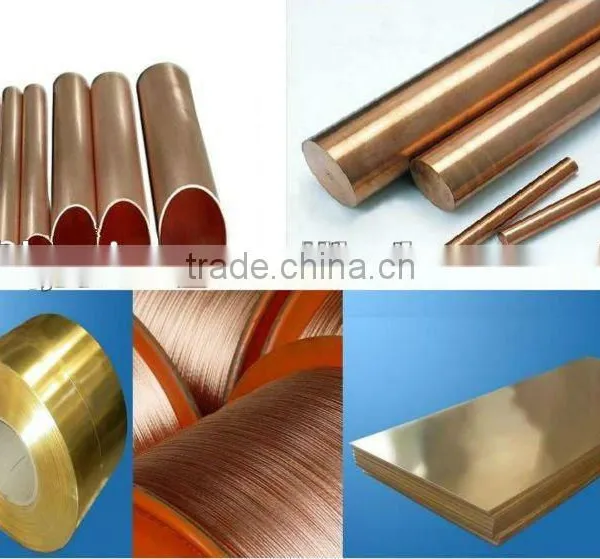

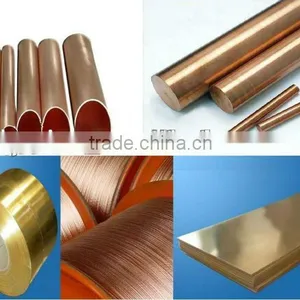

Copper pipe
1.Manufacturer
2.Cu>99.95%
3.TP2/EN/ASTM
4.Quality grade A
Nominal Standard Size inch |
Outside Diameter inch |
Wall thickness and tolerances(inch) |
calculated Weight 1b/ft |
|||||||
Type K |
K |
Type L |
L |
Type M |
M |
Type K |
Type L |
Type M |
||
WT |
Tolerance |
WT |
Tolerance |
WT |
Tolerance |
|||||
1/4" |
0.375 |
0.035 |
0.0035 |
0.030 |
0.003 |
- |
- |
0.145 |
0.126 |
- |
3/8" |
0.500 |
0.049 |
0.005 |
0.035 |
0.004 |
0.025 |
0.002 |
0.269 |
0.198 |
0.145 |
1/2" |
0.625 |
0.049 |
0.005 |
0.040 |
0.004 |
0.028 |
0.003 |
0.344 |
0.285 |
0.204 |
5/8" |
0.750 |
0.049 |
0.005 |
0.042 |
0.004 |
- |
- |
0.418 |
0.362 |
- |
3/4" |
0.875 |
0.065 |
0.006 |
0.045 |
0.004 |
0.032 |
0.003 |
0.641 |
0.455 |
0.328 |
1" |
1.125 |
0.065 |
0.006 |
0.050 |
0.005 |
0.035 |
0.004 |
0.839 |
0.655 |
0.465 |
11/4" |
1.375 |
0.065 |
0.006 |
0.055 |
0.006 |
0.042 |
0.004 |
1.04 |
0.884 |
0.682 |
11/2" |
1.625 |
0.072 |
0.007 |
0.060 |
0.006 |
0.049 |
0.005 |
1.36 |
1.14 |
0.940 |
Listed below are the properties of the Copper pipes tubes manufactured by us that are ideal for heating applications:
Physical Properties: | ||
| ||
Temper |
Tensile strength Kg/mm2 Min. |
Elongation % on 5.65 A Min. |
Annealed |
21.5 |
33 |
As Manufactured |
23.5 |
13 |
Chemical Requirements: | |
| |
Copper (Incl. Silver) |
99.85% Min. |
Phosphorus |
0.013 to 0.05% |
Total Impurities |
0.06% Max. |
