Good Sale JZM500 Mini Electric Cement Mixer

Specifications

JZM500 Mini Electric Cement Mixer:
1.Easy operation and portable
2.Convenient and fast
3.High efficiency
4.CE,ISO

Descriptions of JZM500 Mini Electric Cement Mixer :

JZM series mixer is a gravity type of double-conic reversing drum concrete mixer, the drum transit by gear or friction wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. These mixer services for ordinary construction site, roads, bridge projects and precast plant.

Technical Parameters of JZM500  Mini Electric Cement Mixer :

Model: JZM500

Discharge volume: 500L

Charging volume: 800L

Capacity: 25~30 m³/h

Aggregate sizes: ≤70mm

Rotating speed: 13 r/min

Mixing motor: 7.5kw

Lifting motor: 5.5kw

Pump motor: 0.75kw

Weight: 3000kg

Dimensions (L x W x H): 5200x2065x3200 mm

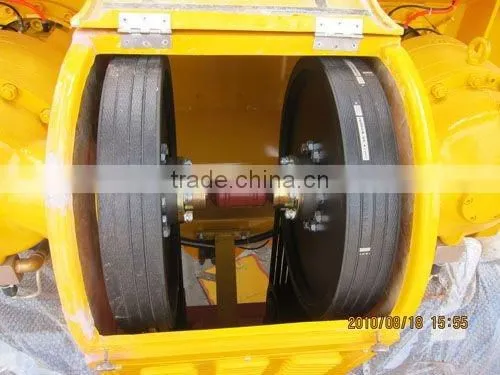

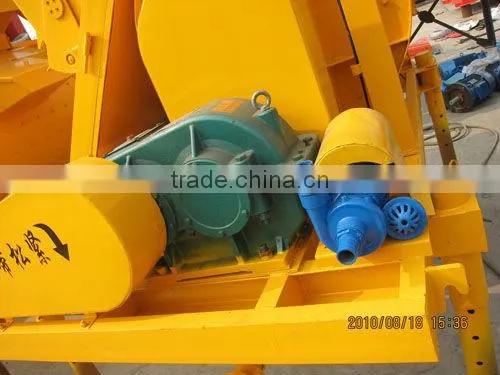

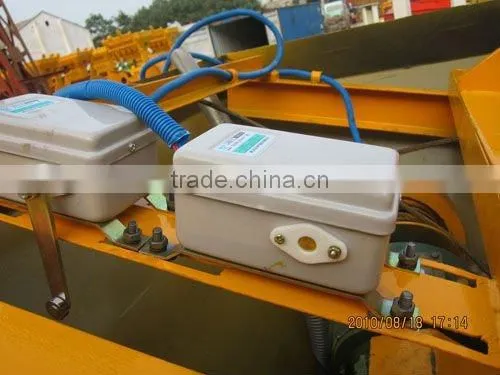

The photos:

Technical Parameters of JZC, JZM Mini Electric Cement Mixer :

Model	JZC350	JZC500	JZM500	JZM750
Discharge volume	350L	500L	500L	750L
Charging volume	560L	800L	800L	1200L
Capacity	10~14 m3/h	18~20 m3/h	25~30 m3/h	30~35 m3/h
Aggregate sizes	≤60m	≤60mm	≤70mm	≤80mm
Rotating speed	14 r/min	13 r/min	13 r/min	12.26 r/min
Max. drag speed	20km/h	20km/h	/	/
Mixing motor	5.5kw	7.5kw	7.5kw	11kw
Lifting motor	4.5KW	5.5kw	5.5kw	7.5kw
Pump motor	0.55kw	0.55kw	0.75kw	0.75kw
Weight	1950kg	2400kg	3000kg	4000kg
Dimensions (L x W x H)	2766x2140x3000 mm	3500x2200x3200 mm	5200x2065x3200 mm	5650x2065x3535 mm
