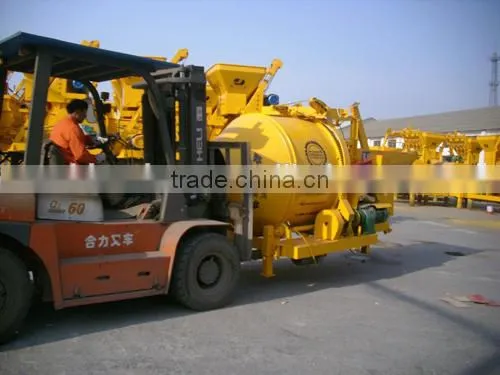

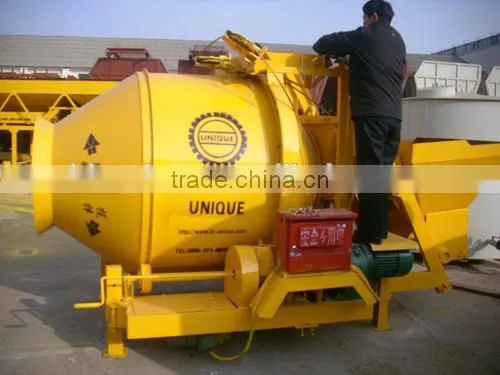

Hot Sale Mobile Diacharg Volume 500L Concrete Mixer JZC500

Specifications

JZC500 500L Concrete Mixer:
1.Extensively used
2.Reasonable structure design
3.Low noise
4.High efficiency

JZC, JZM  Mobile Concrete Mixer



 Descriptions of JZC, JZM Mobile Concrete Mixer :



JZC, JZM series mixer is a gravity type of double-conic reversing drum concrete mixer, the drum transit by gear or friction wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. These mixer services for ordinary construction site, roads, bridge projects and precast plant.



Technical Parameters of JZC, JZM Mobile Concrete Mixer :

Model	JZC350	JZC500	JZM500	JZM750
Discharge volume	350L	500L	500L	750L
Charging volume	560L	800L	800L	1200L
Capacity	10~14 m3/h	18~20 m3/h	25~30 m3/h	30~35 m3/h
Aggregate sizes	≤60m	≤60mm	≤70mm	≤80mm
Rotating speed	14 r/min	13 r/min	13 r/min	12.26 r/min
Max. drag speed	20km/h	20km/h	/	/
Mixing motor	5.5kw	7.5kw	7.5kw	11kw
Lifting motor	4.5KW	5.5kw	5.5kw	7.5kw
Pump motor	0.55kw	0.55kw	0.75kw	0.75kw
Weight	1950kg	2400kg	3000kg	4000kg
Dimensions (L x W x H)	2766x2140x3000 mm	3500x2200x3200 mm	5200x2065x3200 mm	5650x2065x3535 mm
