Hot Sale JN2000 Pan Construction Concrete Mixer

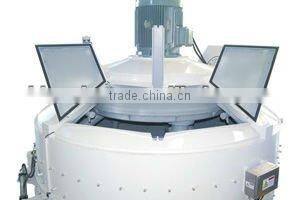

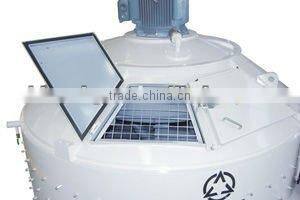

JN2000 Pan Construction Concrete Mixer

Planetary Concrete Mixers widely apply to produce precast concrete, common commercial concrete and high performance concrete. It is suitable for mixing dry hard concrete (roller compacted concrete). It is widely used in the production of building blocks and prefabricated parts, and also can be used to produce of steel fiber reinforced concrete, color concrete and dry mortar, etc.

Features of JN2000  Pan Construction Concrete Mixer :

1. Steady Driving.

The power transmission is realized by a hard surface gearbox

2. High Mixing Efficiency.

The gear box drives the mixing arms to move with complex track, and the mixing is turbulent, then the mixer works more effectively.

3. Homogeneous Mixing.

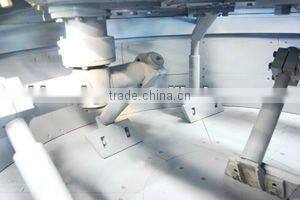

Mixing blades are composed of several groups of mixing arms, which covers the entire mixing region. Both revolution and rotation of mixing blades ensure the homogeneity of the material. As the picture shows, mixing blades’ motion track covers the whole drum after a cycle.

4. Multiple Discharging Method.

According to various demands of customers, the discharging door can be operated hydraulically, pneumatically or manually.

5. Special Designed Water Sprayer

Special designed sprayer makes the water cloud cover more area and ensure the even distribution of the materials.

6. Easy to maintain and no leakage problem. Transmission system (including motor) is located at the top of mixing drum, completely separated from the concrete. It’s convenient for maintenance and there is no leakage problem at the shaft end.

Main Technical Parameters of JN2000 Pan Construction Concrete Mixer :

Model: JN2000

Discharging Volume: 2000L

Charging Volume: 3000L

Diameter of Mixing Drum: 4800mm

Total Weight: 8500kg

Mixing Power: 75kw

Discharging Power: 4kw

Main Technical Parameters of our Pan Construction Concrete Mixer
