Specifications
PLD800/1200/1600/2400/3200/4800Aggregates batching machine
For 3~6 kinds aggregates.
Siemens aggregate weighting system

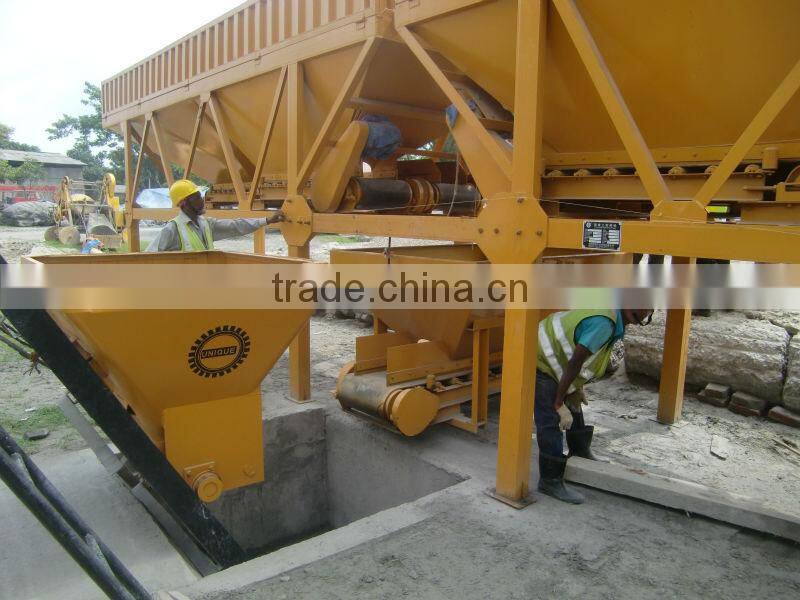

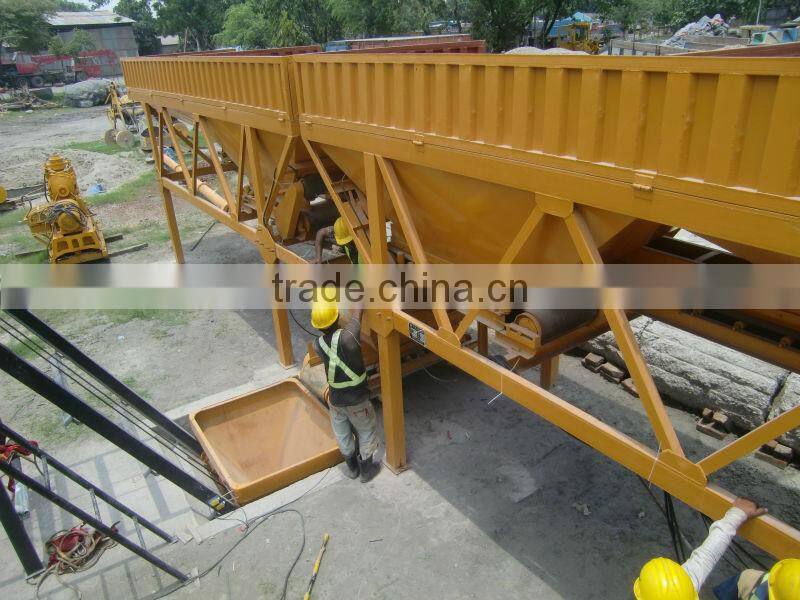

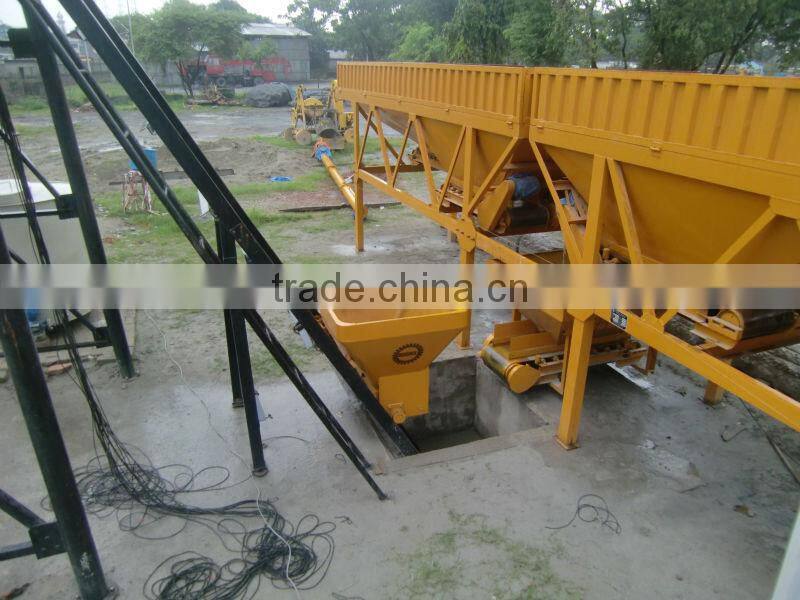

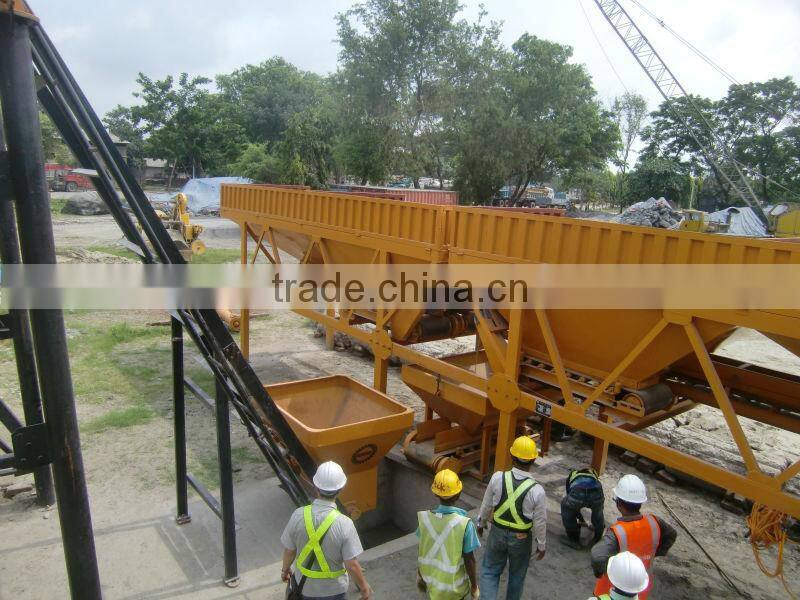

Three hoppers Aggregates storage machine for plant ---Unique Group China
PLD serial concrete batching machine is a kind of equipment with automaticaly batching material on the front desh and using mixer together. It can automatically finish the batching procedures of 2~6 kinds of material(second grade concrete) such as sand, stone, cement according to user’s design.
This serial products adopt electronic weighting, computer control, digital display, wired remote control operation, and such advantages as accurate weighting, high precision batching, quick speed, strong control function and convenient operation. After this serial concrete batching machine combines with relative concrete mixer. Different types and specifications combined concrete mixing station can be formed.
| Items | PLD800 | PLD1200 | PLD1600 | PLD3200 | PLD4800 | ||||||
| Capacity of Weighing Dipper | 0.8m³ | 1.2m³ | 1.6m³ | 3.2m³ | 4.8m³ | ||||||
| Capacity of Storage Dipper | 2*2m³ | 4*2.2m³ | 4*3.7m³ | 3*20m³ | 4*25m³ | ||||||
| Productivity | 48m³/h | 60m³/h | 80m³/h | 160m³/h | 280m³/h | ||||||
| Accuracy of Batching | ±2% | ±2% | ±2% | ±2% | ±2% | ||||||
| Max. Weighing Capacity | 1500kg | 2000kg | 3000kg | 5000kg | 8000kg | ||||||
| Aggregate Bins | 2 | 4 | 4 | 4 | 4 | ||||||
| Feed Height | 3000mm | 3000mm | 3000mm | 3500mm | 3800mm | ||||||
| Belt Conveyor Speed | 1.25m/s | 1.25m/s | 1.25m/s | 1.0m/s | 1.0m/s | ||||||
| Power | 3*3kw | 5*3kw | 5*3kw | 11kw | 15kw | ||||||
| Dimension | 6400x1600x3000mm | 12916x2000x3200mm | 12916x2000x3200mm | 13500x2900x4450mm | 15520x3900x5090mm | ||||||
| Total weight | 2300kg | 4900kg | 5750kg | 12600kg | 13600kg |
Nude package, it can be loaded into the container directly.
we can also make the package if you have special request, please inform us in advance.
