Home > Products > Construction Machine Library > 2013 Hot Sale PLD800 Concrete Batching Machine
2013 Hot Sale PLD800 Concrete Batching Machine
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | Unique | |
| Model Number | PLD800 | Power(W) | 3*3kw | |
| Dimension(L*W*H) | 6400*1600*3000mm | Weight | 2300kg | |
| Certification | ISO | Warranty | More than one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
PLD800 Concrete Batching Machine:1.Accurate weighing
2.High precision batching
3.Strong control function

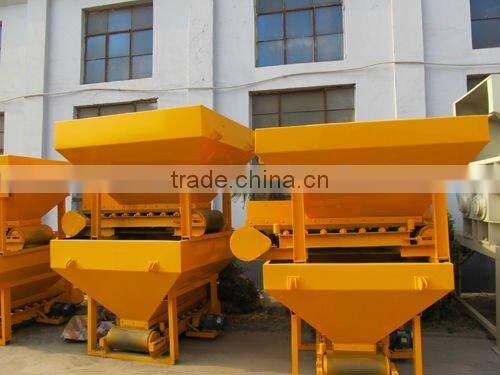

PLD800 Concrete Batching Machine
PLD Series Concrete Batcher is a kind of equipment with automatically batching material on the front desk and using mixer together. It can automatically finish the batching procedures of 3~6 kinds of materials (second grade concrete) such as sand, stone, cement, according to user’s design.
These series products adopt electronic weighing, computer control, digital display, wired remote control operation, and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation. After this series concrete batching machine combines with relative concrete mixer, different types and specifications combined concrete mixing plant can be formed.
Technical Specification of PLD800 Concrete Batching Machine:
Item | PLD800 | PLD1200-III | PLD1200-IV | PLD1600—III | PLD1600-IV |
Capacity of Weighing Hopper(m3) | 0.8 | 1.2 | 1.2 | 1.6 | 1.6 |
Capacity of Storage Hopper(m3) | 2×2 | 3×2.2 | 4×2.2 | 3×3.7 | 4×3.7 |
Productivity(m3/h) | ≥48 | ≥60 | ≥60 | ≥80 | ≥80 |
Accuracy of Batching | ±2% | ±2% | ±2% | ±2% | ±2% |
Max weighing(kg) | 1500 | 20000 | 2000 | 3000 | 3000 |
Material Species of Batching | 2 | 3 | 4 | 3 | 4 |
Feed Height(mm) | 2364 | 3000 | 3000 | 3000 | 3000 |
Belt Conveyor Speed (m/s) | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
Power(kw) | 3×3 | 4×3 | 5×3 | 4×3 | 5×3 |
Total Weight(kg) | 2300 | 3900 | 4900 | 4750 | 5750 |
Dimension(mm) | 6400×1600×3000 | 9600×2000×3200 | 12916×2000×3200 | 9600×2000×3200 | 12916×2000×3200 |
