Hot SS100/100 Building Elevator For Material
- Qingdao
- T/T
You May Like
-
China Good SS120 Electric Elevator For Construction
-
Factory Direct Sell SS120 Construction Elevator Lift
-
2013 Portable SS120 Single Cage Construction Lifter
-
2013 Portable SS120 Elevation Platforms For Construction
-
2013 High Safety SS100/100 Building Construction Lifter
-
Simple SS100/100 Construction Elevator Machine For Material
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | UNQIUE | Model Number | SS100/100 | |
| Rated Loading Capacity(kg) | 1t | Hoisting Speed | 23.5m/min | |
| Max Lifting Height | 130M | Dimension(L*W*H) | 3.1*1.3*2.4m | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
SS100/100 Building Elevator :1.Good stability
2.Novel structure, double cages work independently
3.CE certified
SS100/100 Building Elevator
1. Double cages work independently, using two winches transmission, safe and reliable, more productive.
2. Structural strengthening, head of standard sections with seamless steel pipe, section dimensions 1.2*0.87m
3. SS100/100 products equivalent to the equipment of SS120 series construction hoist.
SS dual cages series construction hoist has the following characteristics:
1. Novel structure, double cages work independently, high work efficiency.
The machine is a dual cage working independently, two hosts can be operated by one person. Working performance is more than twice times as efficient as conventional gantry hoist.
2. Strong security, prevention was made, and fall prevention device equipped with advanced, risk falling phenomenon does not occur.
The hoist is equipped with a discharge was made, fall protection and upper and lower device, equipped with a parachute on a hoist equipment, unexpected break for wire rope hoists safe and secure when docked on the standard section.
3. Long working life, occupied by small, easy to install.
The hoist is with name brand winch, long service life, single column double cage occupied by small, convenient installation, high production efficiency.
| Technical Parameter of SS100/100 Building Elevator | |||
| Item | Unit | Parameter | |
| Basic Installation Height | m | 24 | |
| Attachment Installation Height | m | 80 | |
| Rated Lifting Capacity | Kg | 1000/1000 | |
| Lifting Speed | m/min | 23.5 | |
| Cage Dimension (L*W*H) | m | 3.1*1.3*2.4m | |
| Sectional Dimension Of Bracket | m | 1.2*0.87m | |
| Motor Power | Kw | Single-cage 11.5 Double-cage 23 | |
| Steel Rope Model | 6*37+1-12-170-Right | ||
| Steel Rope Length(Typical) | m | 75 | |
| Total Weight | Single-cage (at 24m) | Kg | 3260 |
| Double-cage (at 24m) | Kg | 4850 | |

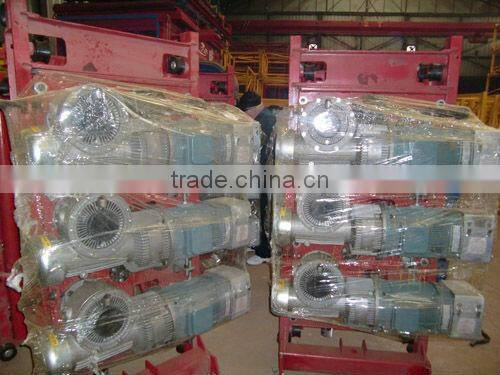

Winches:

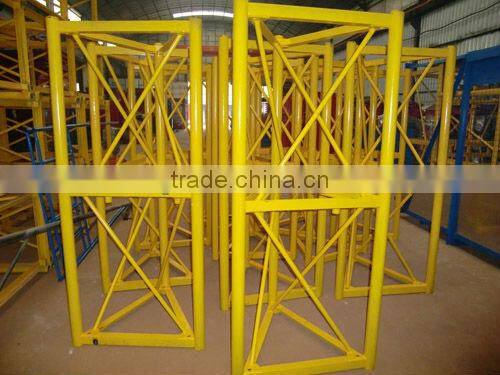

Mast Section:
Customer Visit:
