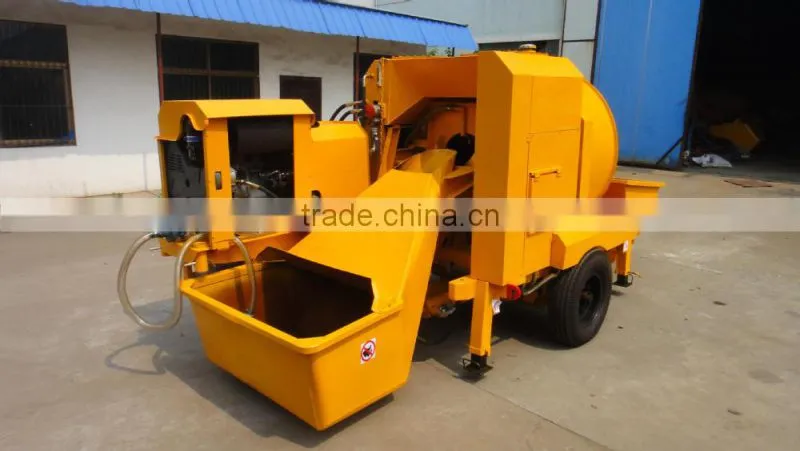

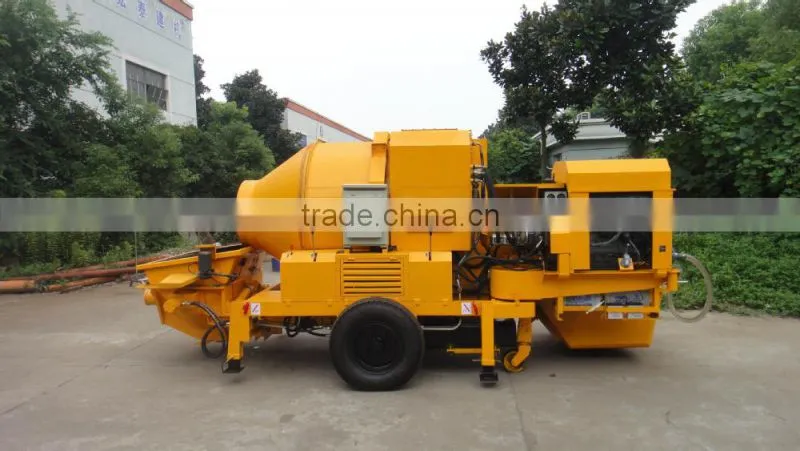

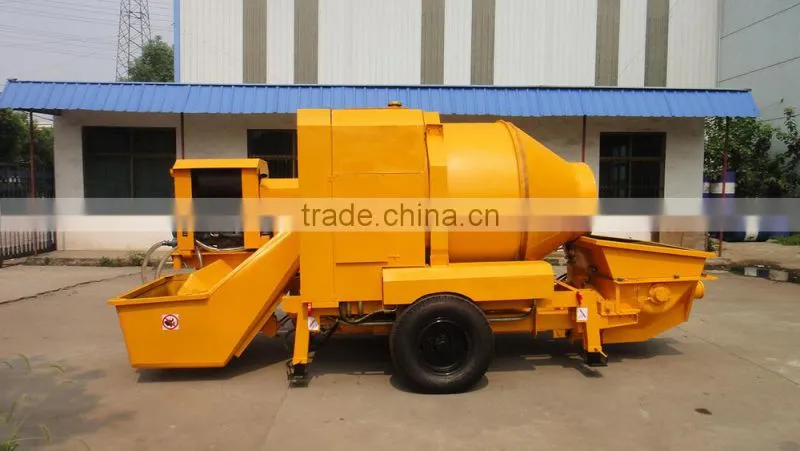

Diesel concrete mixer pump machine with lift hopper
1.Introduction of Unique lightweight Diesel concrete mixer pump machine with lift hopper
Mixing concrete pump is the newest products produced by our company, it is combined by the traditional concrete pump and the mixer together, it is the most suitable for use in four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need the concrete mixer at the scene.
2.The most suitable projects and Diesel concrete mixer pump machine with lift hopper
1.10 layer below the group main building structure
2.building and underground garage floor
3.Civil construction of inclined roof
4.Small bridges
5.Tunnels
6.Water conservancy slope
7.Small river locks and boat lock
8.Electric power communication tower base
9.Small wharf
10.Mine construction
11.Concrete roadway maintenance field sites scattered
12.Highway and road maintenance engineering
Engineering the quantity is less,the commodity concrete batch plant is not willing to do or they do not economic construction,concrete construction project sites mixed.
Mixing concrete pump is with the rapid and flexible, mobile convenience,speed ,labor saving features.
3.Performance Characteristics of Diesel concrete mixer pump machine with lift hopper
1.With the concrete mixer pump two machines combined into a machine to move easily,strong,flexible maneuverability
2.Concrete mixer and pump drive by a worker to make staff and save manual
3.PLC program control in electric control box, stable and reliable, longer life;
4.Feeding, mixing, flip and pumping are all controlled by hydraulic power, automation and saving operation labor
5.Diesel mixer concrete pump specifically designed for export. Particularly suitable for the users in countries and regions of China where it is lack of electricity or it is different voltage or frequency from China(380V/50Hz)
6.The water pump adopts the electromagnetic clutch and a time relay control, automatic adding water according to water timer
7.Manual lubrication systems, fuel efficient and reliable;Independence of the water cooling system, efficient
8.A 20 feet container can be packing one set, lower shipping costs
9.Feeding, water, stirring of Mixer and pumping all controlled by the diesel engine through hydraulic system and PLC implementation, high degree of automation without any electricity.
10.Fast dual-purpose function of one machine with unique, mixer and pump can be used separately, but also can be quickly used in combination;
Diesel type lightweight Diesel engine Diesel concrete mixer pump machine with lift hopper
Item |
Unit |
HBT2008-JZC350 |
HBT1506-JZC350 |
HBT0804-JZC350 |
Pump Max Output |
m3/h |
15 |
15 |
8 |
Theoretical Output |
m3/h |
23 |
23 |
10 |
Max. Pressure on Concrete |
M pa |
8 |
8 |
4 |
Delivery Cylinder |
mm |
180*800 |
180*800 |
180*800 |
Outlet Opening Diameter |
mm |
Φ150 |
Φ150 |
Φ150 |
Diesel Model |
|
F4L912(DEUTZ) |
SL3105 ABK |
CY1115(YAMMAR) |
Diesel Power |
kw |
45 |
35 |
30 |
Max. Diameter of Aggregates |
mm |
40 |
40 |
30 |
Max. Delivery Horizontal Distance |
m |
200 |
200 |
100 |
Max. Delivery Vertical Distance |
m |
40 |
40 |
30 |
Capacity of Charge Hopper |
L |
560 |
560 |
200 |
Capacity of Discharge Hopper |
L |
350 |
350 |
300 |
Length* Width*Height |
mm |
5500*2300*2700 |
5500*2300*2700 |
4120*2100*2600 |
Weight |
kg |
4500 |
4300 |
3000 |
